Removal Procedure

WARNING: This page is about a different variant/trim than selected.

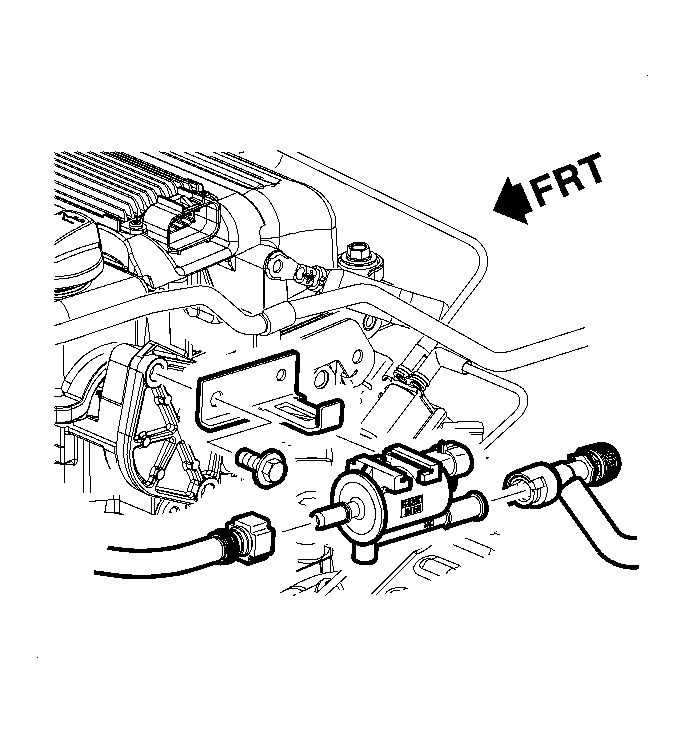

    Fig 1: View Of Evaporative Emission Purge Solenoid
    GM946973Courtesy of GENERAL MOTORS CORP.
    CAUTION: Do not allow smoking or the use of open flames in the area where work on the fuel or EVAP system is taking place. Anytime work is being done on the fuel system, disconnect the negative battery cable, except for those tests where battery voltage is required.
  1. Turn ignition OFF.
  2. Disconnect both purge link quick connects from the evaporative emission (EVAP) purge solenoid.
  3. Disconnect the EVAP purge solenoid harness connector.
  4. Slide the EVAP purge solenoid from the retaining bracket.
