Oil Feed Pipes Removal

WARNING: This page is about a different variant/trim than selected.

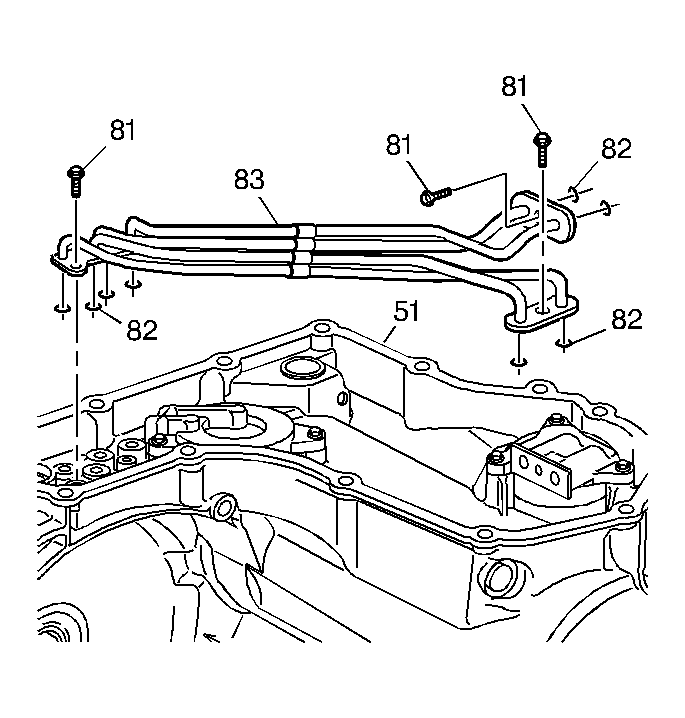

Fig 1: View Of Oil Feed Pipe Assembly

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The feed pipe seal rings (82) are glued into place and should remain with the feed pipe assembly (83). The feed pipe seal rings are reusable.

Remove the four oil feed pipe bolts (81) and remove the oil feed pipe assembly (83).
