Fluid Pan and Gasket Installation

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Inspecting Oil Pan Gasket
    GM25657Courtesy of GENERAL MOTORS CORP.
  1. Inspect the oil pan (88) for cracks, dents or damage to the gasket sealing surface.
  2. Inspect the gasket (87) for cuts or other damage. The bottom pan gasket is reusable if not damaged.
  3. Clean and dry the bottom pan, gasket and magnet (89).

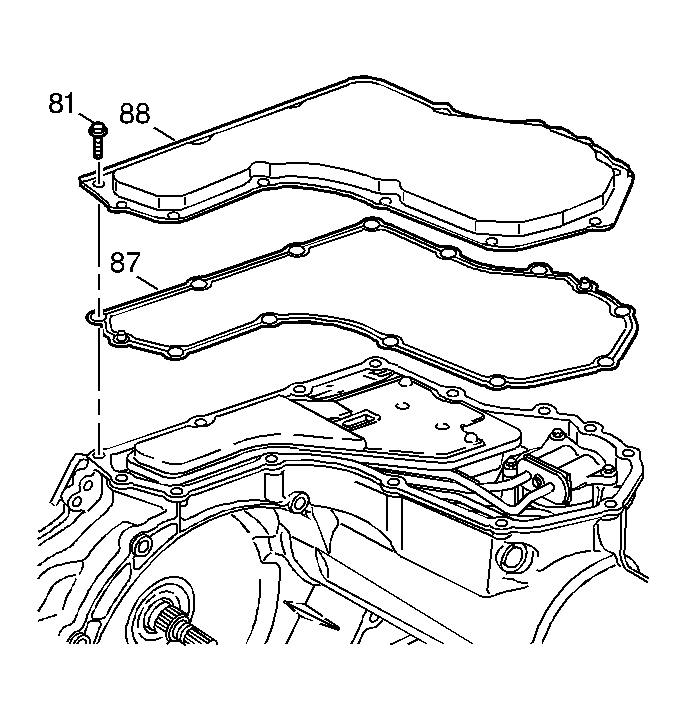

    4. Fig 2: View Of Bottom Pan & Gasket
    GM20163Courtesy of GENERAL MOTORS CORP.
  4. Install the gasket (87) and bottom pan (88) onto the transmission case.
    5. Fig 3: Locating Bottom Pan Bolts
    GM20837Courtesy of GENERAL MOTORS CORP.
  5. Install the twelve bottom pan bolts (81).
    6. Fig 4: Identifying Twelve Bottom Pan Bolts
    GM20323Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Hand start the bolts.

    Tighten:  Tighten the bottom pan bolts to 14 N.m (124 lb in).
