Direct/Coast Clutch and Reaction Gear Set Removal

WARNING: This page is about a different variant/trim than selected.

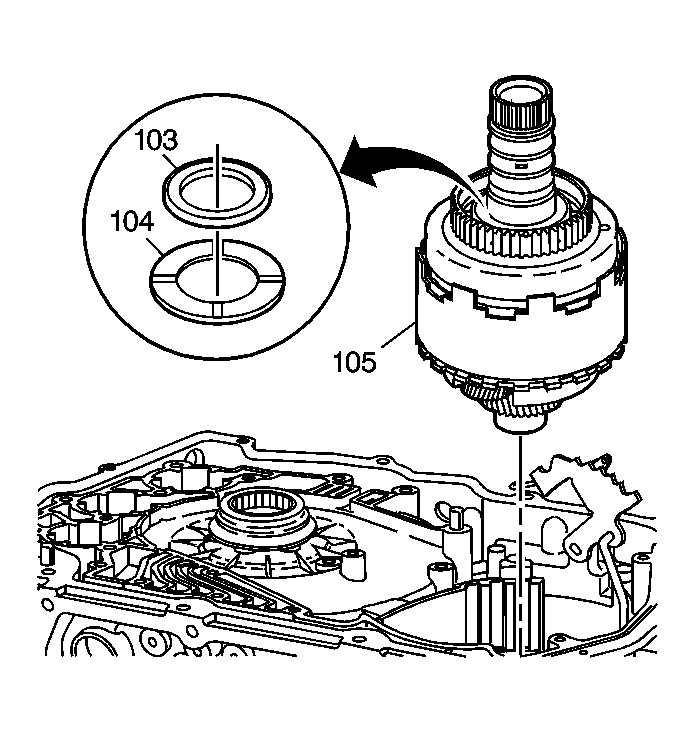

Fig 1: Direct/Coast Clutch & Reaction Gear Set

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Keep the bearing assembly (103) and the selective thrust washer (104) on top of the direct/coast clutch and reaction carrier assembly (105).

Remove the direct/coast clutch and reaction carrier assembly (105).
