Control Valve Assembly and Transmission Fluid Pressure Switch Installation

WARNING: This page is about a different variant/trim than selected.

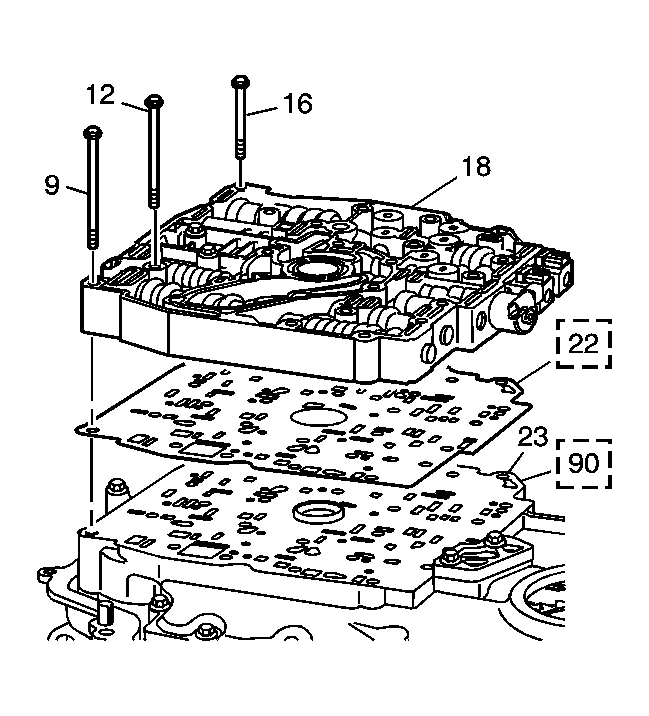

Fig 1: Control Valve Assembly

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The 4T40-E/4T45-E Non-Electronic Range Select Mode models use a spacer plate with 2 identification notches. The 4T45-E models with Electronic Range Select Mode use a spacer plate with 1 identification notch.

Install the control valve body to spacer plate gasket (22) onto the spacer plate (23). Some models use a spacer plate with bonded gaskets (90).
Install the control valve body assembly (18) onto the gasket (22) or spacer plate with bonded gaskets (90).

Fig 2: Identifying 4 Pressure Switch O-Rings

Courtesy of GENERAL MOTORS CORP.

Inspect the transmission fluid pressure (TFP) switch assembly (13) in order to verify the condition and correct location of the 4 pressure switch O-rings.
If necessary replace the pressure switch O-rings.

Fig 3: Locating TFP Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Install the TFP switch assembly (13) onto the control valve body assembly.

Fig 4: Installing Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

Install the 18 control valve body assembly bolts.

Fig 5: View Of Control Valve Body Assembly Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Hand start the bolts.
Tighten: Tighten the bolts to 14 N.m (124 lb in).
