Reverse - Without Electronic Range Select Mode - A/T System Hydraulic Diagram

WARNING: This page is about a different variant/trim than selected.

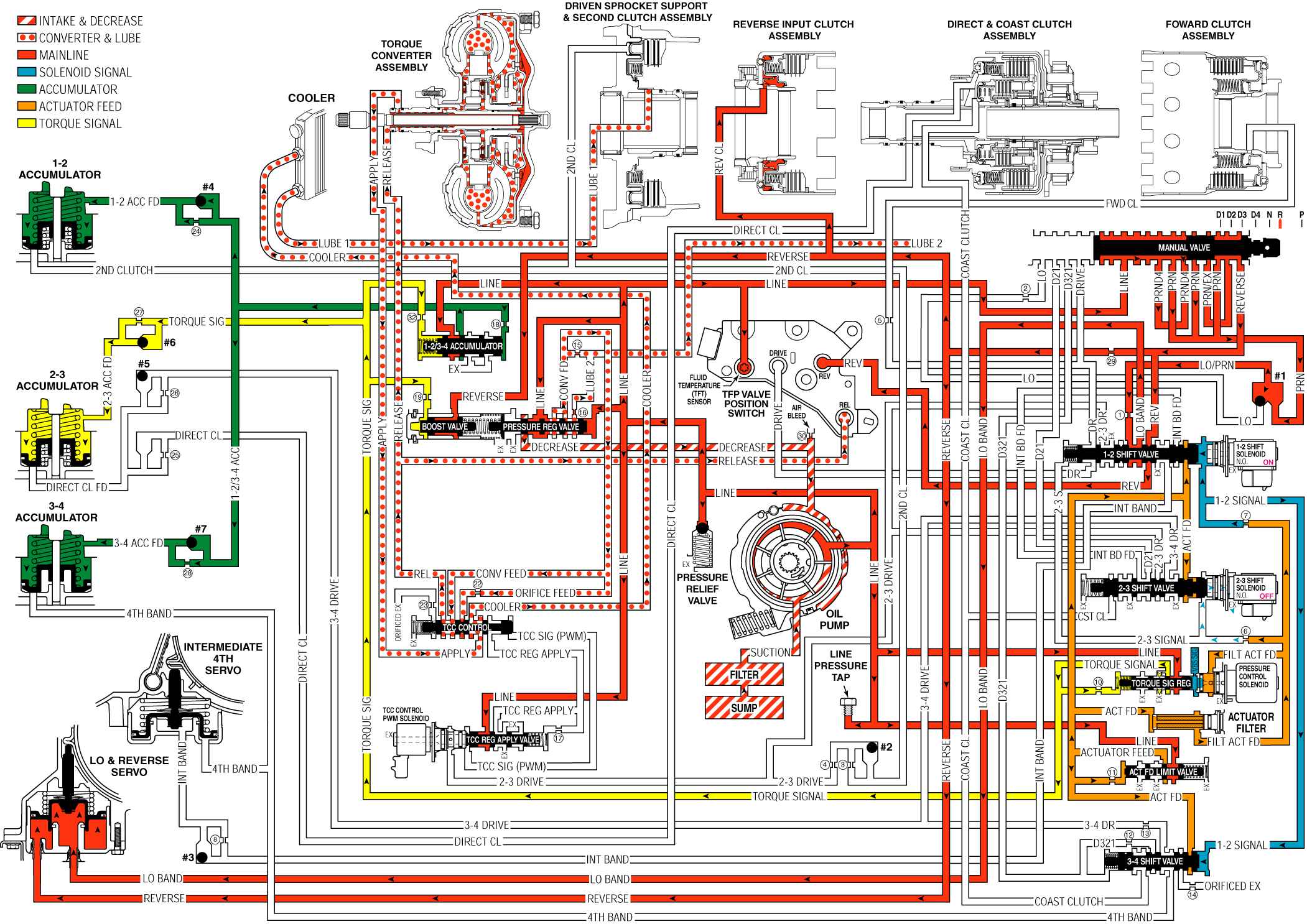

Fig 1: Reverse - Without Electronic Range Select Mode
GM1205838Courtesy of GENERAL MOTORS CORP.
