Instrument Cluster Schematics

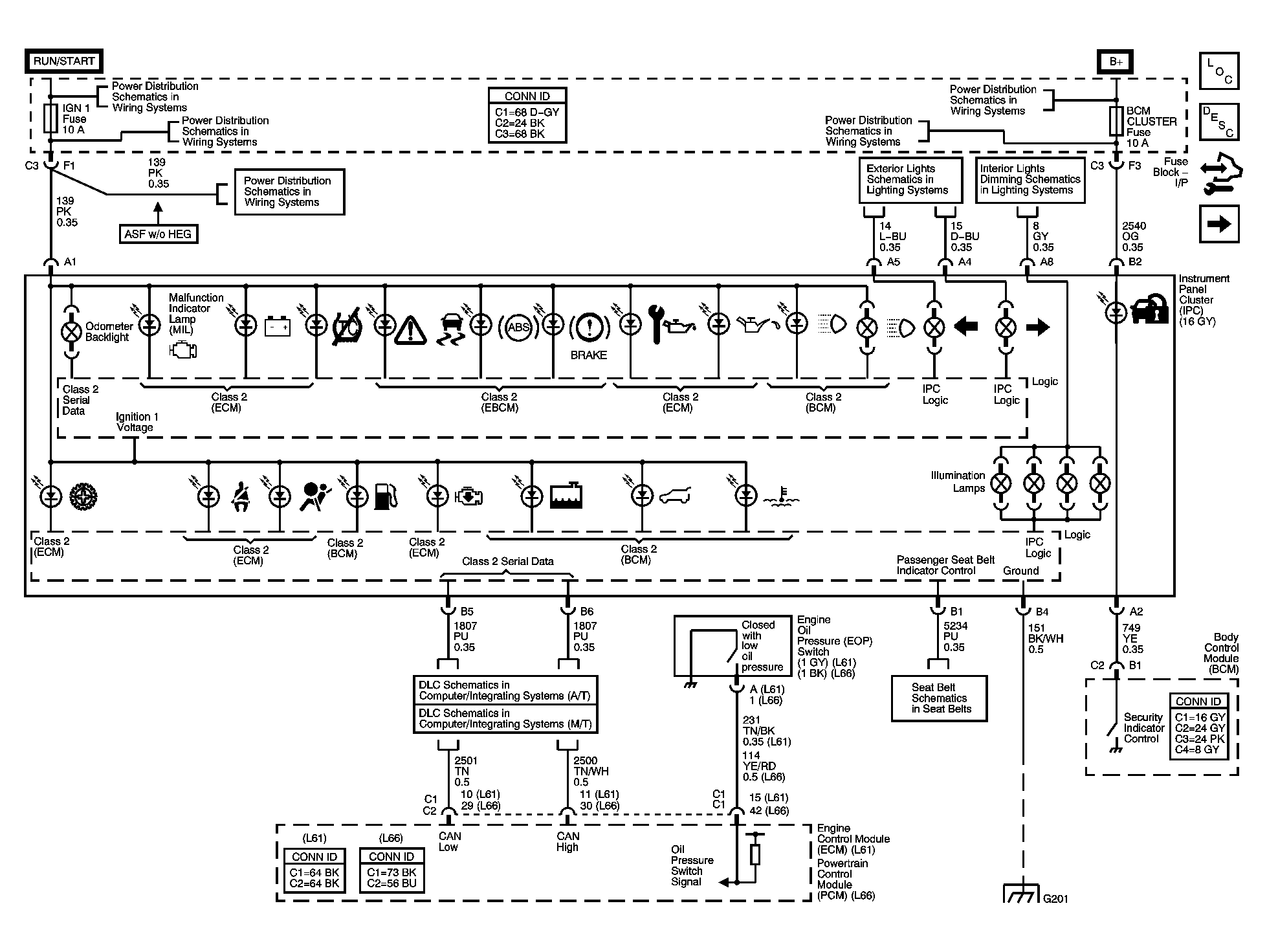

Fig 1: Indicators and Serial Data

GM1584729

Courtesy of GENERAL MOTORS CORP.

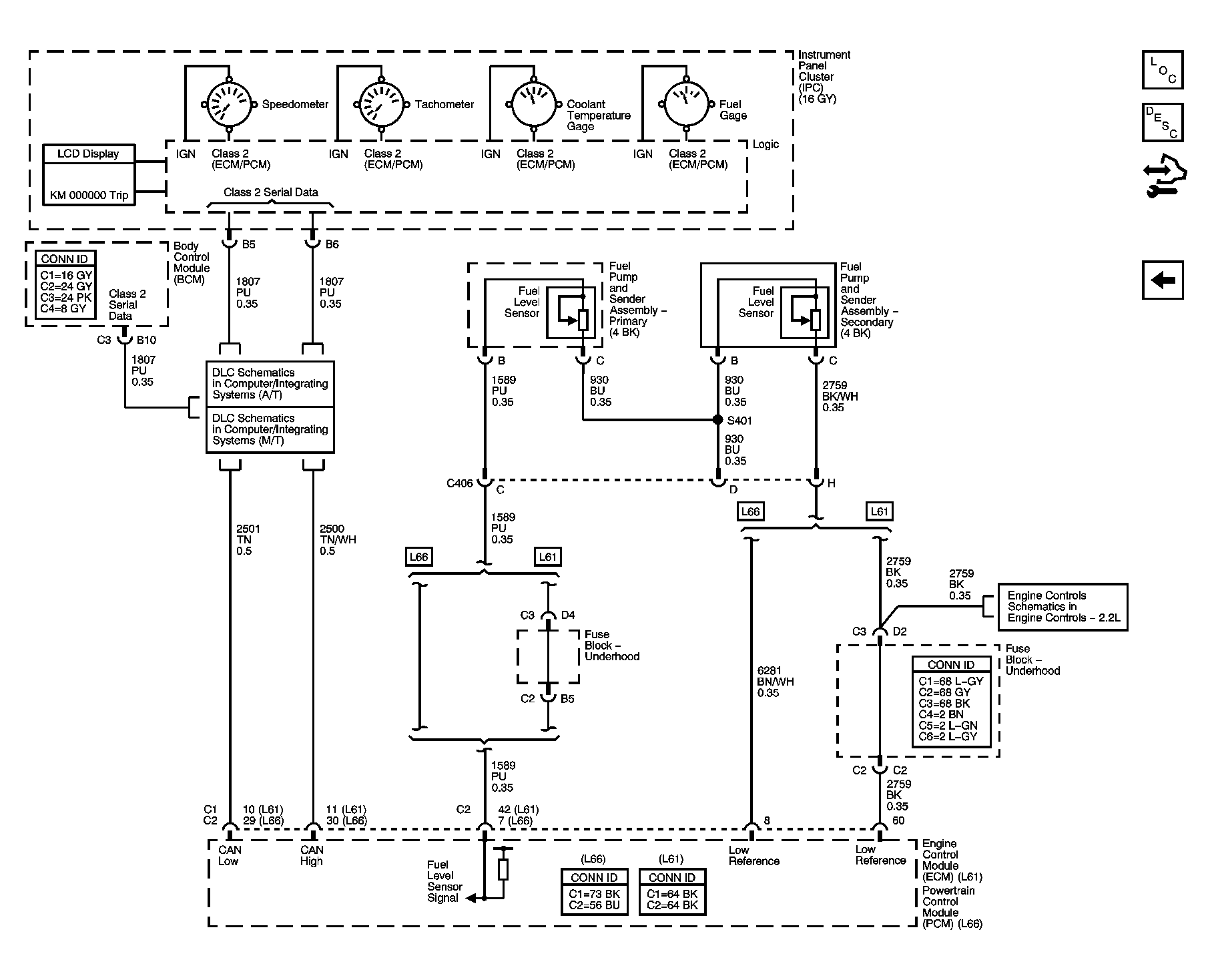

Fig 2: Gages

GM1584730

Courtesy of GENERAL MOTORS CORP.
