Driver Seat Schematics

Fig 1: Driver Power Seat Schematics

GM1586592

Courtesy of GENERAL MOTORS CORP.

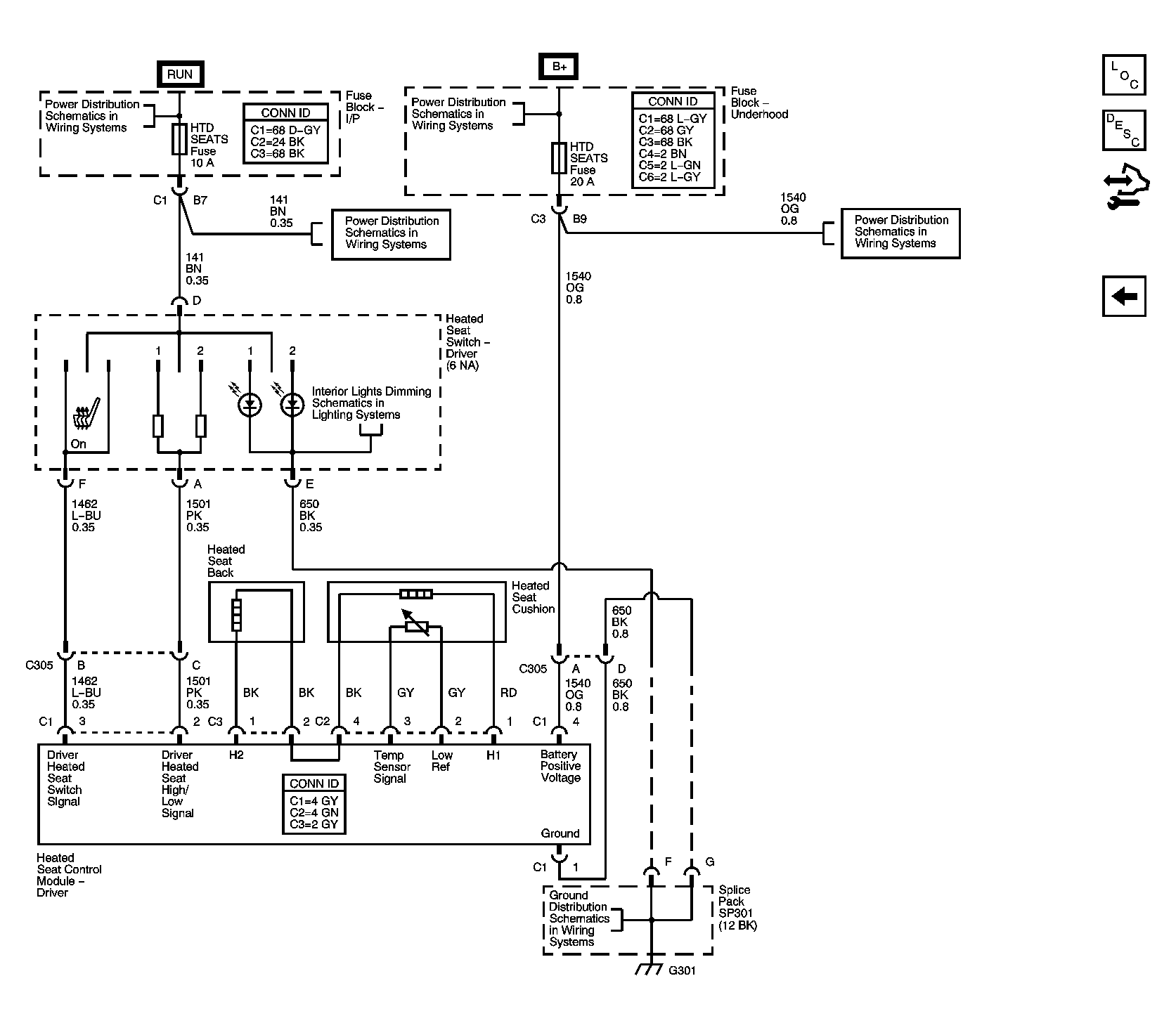

Fig 2: Heated Seat Schematics

GM1586593

Courtesy of GENERAL MOTORS CORP.
