Theft Deterrent System Connector End Views

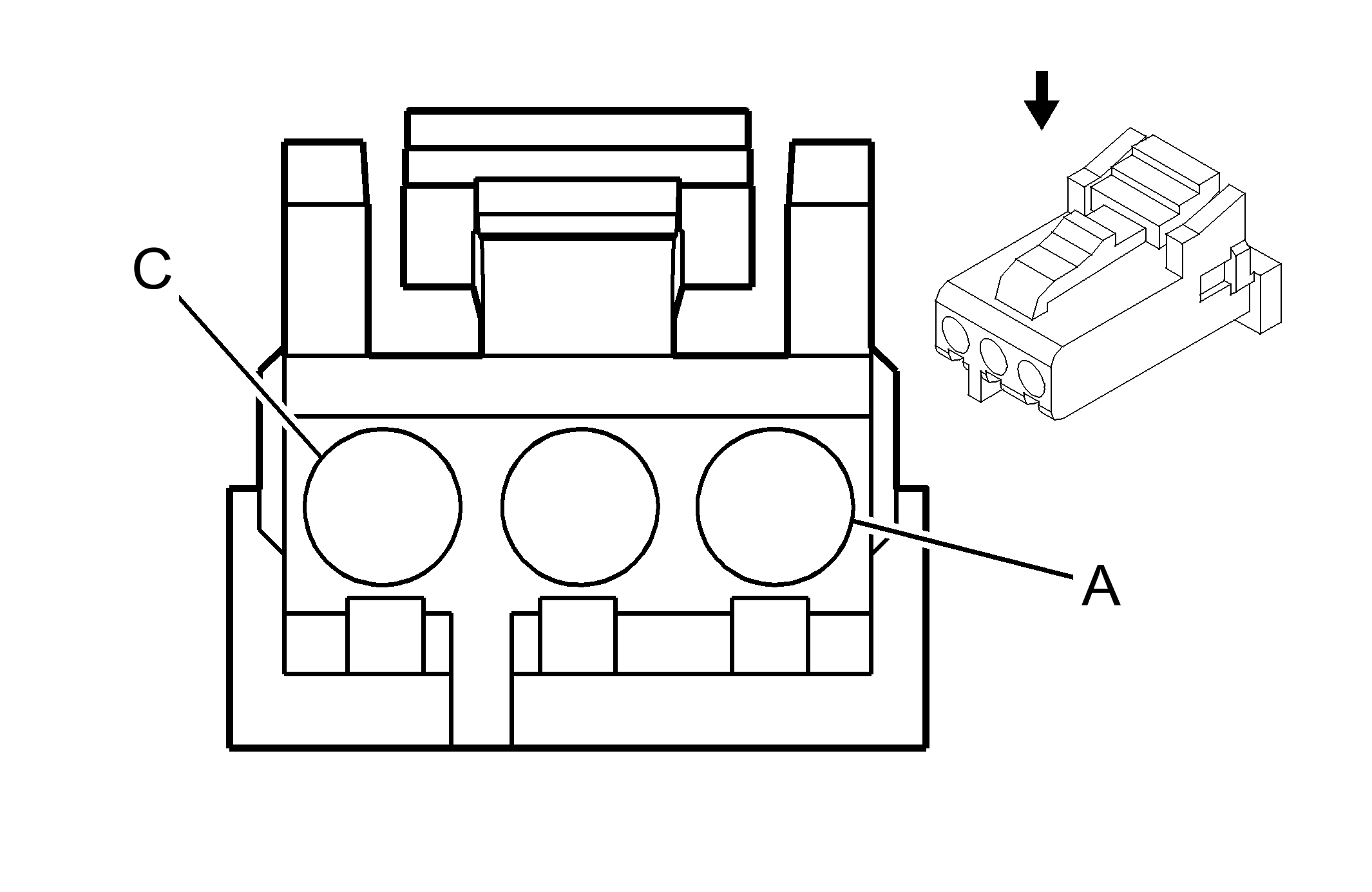

Passlock Sensor (Part of the Ignition Lock Cylinder Case)
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15326747
- 3-Way F Micro-Pack 064 (BK)
|
| Pin |
Wire Color |
Circuit Number |
Function |
| A |
RD/WH |
812 |
12 Volt Reference |
| B |
OG/BK |
1057 |
Low Referecnce |
| C |
YE |
1836 |
Security System Sensor Signal |
