Saturn
>>
2006
>>
Vue Red Line, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System & Washer System
>>
Schematic and Routing Diagrams
>>
Wiper/Washer System
Wiper/Washer System

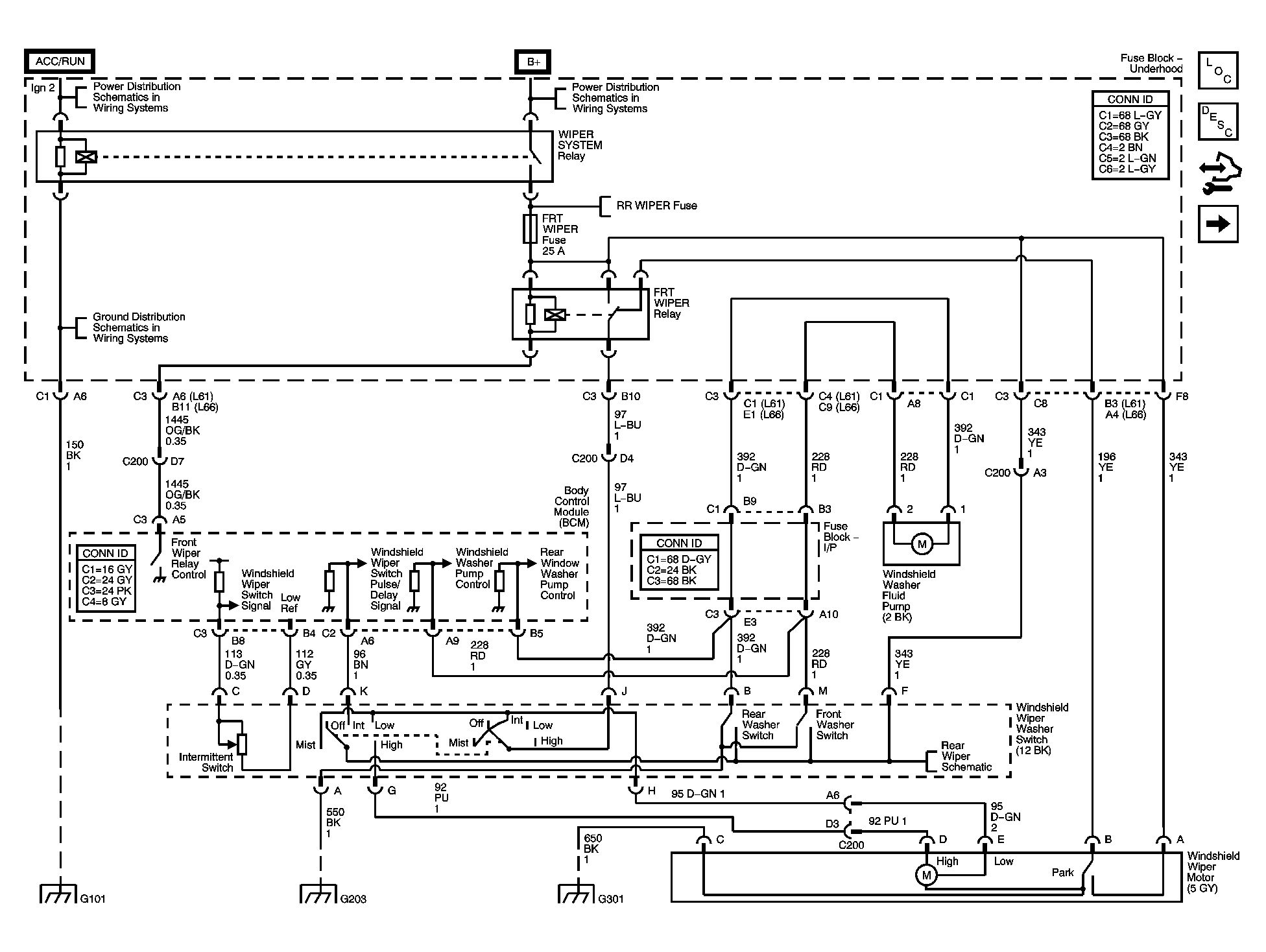

Fig 1: Wiper/Washer Switch Schematics
Courtesy of GENERAL MOTORS CORP.

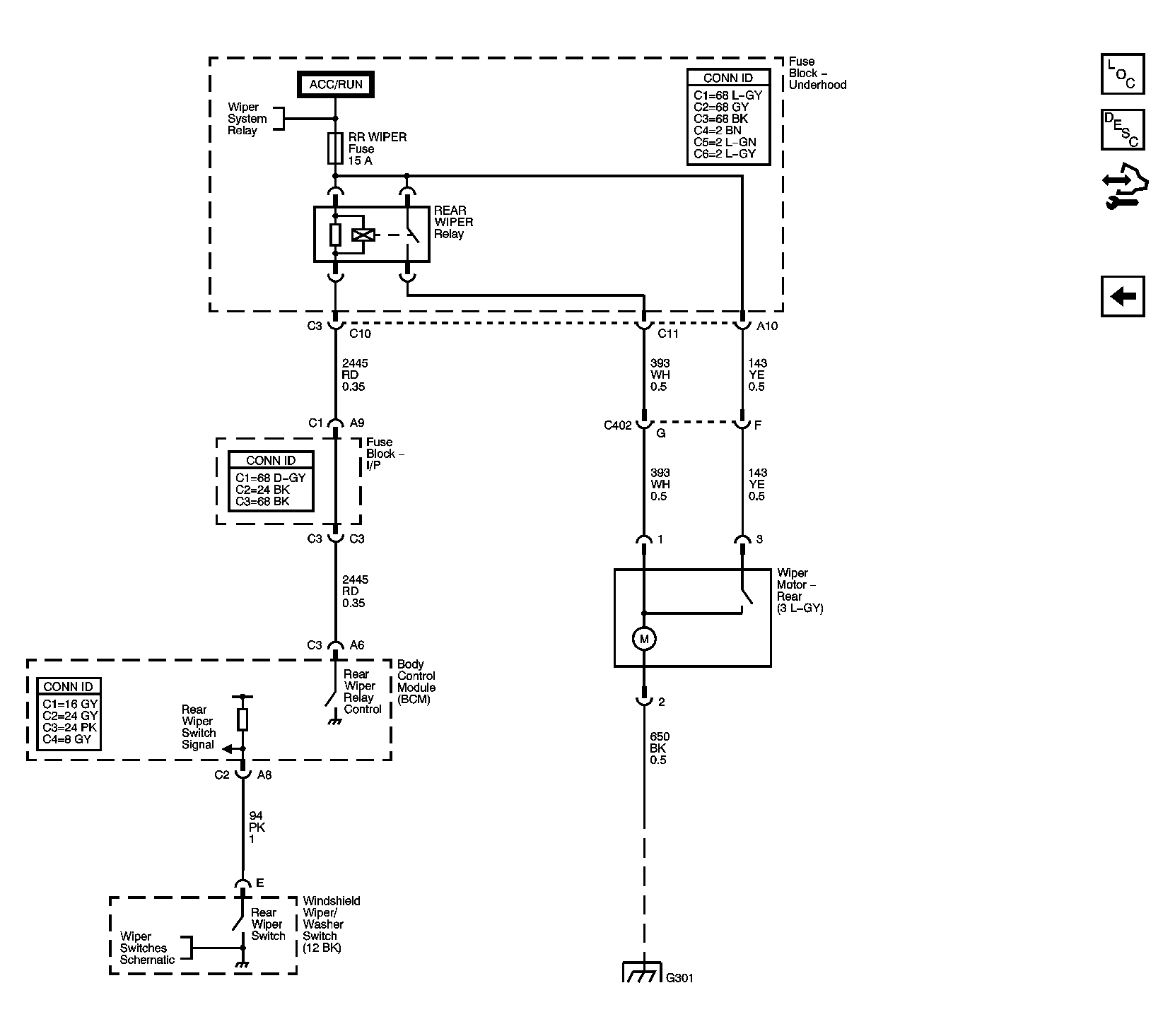

Fig 2: Rear Wiper Motor and Switch Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
