Headlights/Daytime Running Lights (DRL) Schematics (w/o T82)

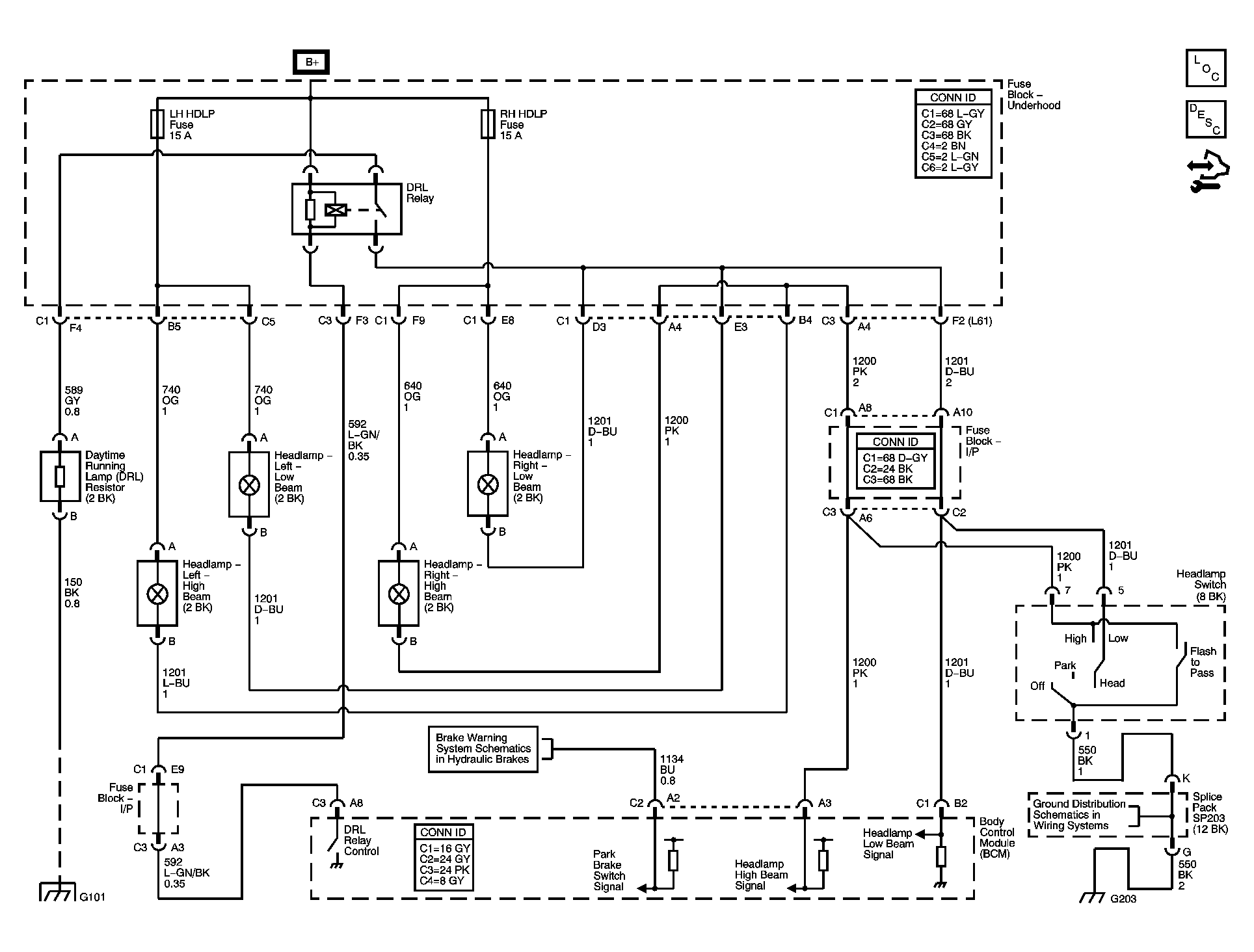

Fig 1: Headlights/Daytime Running Lights (DRL) Schematics (w/o T82)

GM1584880

Courtesy of GENERAL MOTORS CORP.
