Exterior Lights Schematics

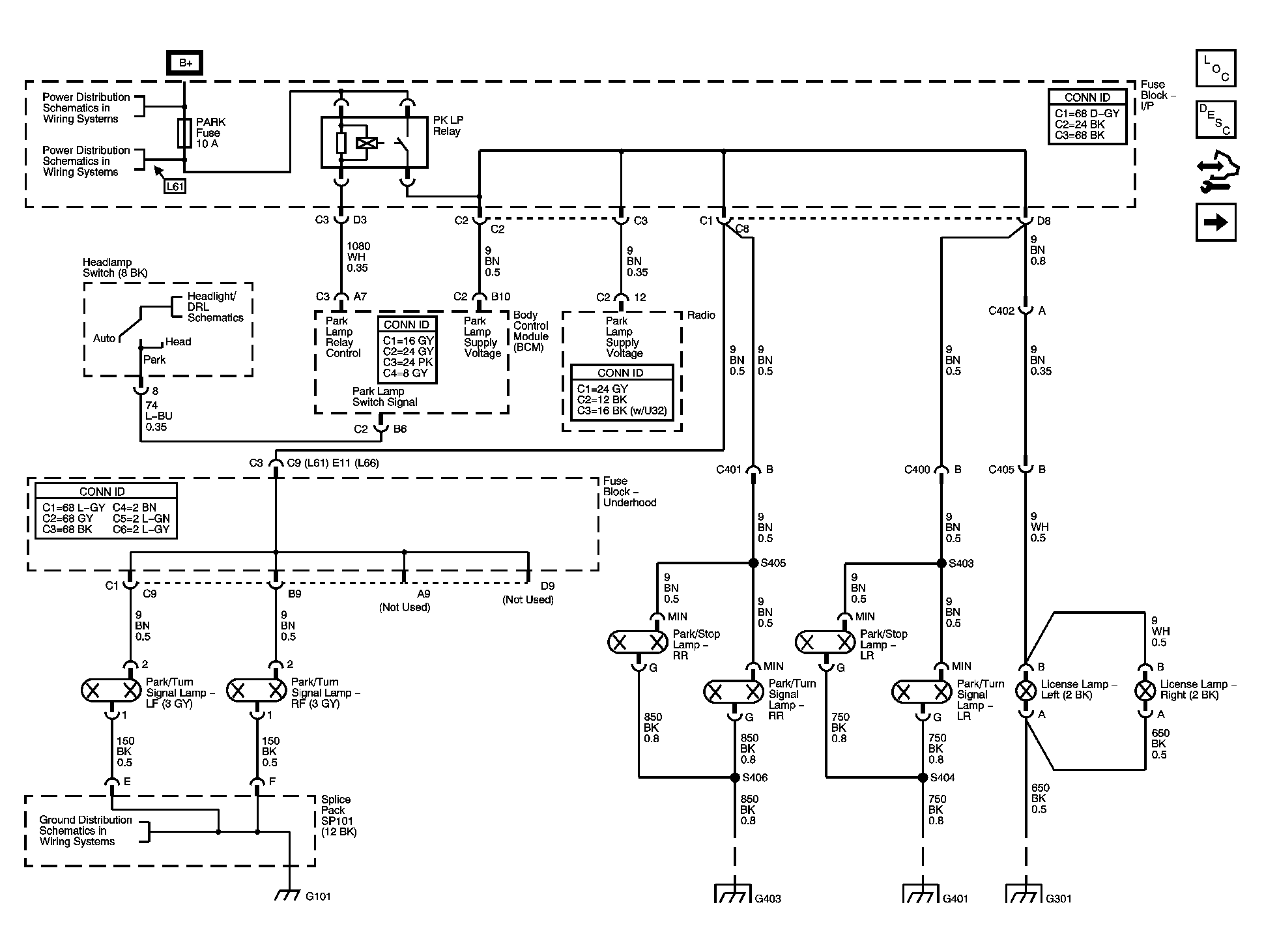

Fig 1: Park Lamps - w/T82
GM1584884Courtesy of GENERAL MOTORS CORP.

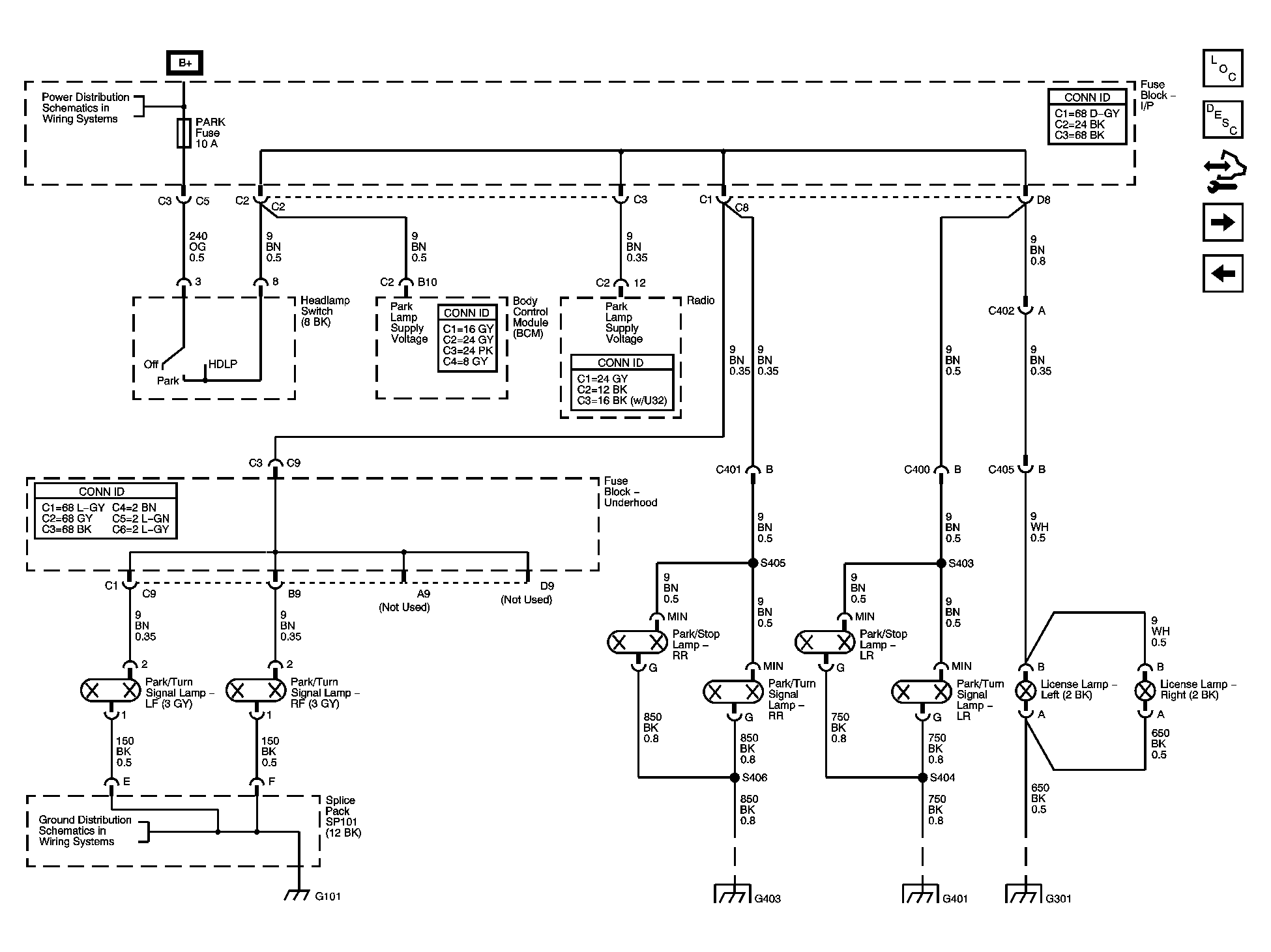

Fig 2: Park Lamps - w/o T82
GM1584885Courtesy of GENERAL MOTORS CORP.

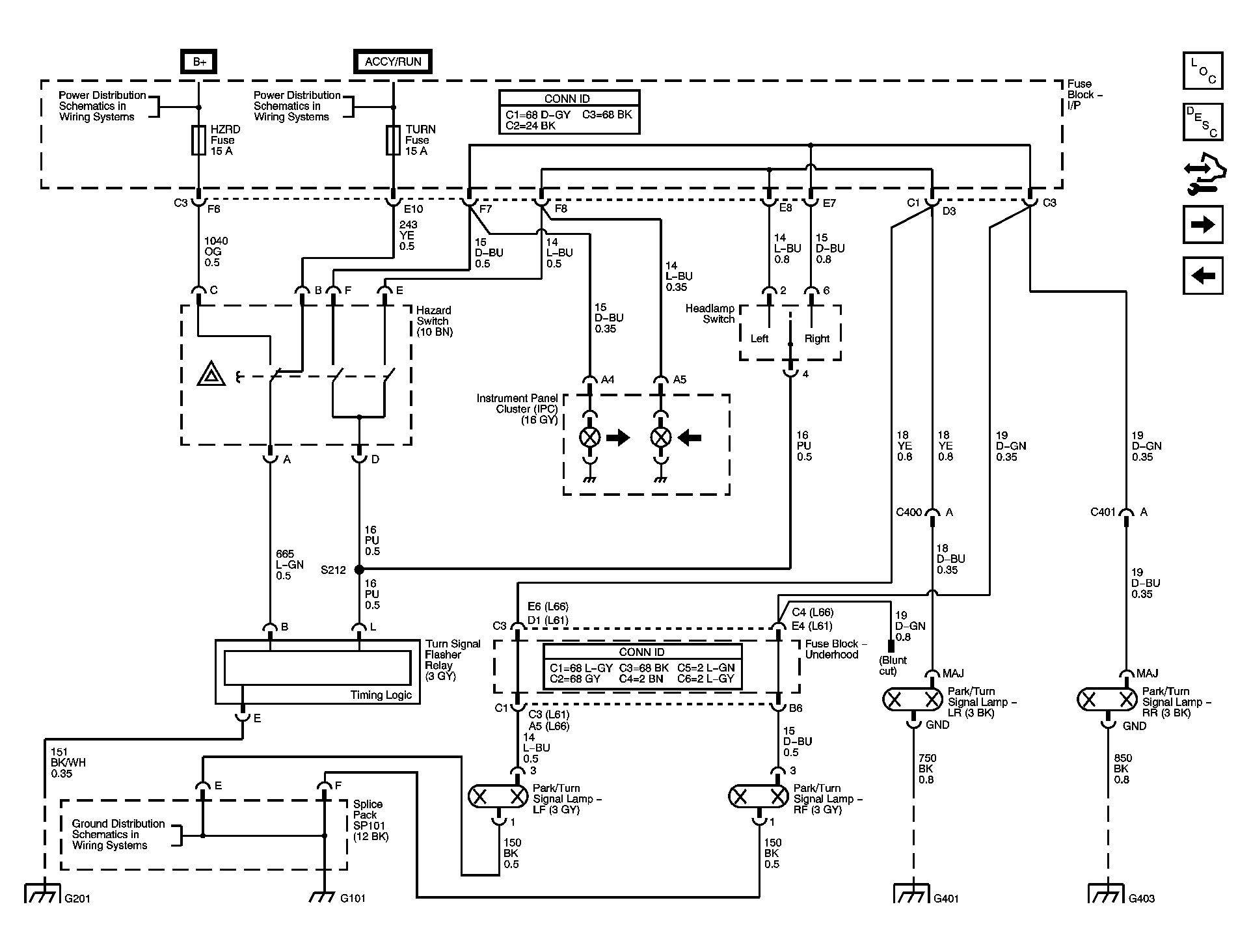

Fig 3: Hazards and Turn Signals
GM1584887Courtesy of GENERAL MOTORS CORP.

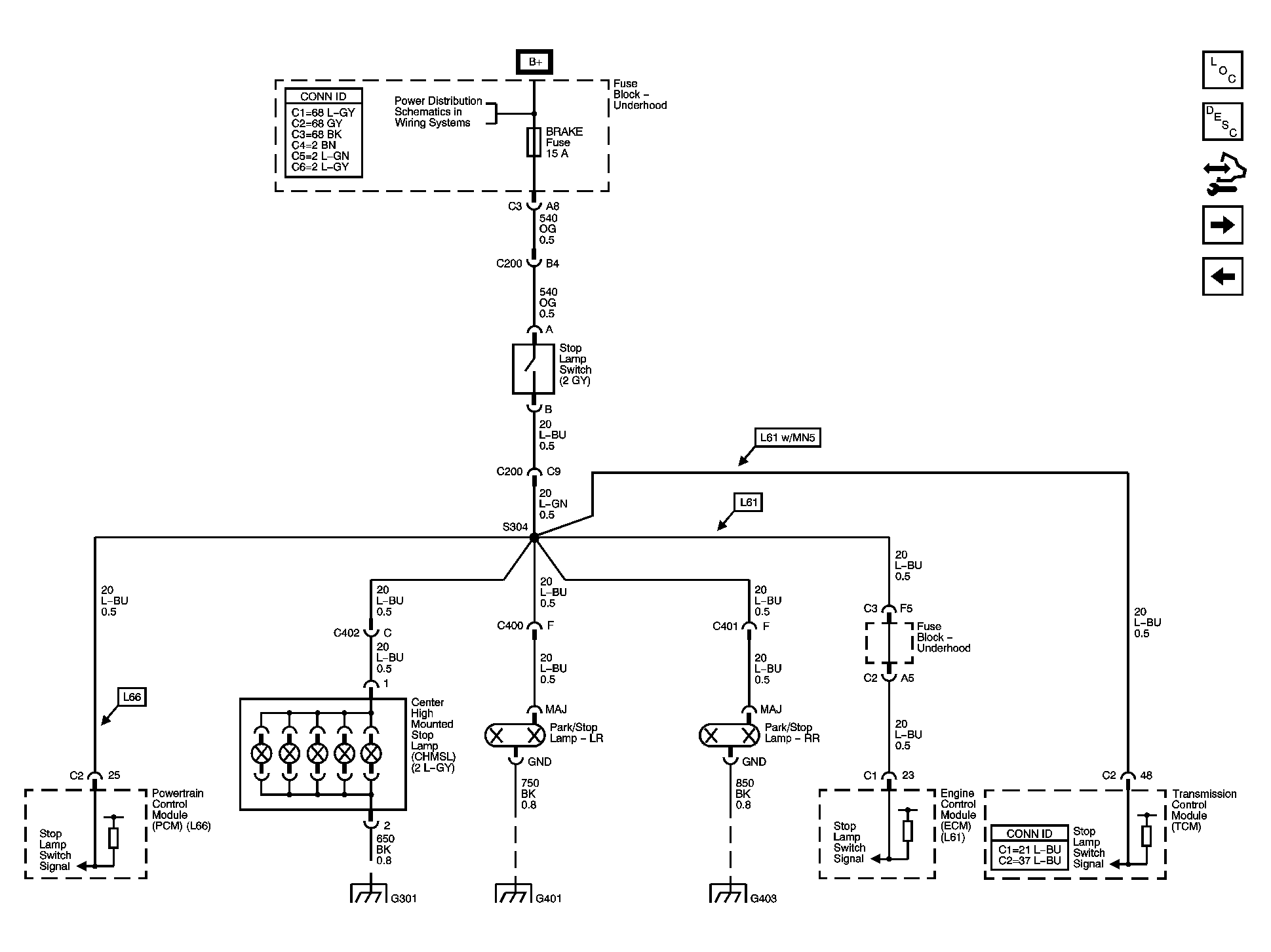

Fig 4: Stop Lamps
GM1584900Courtesy of GENERAL MOTORS CORP.

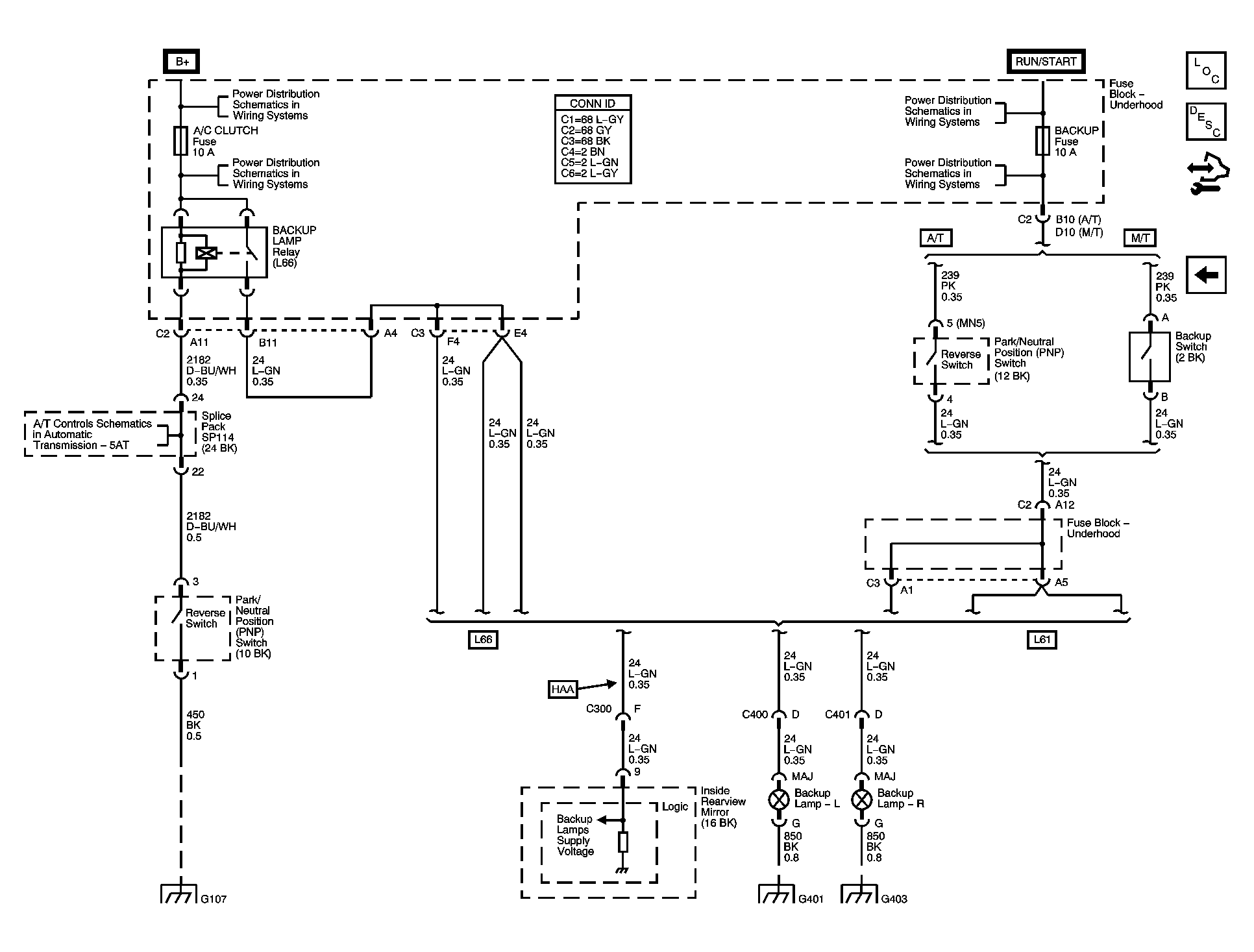

Fig 5: Backup Lamps
GM1584902Courtesy of GENERAL MOTORS CORP.
