Radio/Audio System Schematics (WBM)

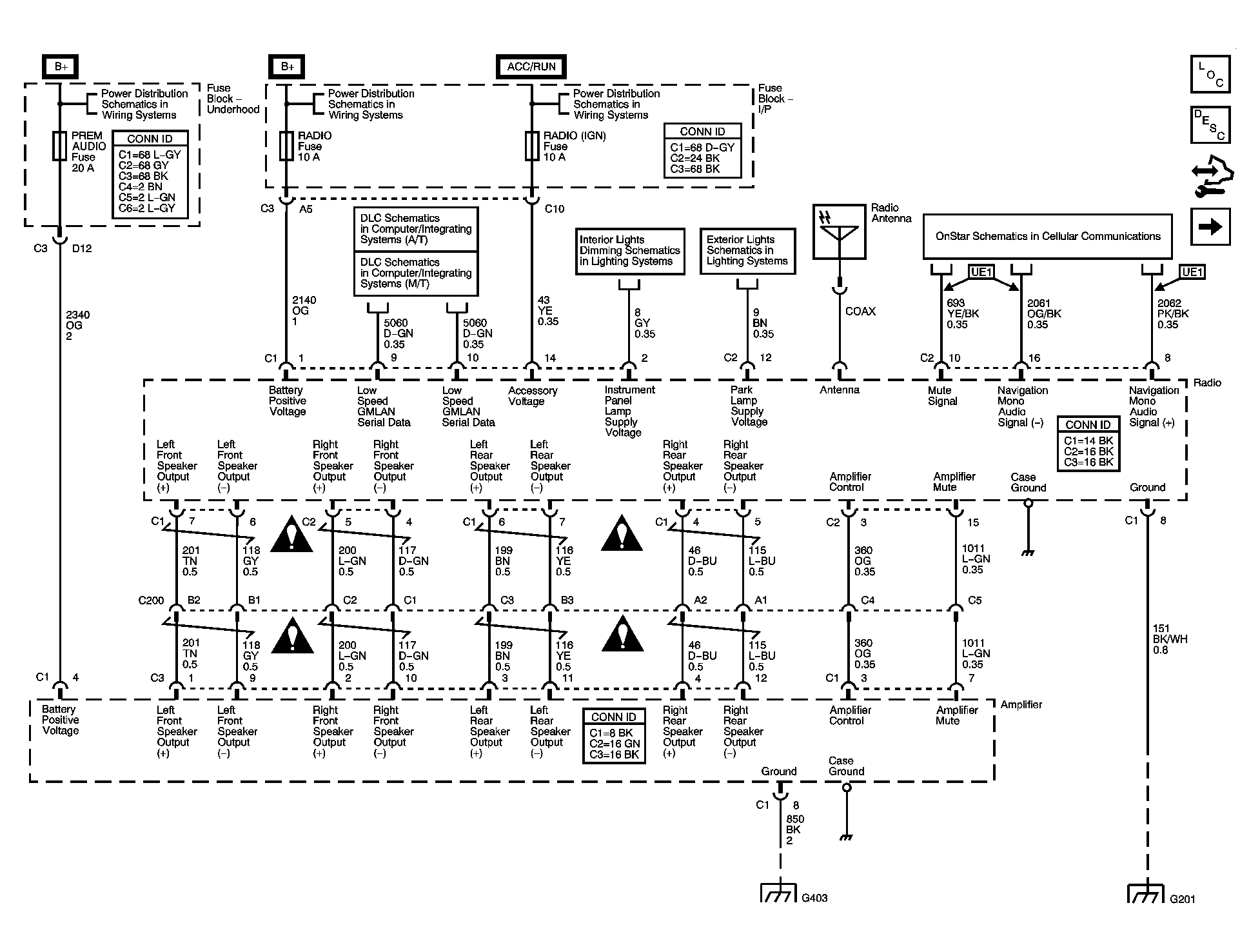

Fig 1: Radio and Amplifier Power and Ground
GM1586684Courtesy of GENERAL MOTORS CORP.

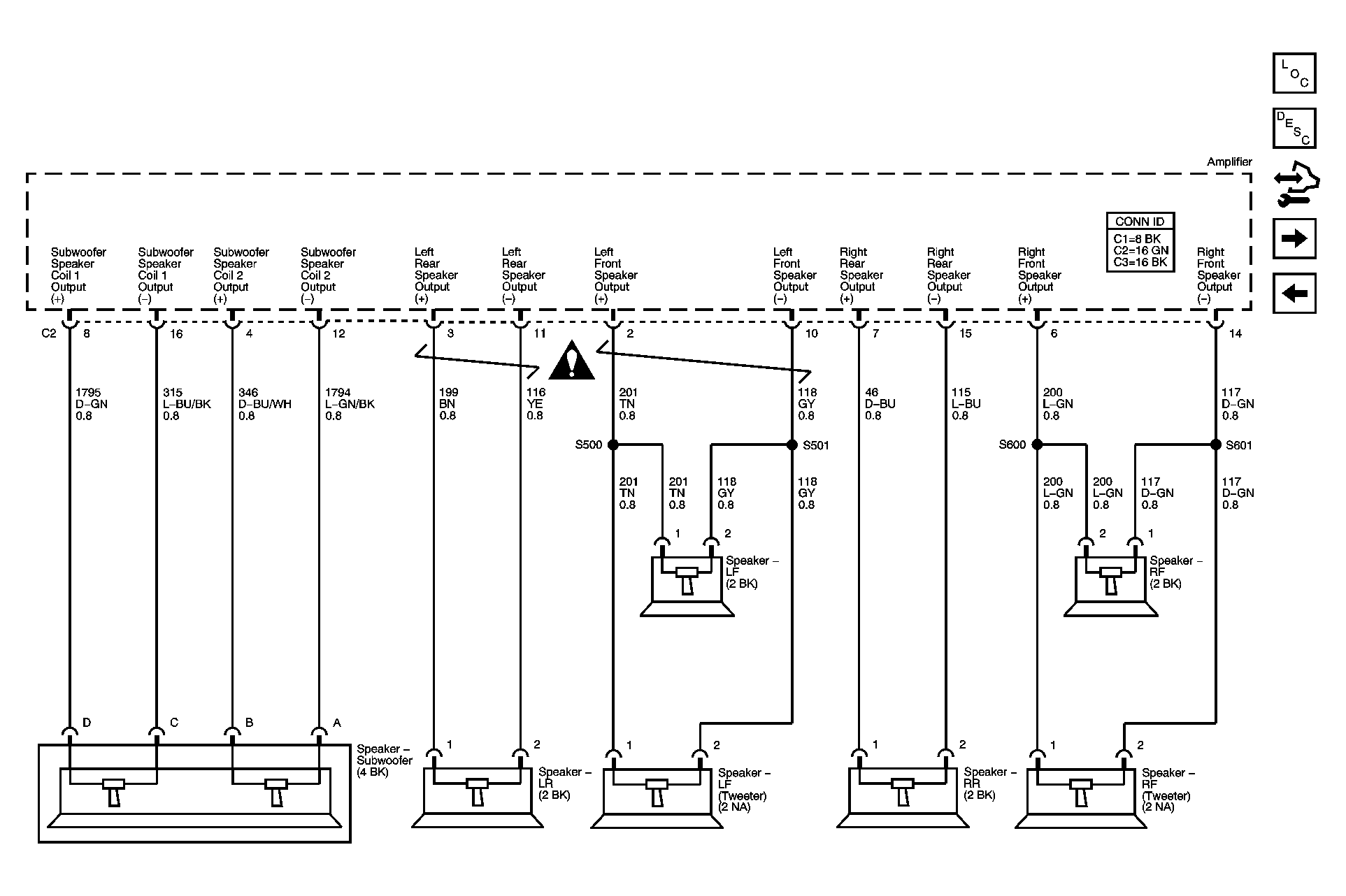

Fig 2: Speakers
GM1586686Courtesy of GENERAL MOTORS CORP.
Fig 3: Redundant Radio Controls
GM1620279Courtesy of GENERAL MOTORS CORP.
