Radio/Audio System Schematics (U1C/UM7)

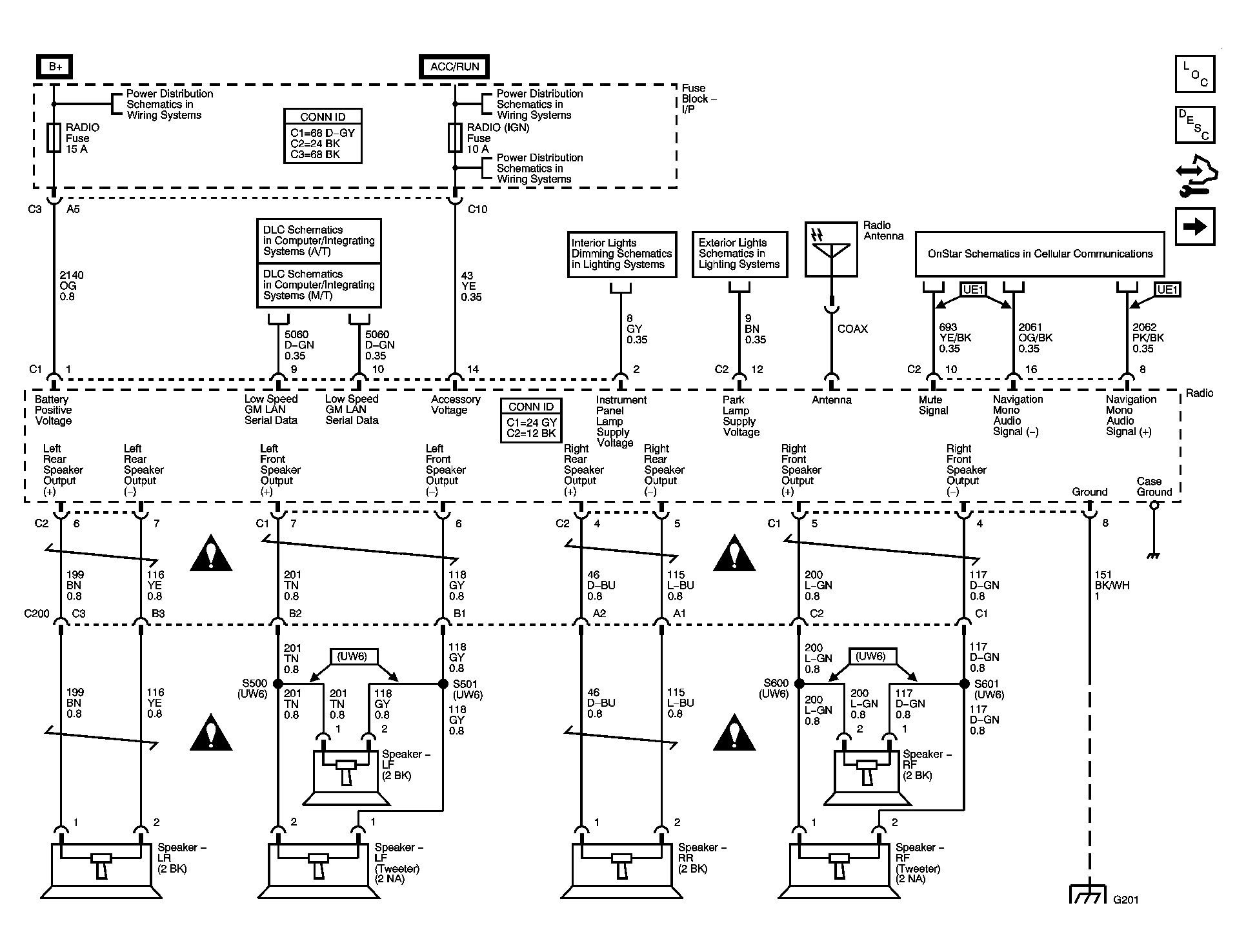

Fig 1: Radio Power, Ground and Speakers

GM1586683

Courtesy of GENERAL MOTORS CORP.

Fig 2: Redundant Radio Controls

GM1620279

Courtesy of GENERAL MOTORS CORP.
