Data Link Connector (DLC) Wiring Schematics (M/T)

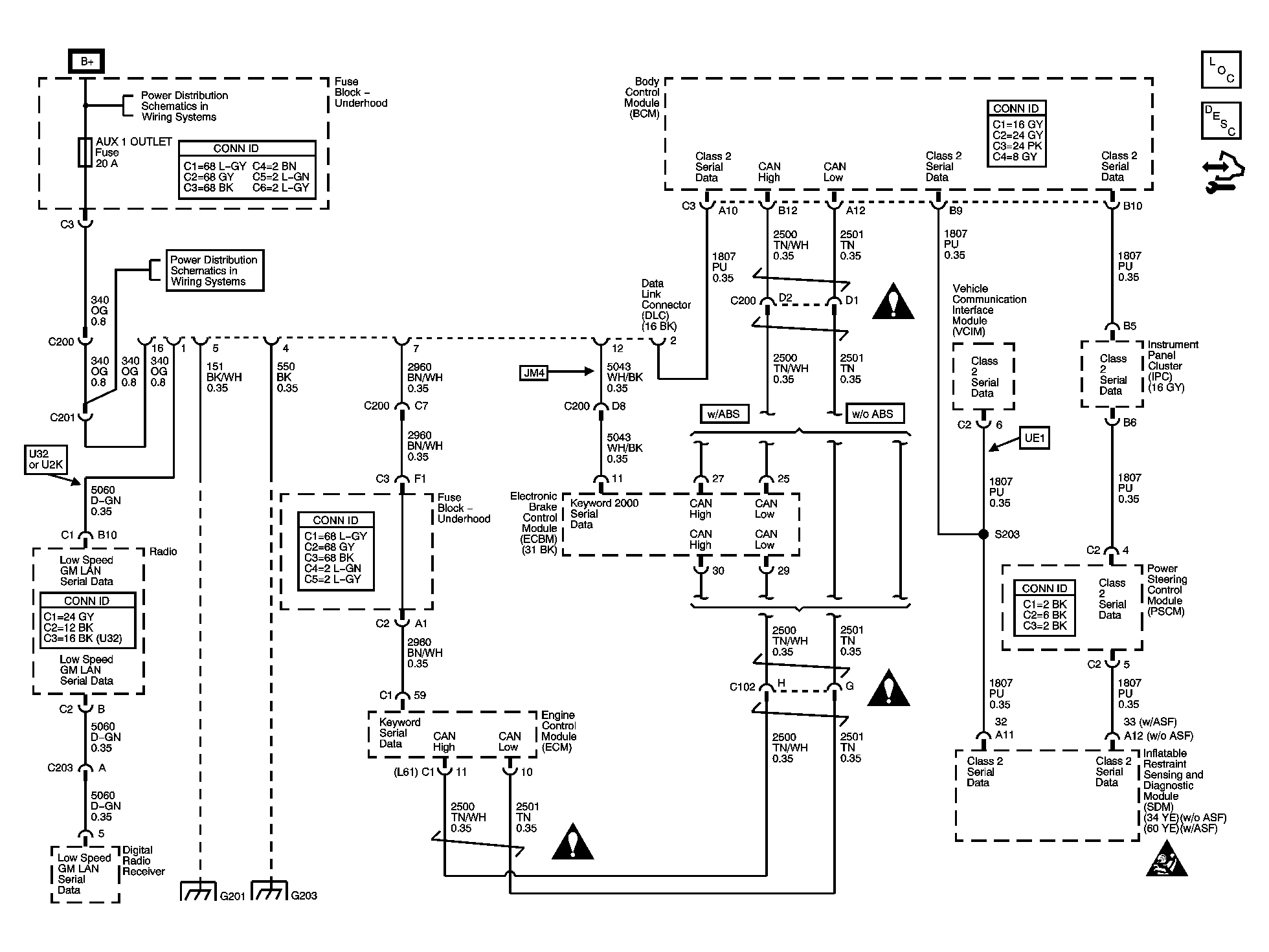

Fig 1: Data Link Connector (DLC) Schematics (M/T)

GM1586611

Courtesy of GENERAL MOTORS CORP.
