Data Link Connector (DLC) Wiring Schematics (A/T)

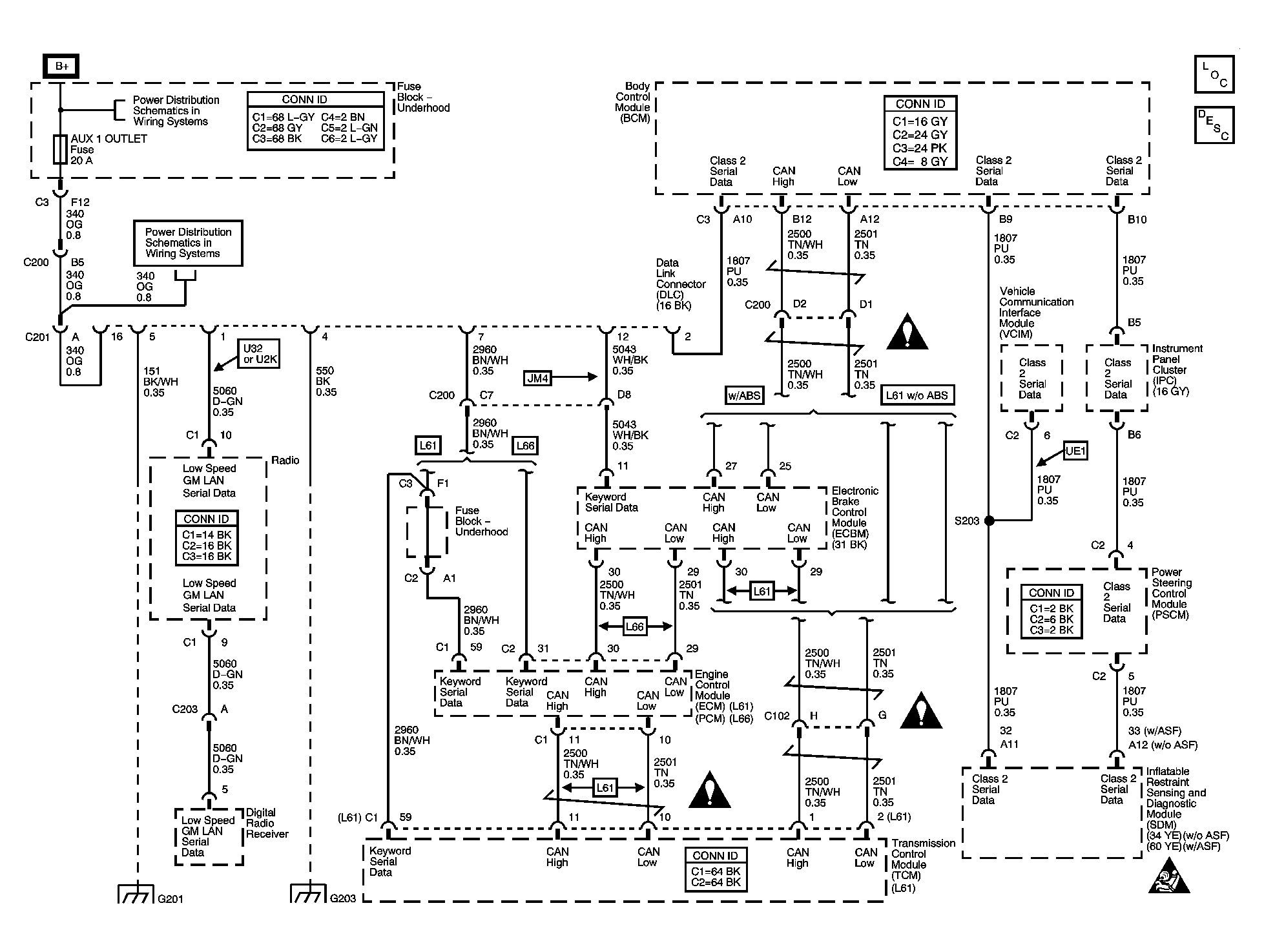

Fig 1: Data Link Connector (DLC) Schematics (A/T)

GM1586606

Courtesy of GENERAL MOTORS CORP.
