Washer Nozzle Replacement - Front



WASHER NOZZLE REPLACEMENT - FRONT

REMOVAL PROCEDURE

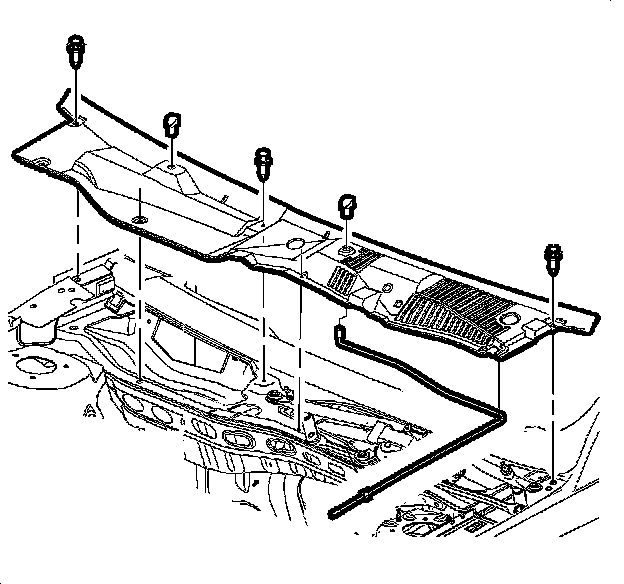

1. Remove the air inlet grille panel.
2. Depress the washer nozzle tabs to disengage the nozzle from the air inlet grille.
3. Remove the nozzle.

INSTALLATION PROCEDURE




1. Push the washer nozzles into the air inlet grille panel until the tabs engage with the panel.
2. Install the air inlet grille panel.
