Hose Replacement - Windshield Washer

HOSE REPLACEMENT - WINDSHIELD WASHER

REMOVAL PROCEDURE

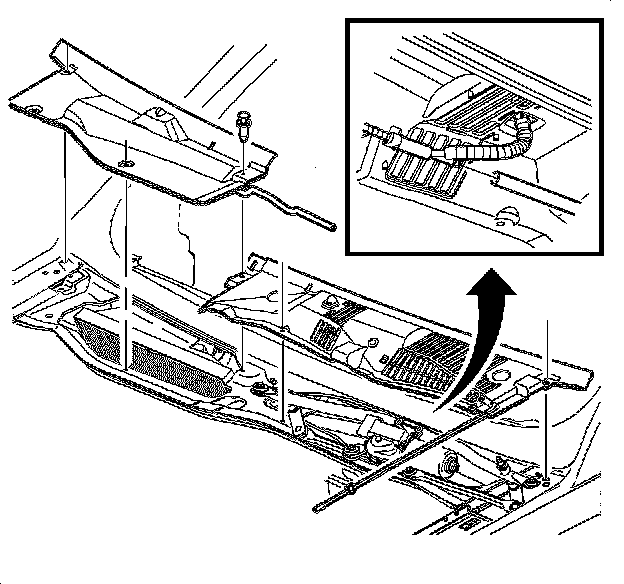

1. Remove the air inlet grille.




2. Separate front washer nozzle hose from the front washer solvent container hose that runs along the upper motor compartment rail.
3. Remove the front washer nozzle hose.

INSTALLATION PROCEDURE




1. Connect the front nozzle hose to the front washer solvent container hose that runs along the upper motor compartment rail.
2. Position the washer hoses into the vehicle.
3. Install the air inlet grille.
