Window Weatherstrip Run Channel Assembly Replacement - Rear

Window Weatherstrip Run Channel Assembly Replacement - Rear

Removal Procedure




1. Lower the rear door window.
2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Service and Repair).

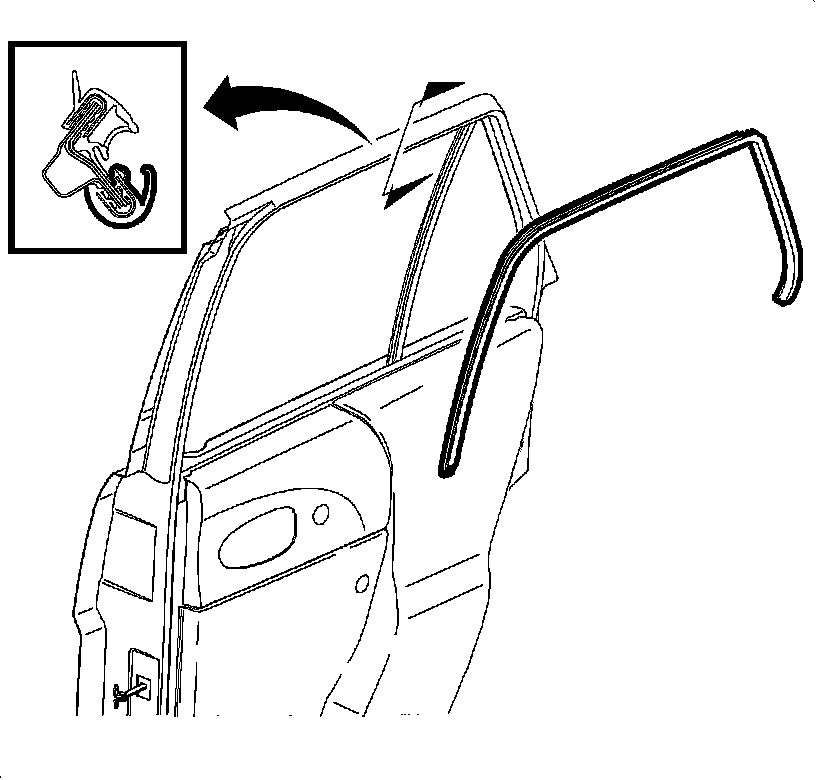

3. Starting at one end, carefully pull the window weatherstrip run channel assembly from the door frame.

Installation Procedure




1. Align the notch in the window weatherstrip seal to the fixed glass post and press the weatherstrip onto the window flange.

* Press the weatherstrip run channel onto the door flange.
* Check to make sure the channel is fully secured into the upper corners of the door frame.

2. Install the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Service and Repair).
