Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Windows and Glass >> Relays and Modules - Windows and Glass >> Heated Glass Element Relay >> Locations

Heated Glass Element Relay: Locations

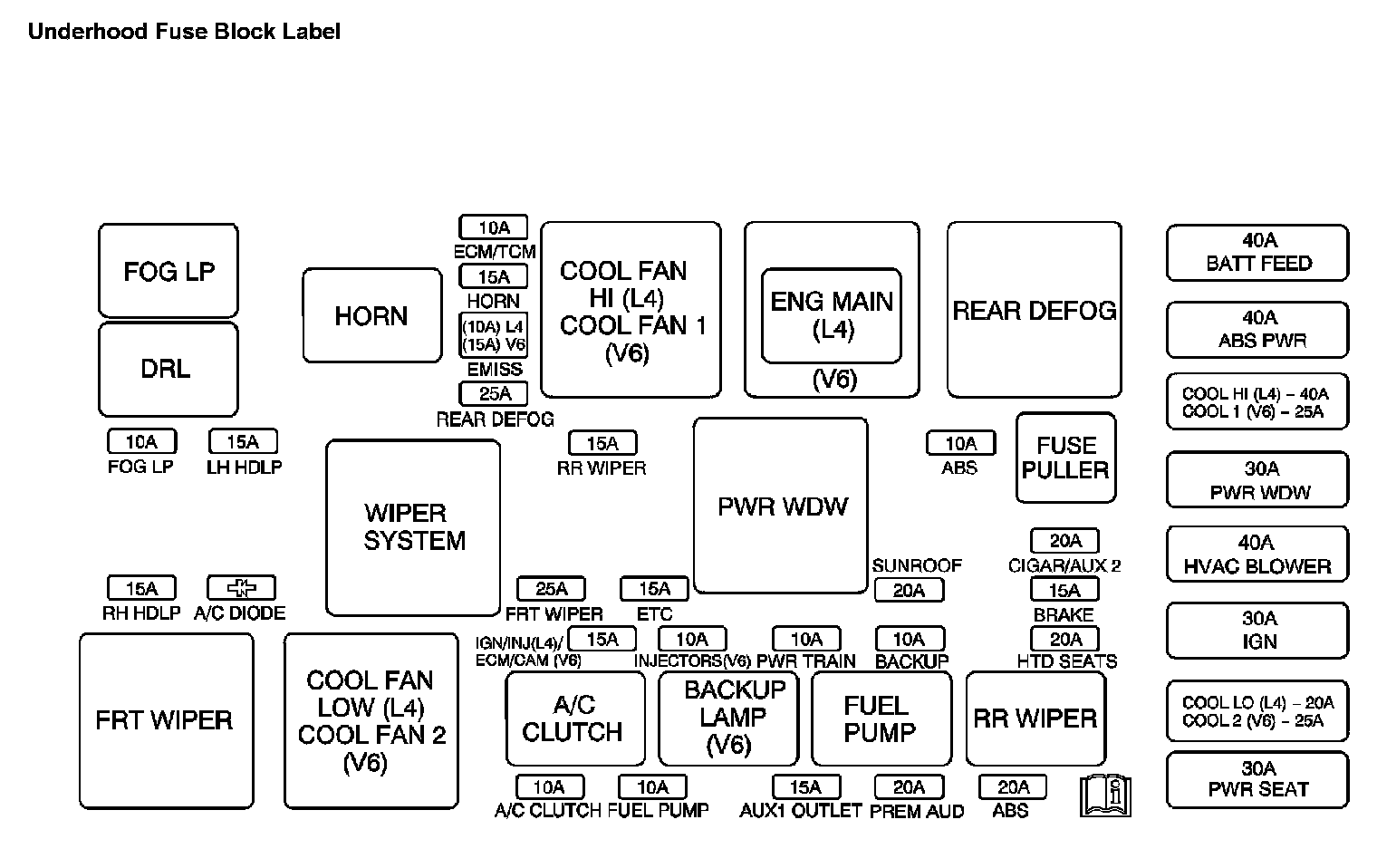

Location View:

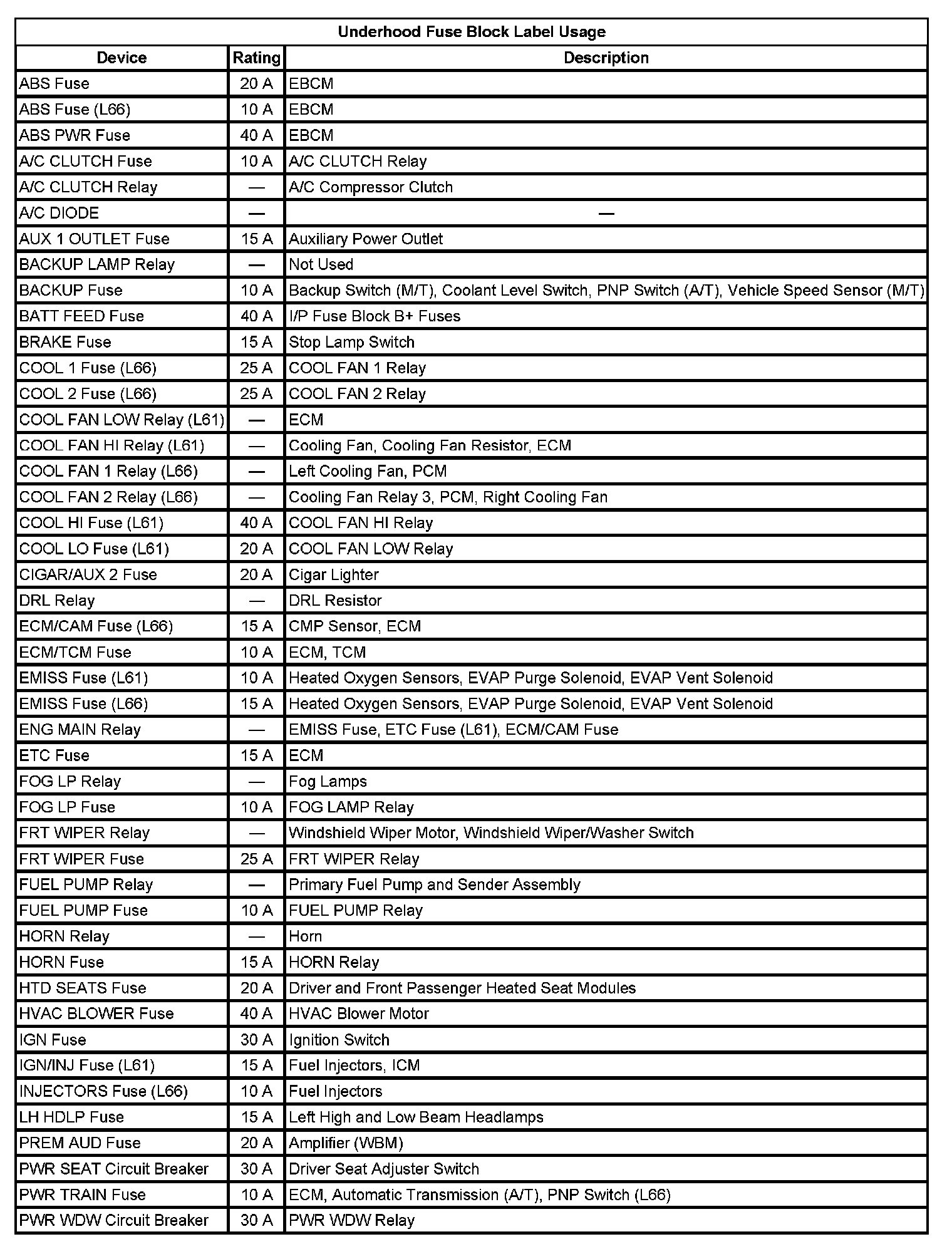

Application Table (Part 1):




Application Table (Part 2):

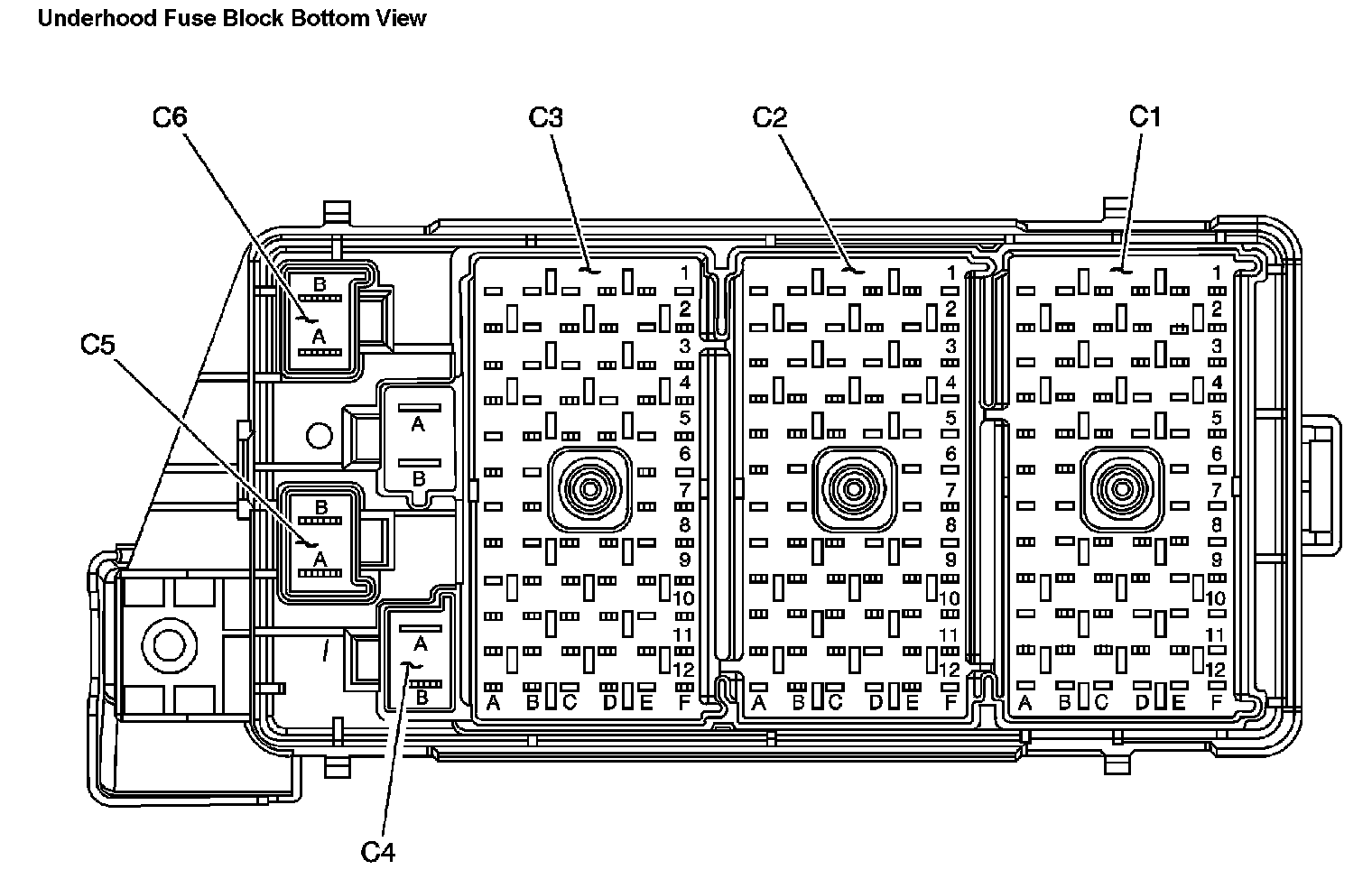

Location View:




Location View:
