4TH Clutch Pressure Switch Replacement



4TH Clutch Pressure Switch Replacement

Removal Procedure
1. Remove the battery tray.

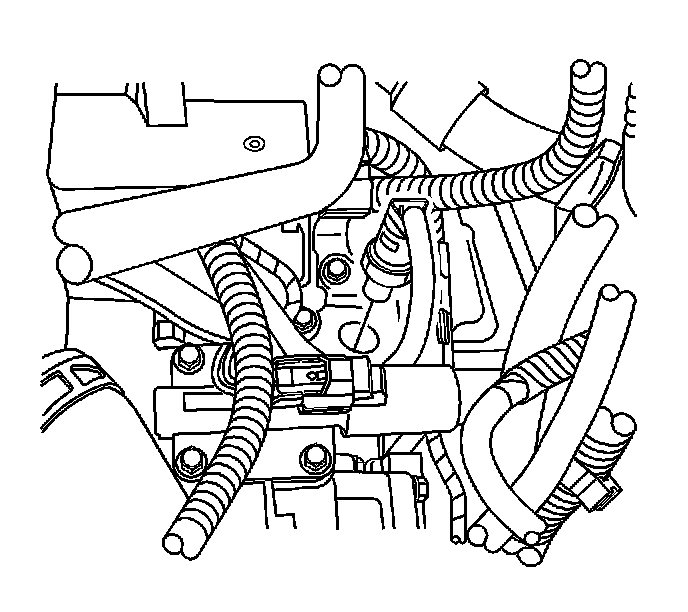

2. Disconnect the wiring harness from the 4th clutch pressure switch.
3. Remove the 4th clutch pressure switch and washer.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the 4th clutch pressure switch and washer.
^ Tighten the input speed sensor bolt 20 Nm (14 ft. lbs.).
2. Connect the wiring harness to the 4th clutch pressure switch.
3. Install the battery tray.
