3RD Clutch Pressure Switch Replacement

3rd Clutch Pressure Switch Replacement

Removal Procedure
1. Raise the vehicle.
2. Drain the transmission fluid. Refer to Transmission Fluid Replacement.





3. Disconnect the wiring harness from the 3rd clutch pressure switch.
4. Remove the 3rd clutch pressure switch and washer.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

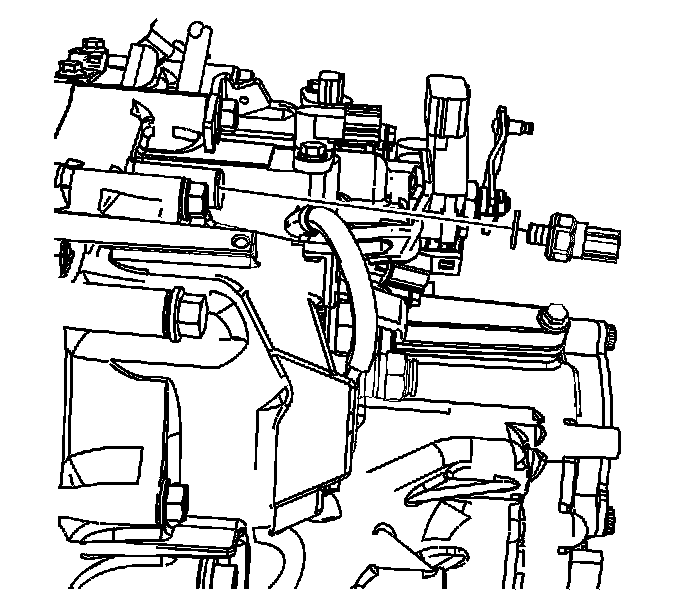

1. Install the 3rd clutch pressure switch and washer.
^ Tighten the input speed sensor bolt 20 Nm (14 ft. lbs.).
2. Connect the wiring harness to the 3rd clutch pressure switch.
3. Fill the transmission with transmission fluid. Refer to Transmission Fluid Replacement.
4. Lower the vehicle.
