Clutch Pedal Assembly: Service and Repair

Clutch Pedal Replacement

Removal Procedure

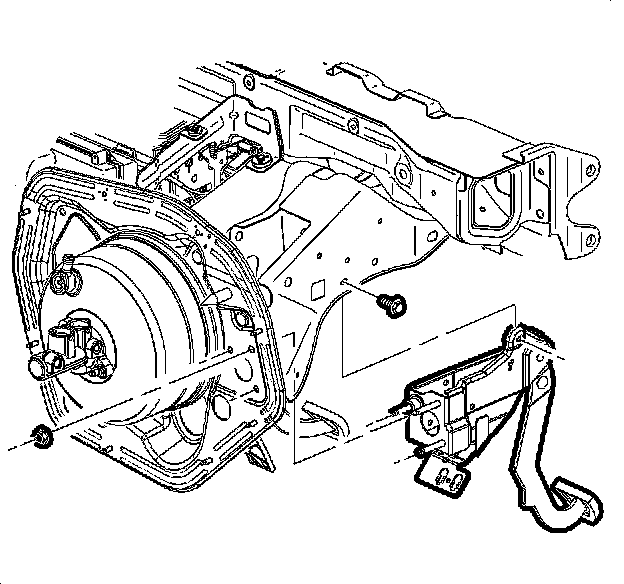

1. Remove the nuts from the clutch pedal assembly studs.





2. Disconnect the clutch master cylinder pushrod from the clutch pedal.





3. Remove the clutch position switch from the clutch pedal assembly by sliding upward.





4. Remove the bolt from the clutch pedal assembly.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the bolt to the clutch pedal assembly.
^ Tighten the clutch pedal assembly bolt to 10 Nm (89 inch lbs.).





2. Install the clutch position switch by sliding downward.





3. Connect the clutch master cylinder pushrod to the clutch pedal assembly.





4. Install the clutch position switch to the clutch pedal assembly.





5. Install the nuts to the clutch pedal assembly studs.
^ Tighten the clutch pedal assembly nuts to 23 Nm (17 ft. lbs.).
