Clutch Slave Cylinder: Service and Repair

Clutch Actuator Cylinder Replacement

Removal Procedure

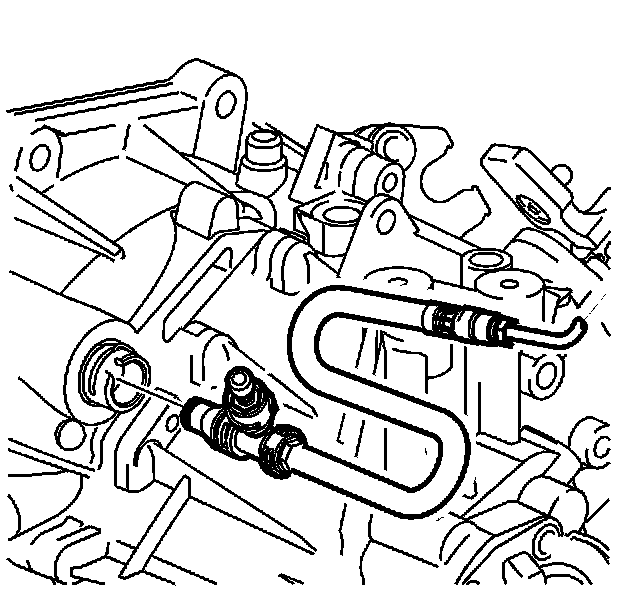

1. Disconnect the clutch master cylinder line from the transaxle by removing the C-clip.
2. Remove the transaxle.
3. Remove the clutch actuator cylinder bolts from the transaxle.
4. Remove the clutch actuator cylinder.

Installation Procedure





Important: Excessive amounts of lubricant on the input shaft splines can contaminate the clutch disc and cause clutch shudder.

1. Lightly lubricate the inside diameter of the bearing with input shaft lubricant P/N 21005995 or equivalent.

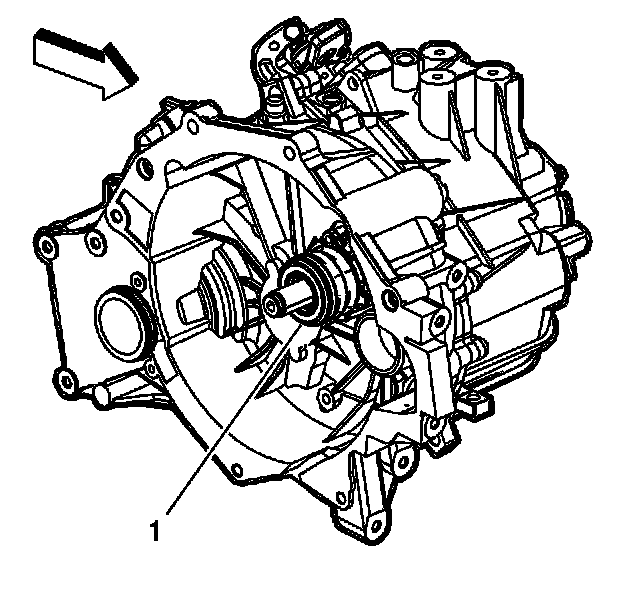

2. Install the clutch actuator cylinder (1) to the transaxle.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the clutch actuator cylinder bolts.
^ Tighten the bolts to 10 Nm (89 inch lbs.).
4. Install the transaxle.





5. Connect the clutch master cylinder line to the transaxle by pushing it in until it seats.
6. Bleed the clutch hydraulic system.
