4T45-E Automatic Transaxle



Transmission Fluid Checking Procedure

Transmission Fluid Check:





The oil level control plug (65) is located on the torque converter side of the transmission.

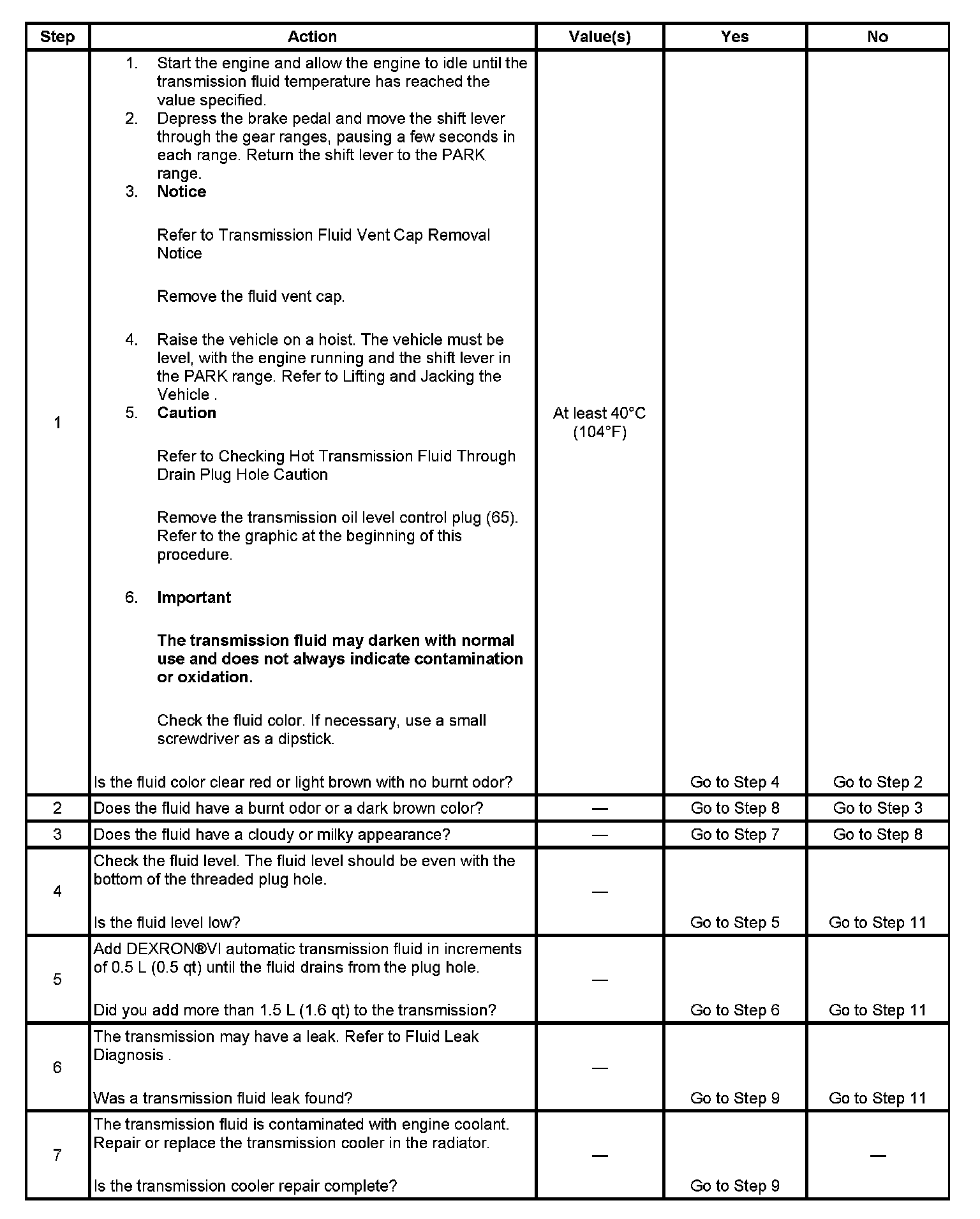

Step 1 - Step 7:




Step 8:

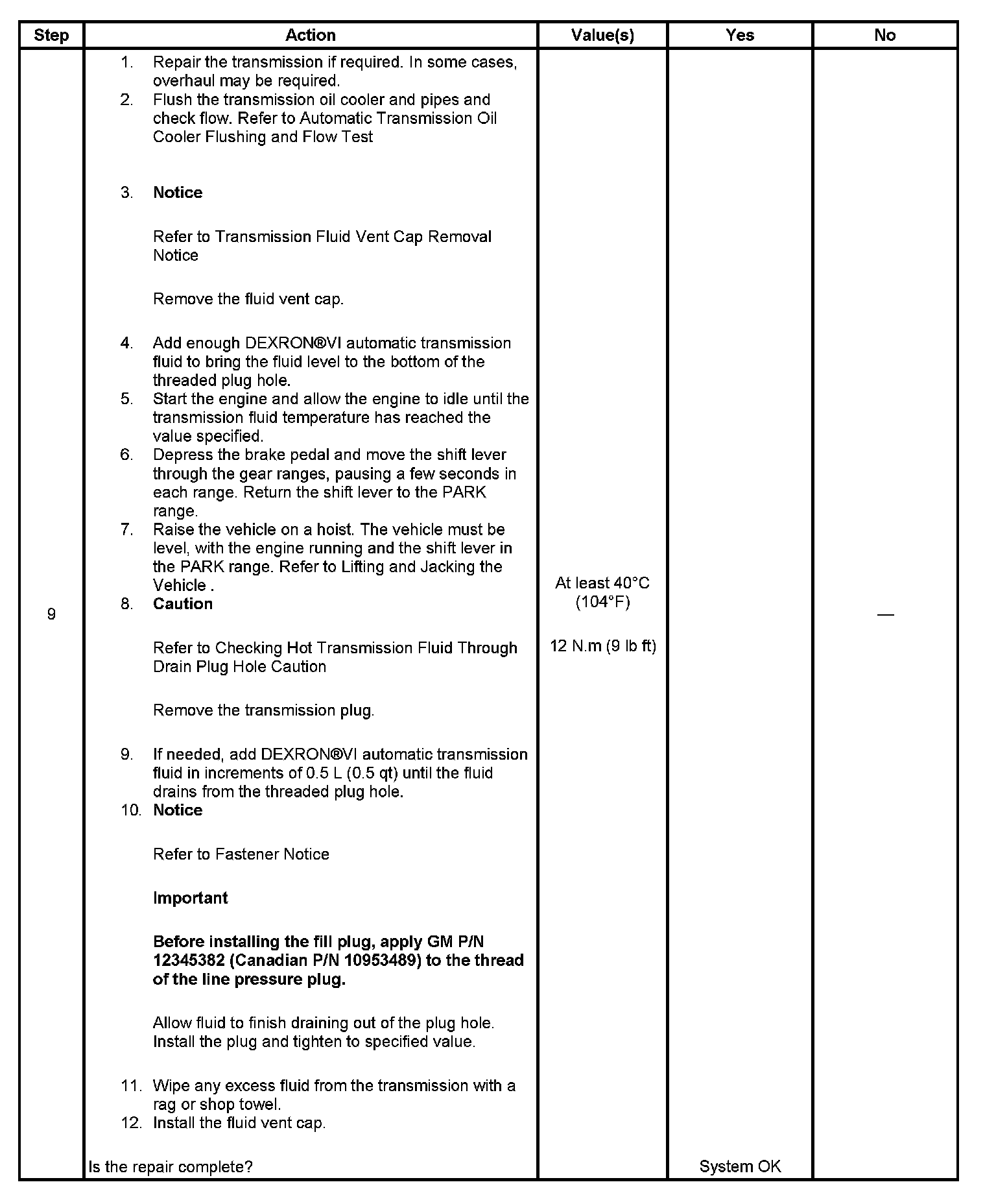

Step 9:

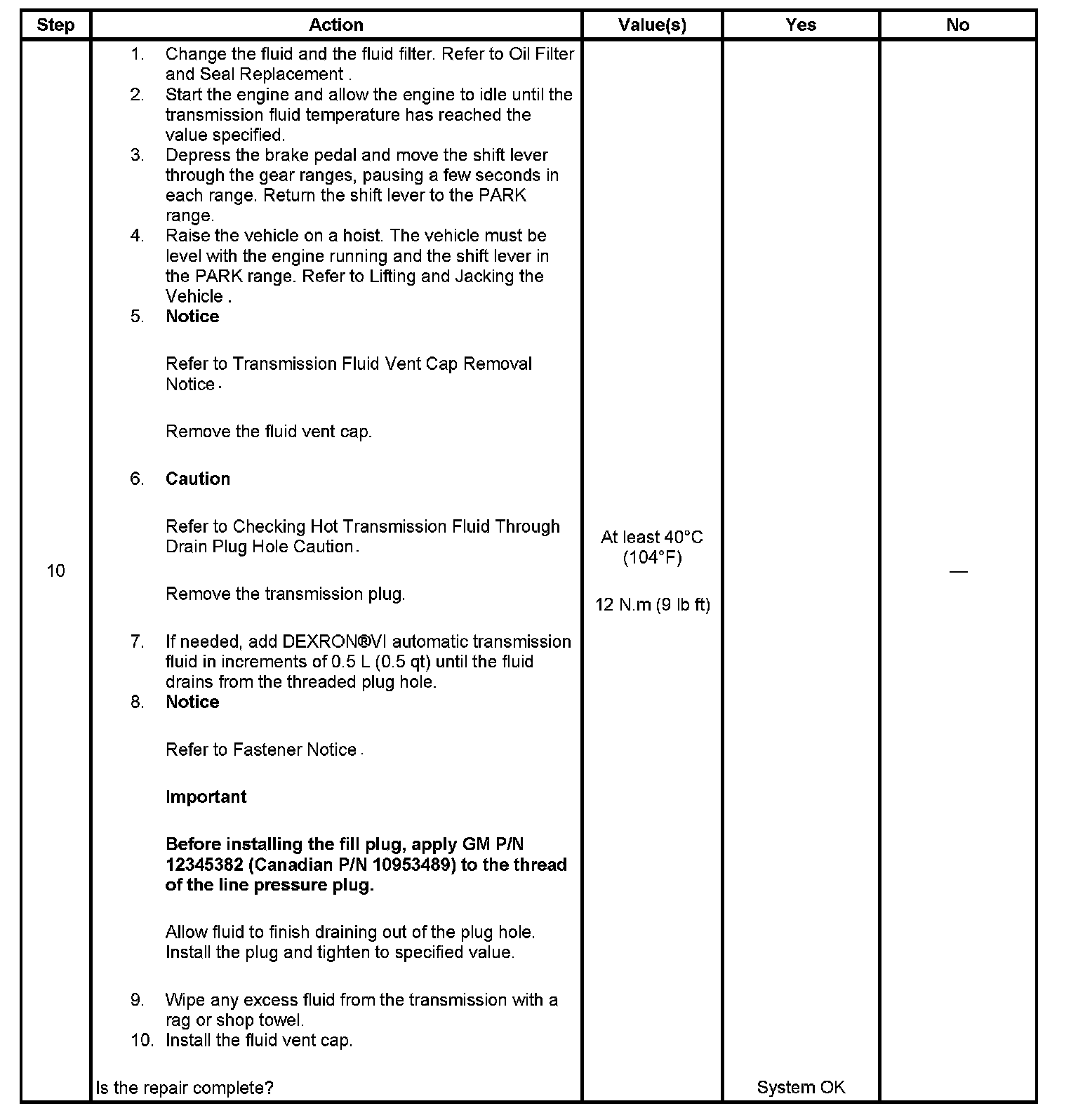

Step 10:




Step 11:
