Front Suspension

Stabilizer Shaft Link Replacement

Removal Procedure
1. Raise and support the vehicle.
2. Remove the tire and wheel.





Important: Do not allow the stabilizer link ball stud to rotate while removing the link nut.

3. Remove the stabilizer link to strut nut.





Important: Do not allow the stabilizer link ball stud to rotate while removing the link nut.

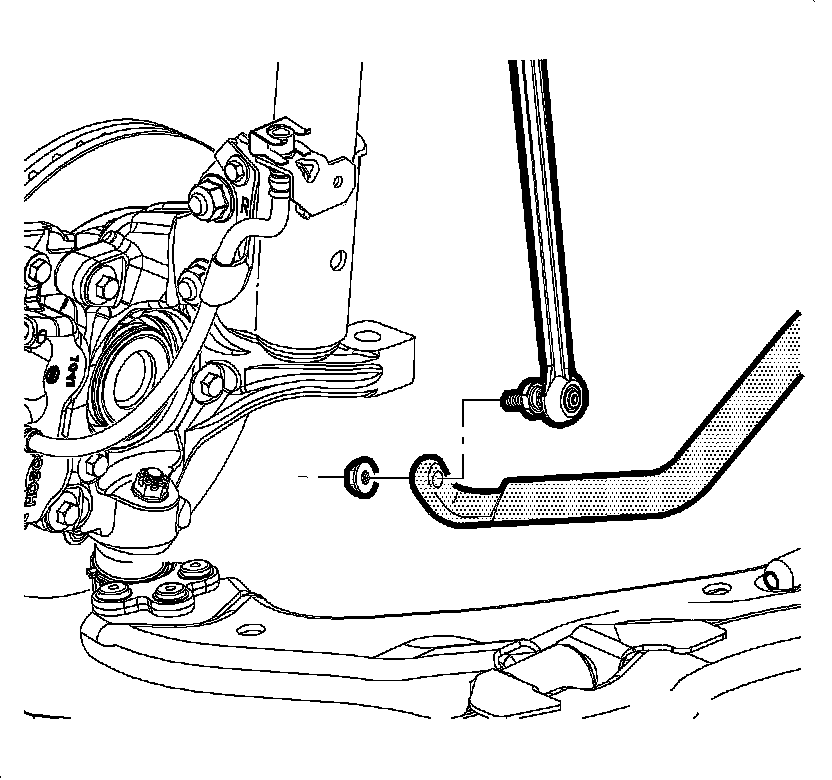

4. Remove the stabilizer link to stabilizer bar nut.
5. Remove the stabilizer link.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

Important: Do not allow the stabilizer link ball stud to rotate while installing the link nut.

1. Connect the stabilizer link to the strut.
^ Tighten the nut to 65 Nm (48 ft. lbs.).





Important: Do not allow the stabilizer link ball stud to rotate while installing the link nut.

2. Connect the stabilizer link to the stabilizer bar.
^ Tighten the nut to 65 Nm (48 ft. lbs.).
3. Install the tire and wheel.
4. Lower the vehicle.
