Pressure Plate

Important: Do not tighten the pressure plate assembly bolts more than half a turn at a time or the pressure plate assembly may warp.

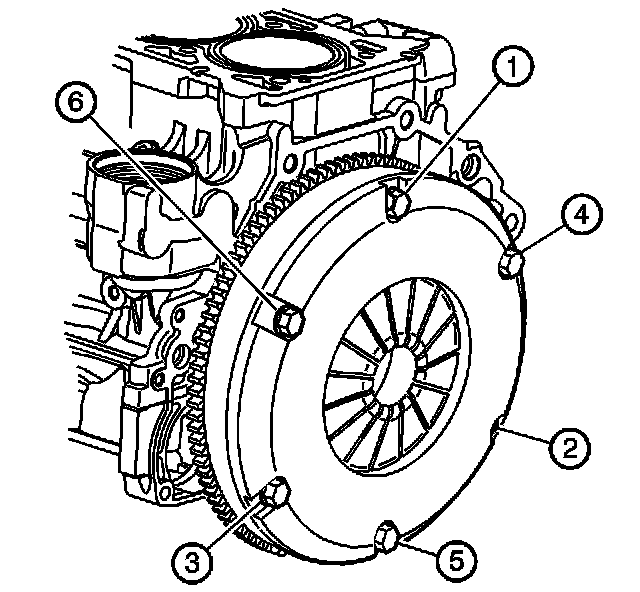

Tighten the pressure plate assembly bolts using a progressive crisscross pattern to prevent warping of the pressure plate assembly.
^ Tighten the bolts to 24 Nm (17 ft. lbs.).
