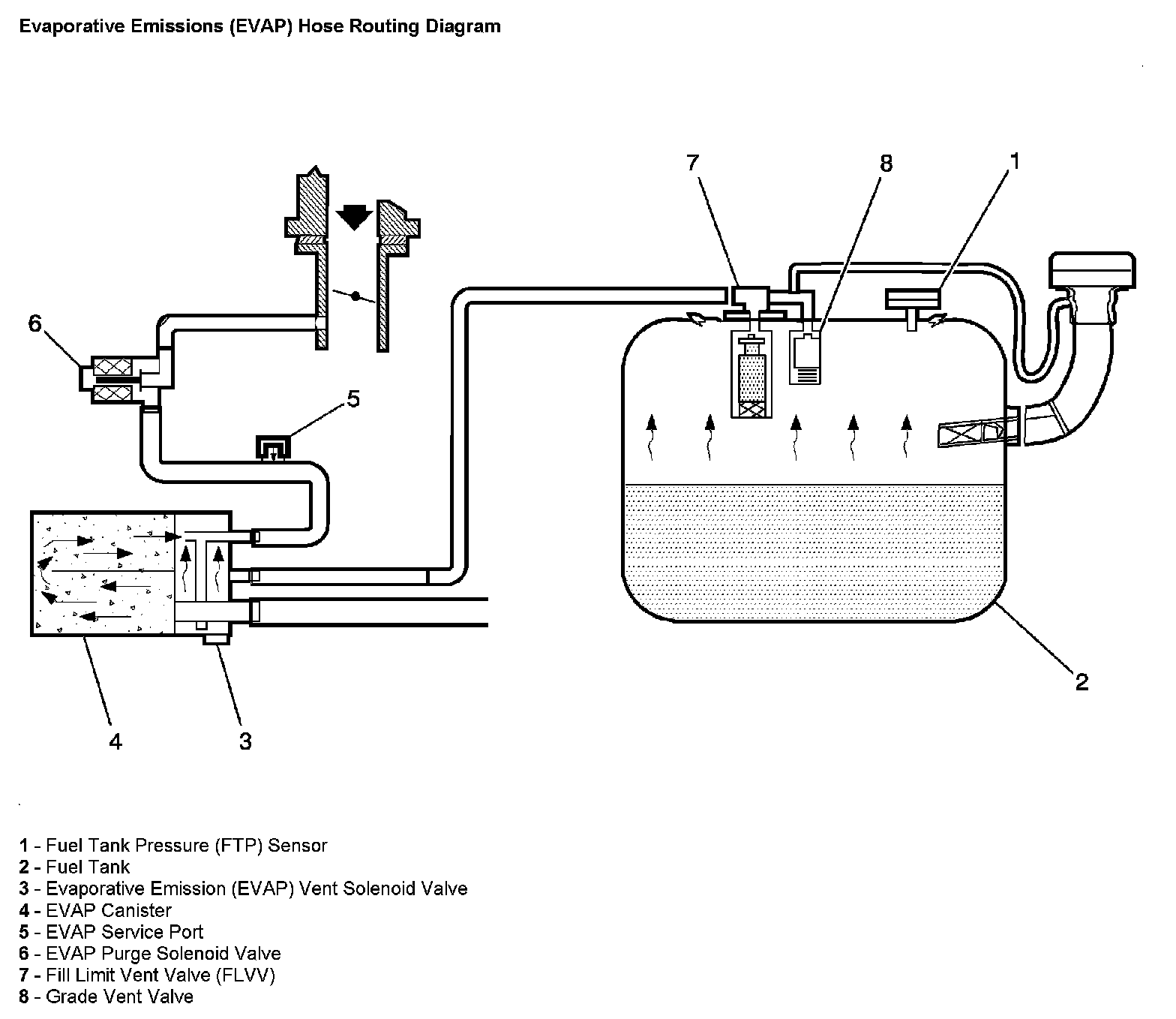

Evaporative Emissions (EVAP) Hose Routing Diagram

Evaporative Emissions (EVAP) Hose Routing Diagram:
