Turn Signal Flasher: Service and Repair

HAZARD AND TURN SIGNAL FLASHER REPLACEMENT

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) trim panel bezel.

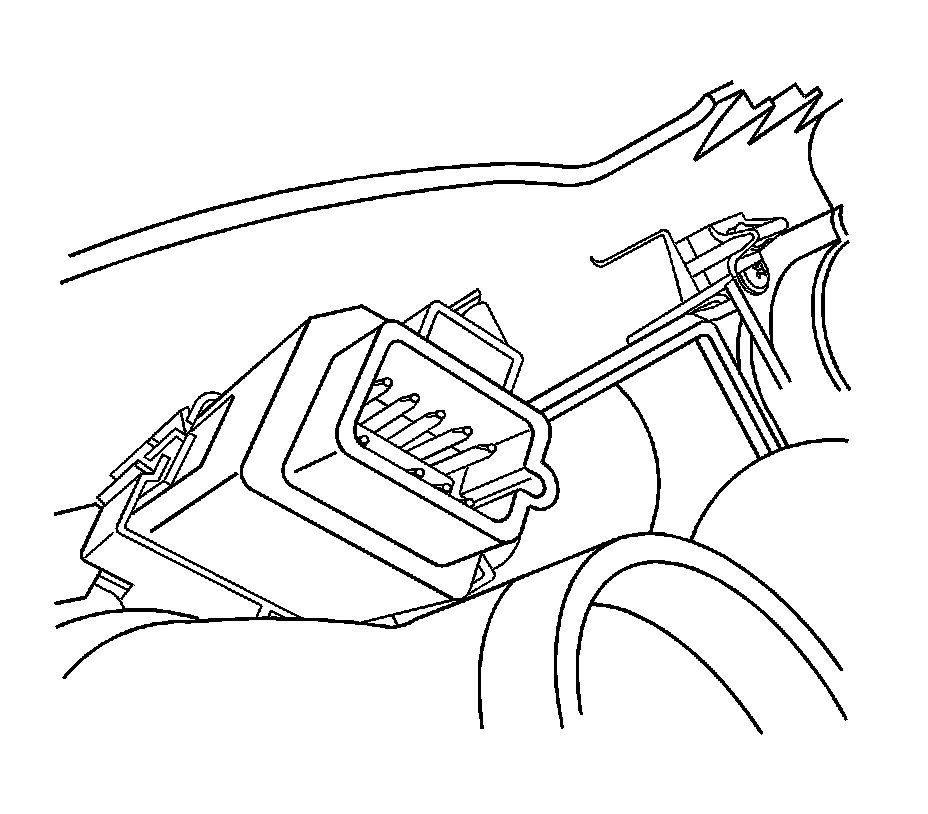

2. Remove the switch assembly fasteners and remove the switch assembly.

INSTALLATION PROCEDURE




1. Install the switch assembly on to the bezel and install the fasteners.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fasteners to 2.5 N.m (22 lb in).
2. Install the I/P trim panel bezel.
