Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Heating, Ventilation and Air Conditioning >> Odor Diagnosis

Odor Diagnosis

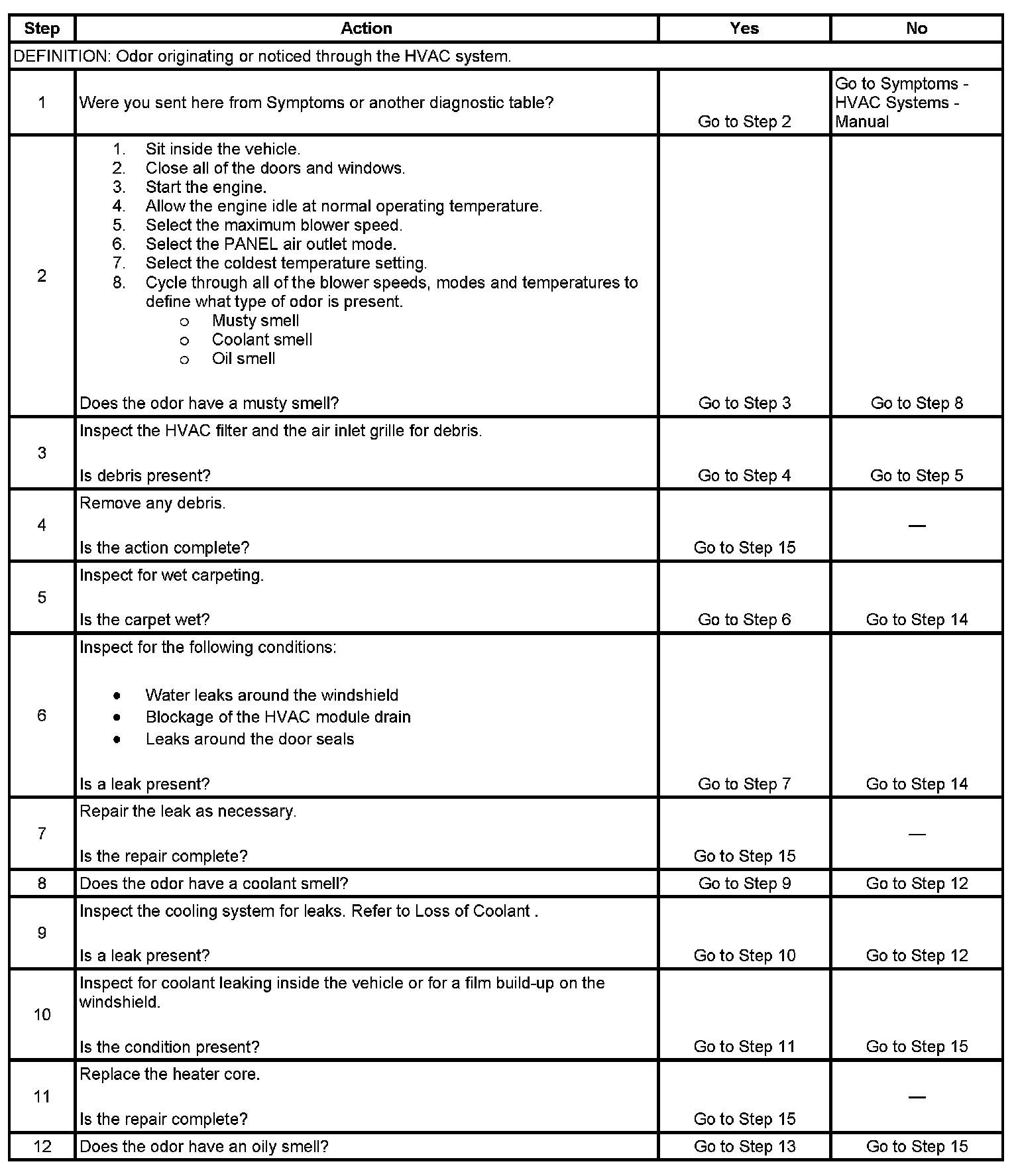

Step 1 - Step 12:



Step 13 - Step 15:
