Engine Support Fixture



Engine Support Fixture

^ Tools Required
- SA9105E Engine Support Fixture (3-Bar)
- J 43405 Engine Support Fixture Adapter

Installation Procedure

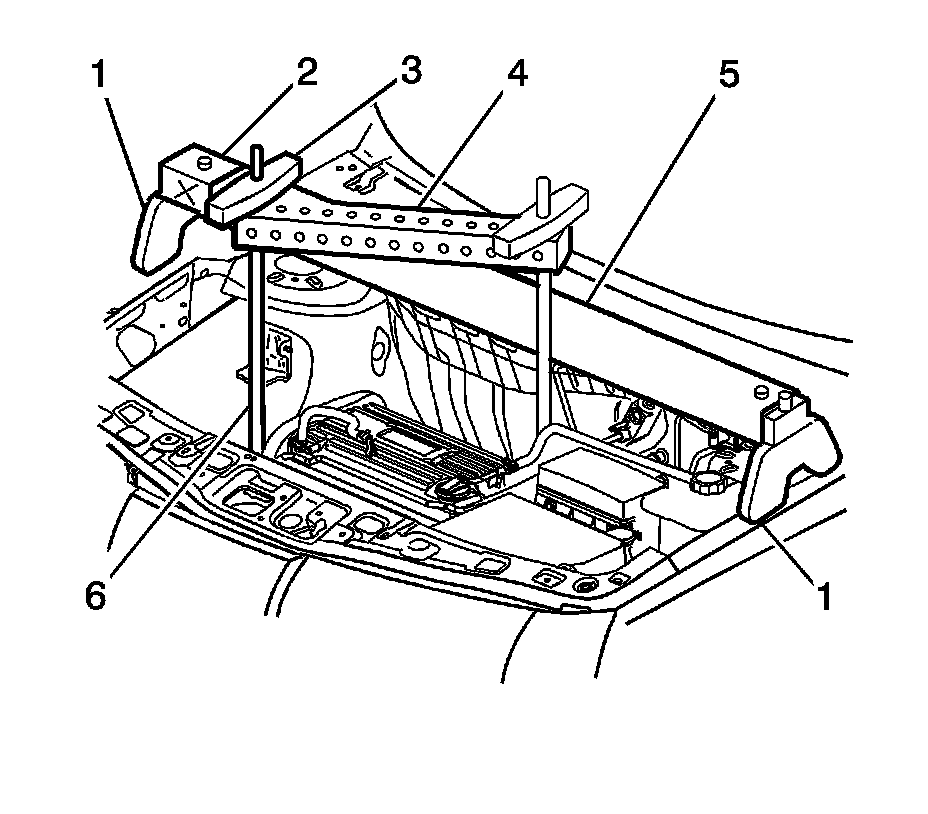

1. Install the SA9105E (2) to the vehicle.
2. Install the J 45122 (1) to the engine support fixture legs.
3. Install the SA9105E (4) to the engine support fixture long bar.
4. Install the J 43405 (5) to engine support crossbar.
5. Install the J 43405 (6) to the engine support fixture hooks.
