Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Harness >> Instrument Panel Views

Instrument Panel Views

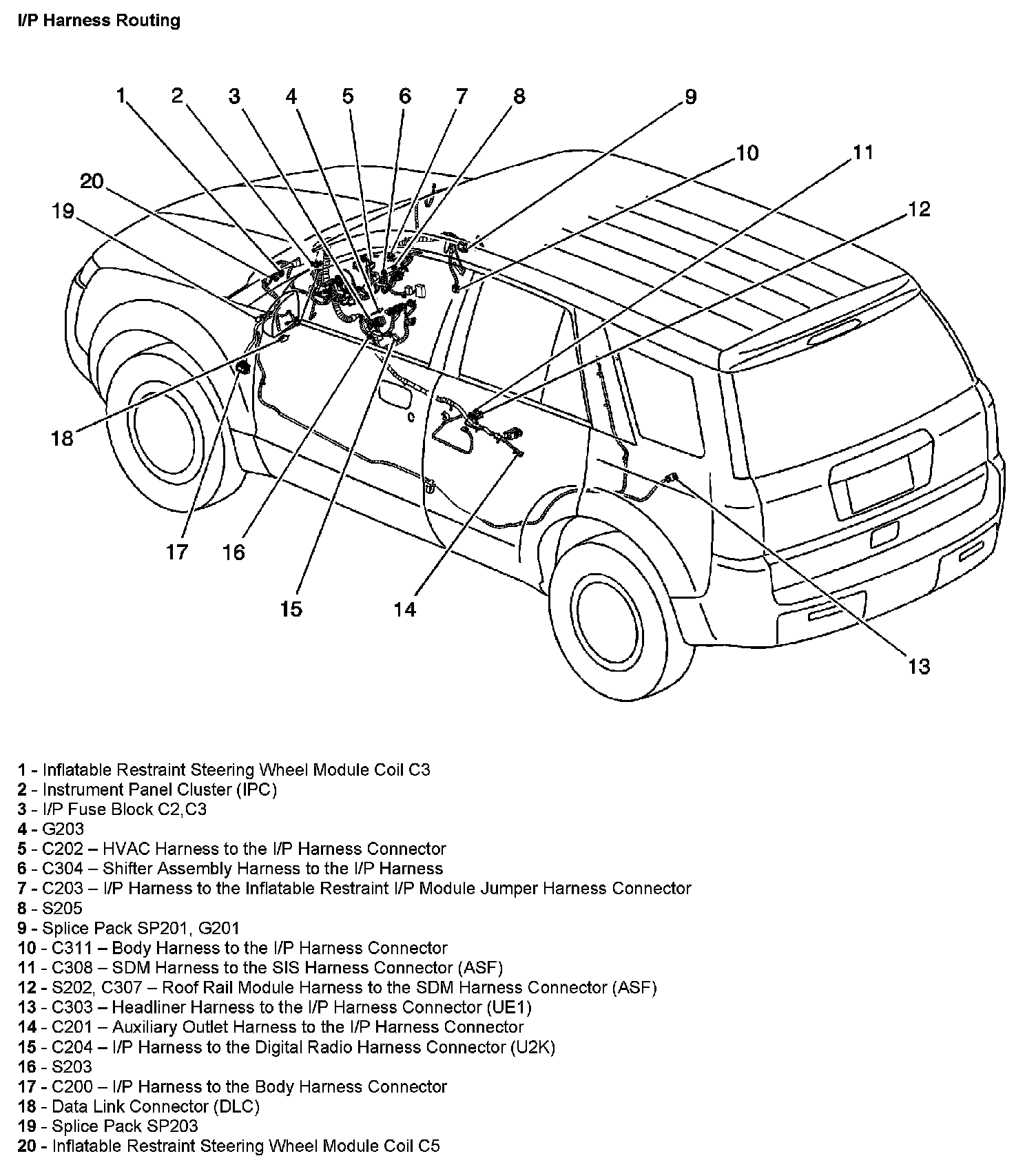

I/P Harness Routing:
