Checkball



Checkball





Important: Do not use a magnet in order to remove the checkballs. The magnet may magnetize the checkballs, and the checkballs may attract metallic particles.

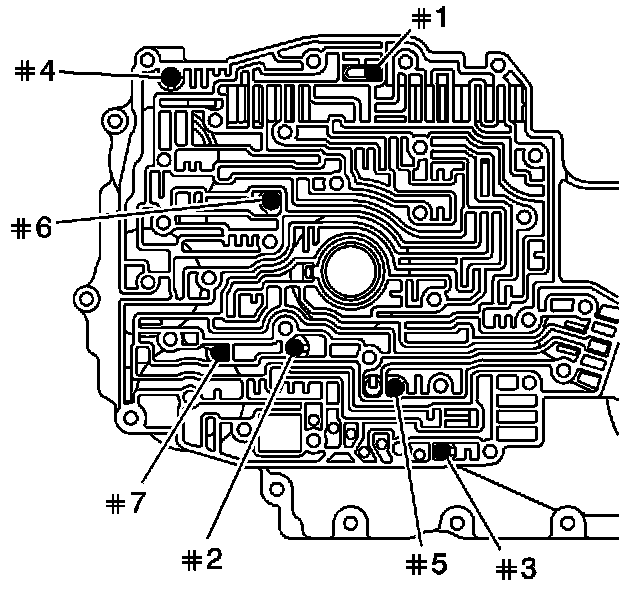

Seven checkballs in the channel plate.
