5AT - Automatic Transaxle



Automatic Transmission Controls Diagrams

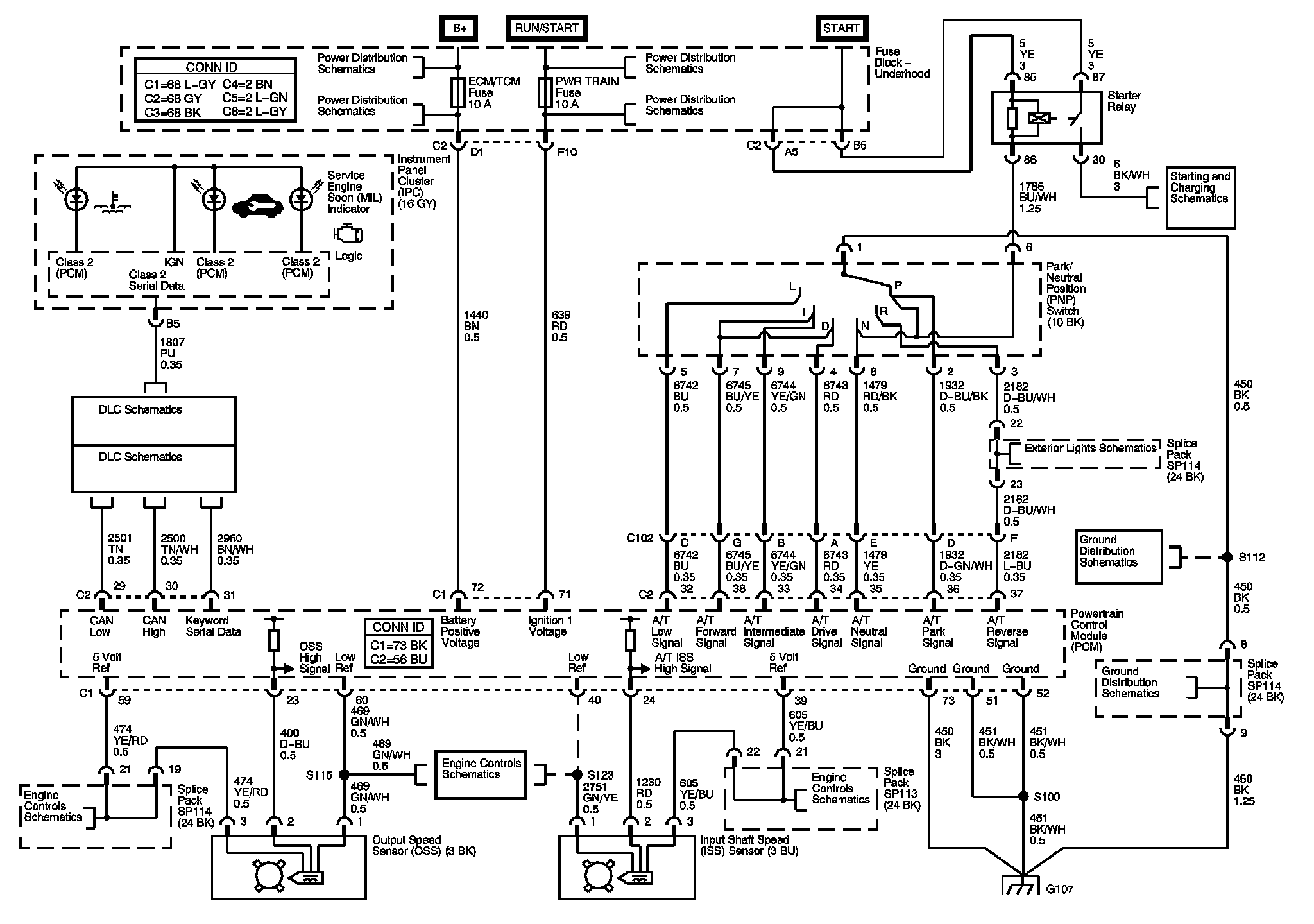

Automatic Transmission Controls Diagrams 1:

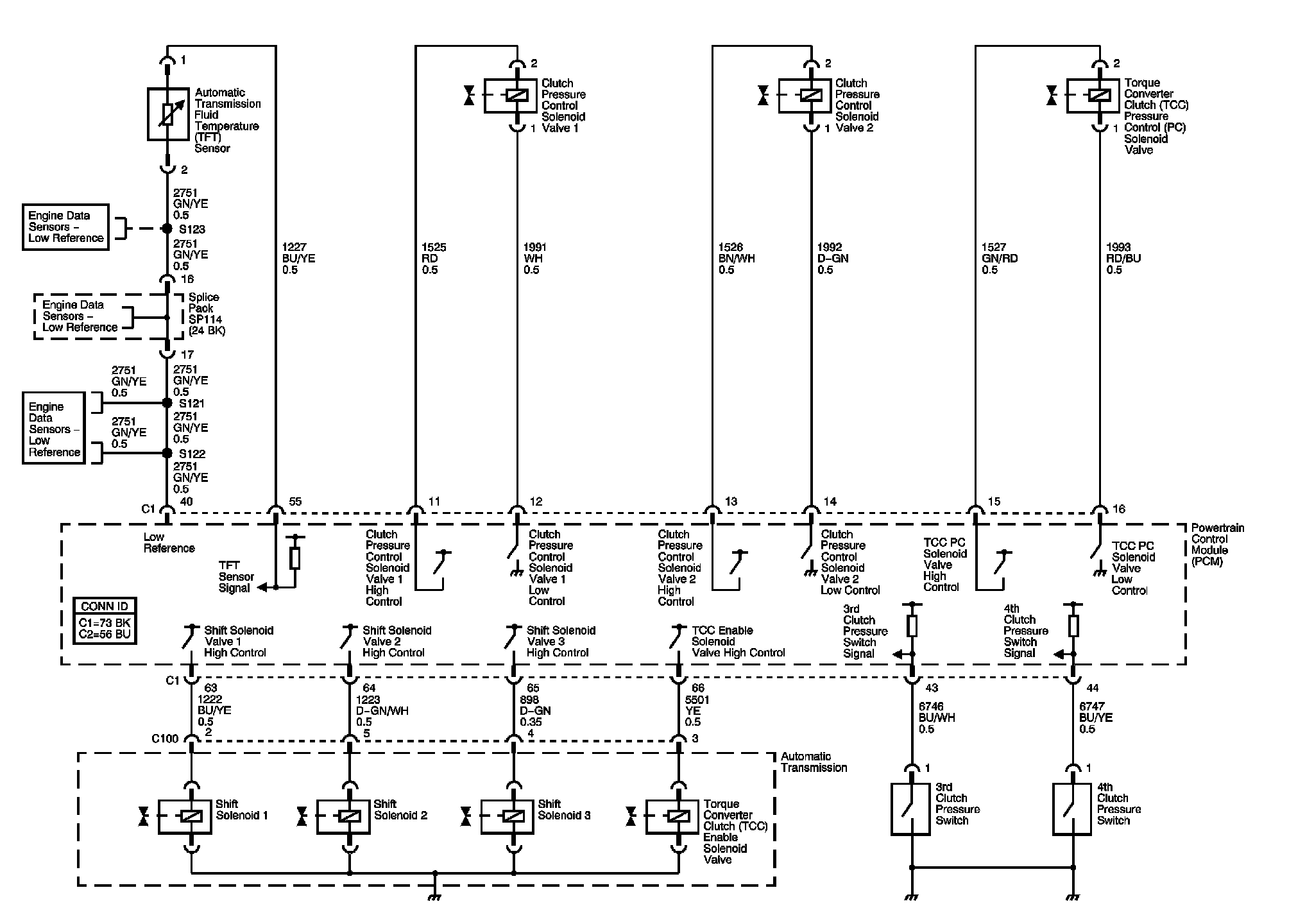

Automatic Transmission Controls Diagrams 2:
