4T45-E Automatic Transaxle



Automatic Transmission Controls Diagrams

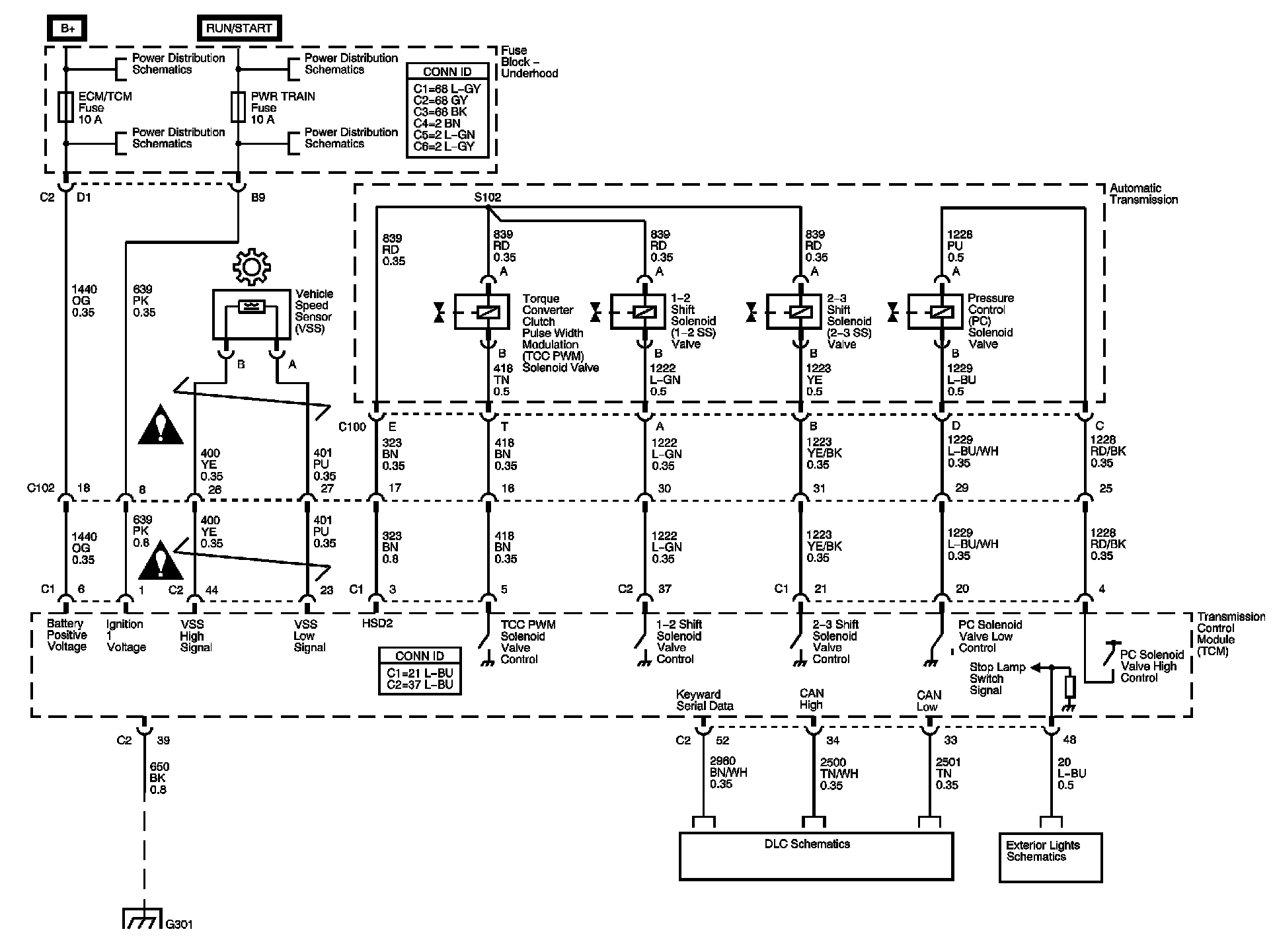

Automatic Transmission Controls Diagrams 1:

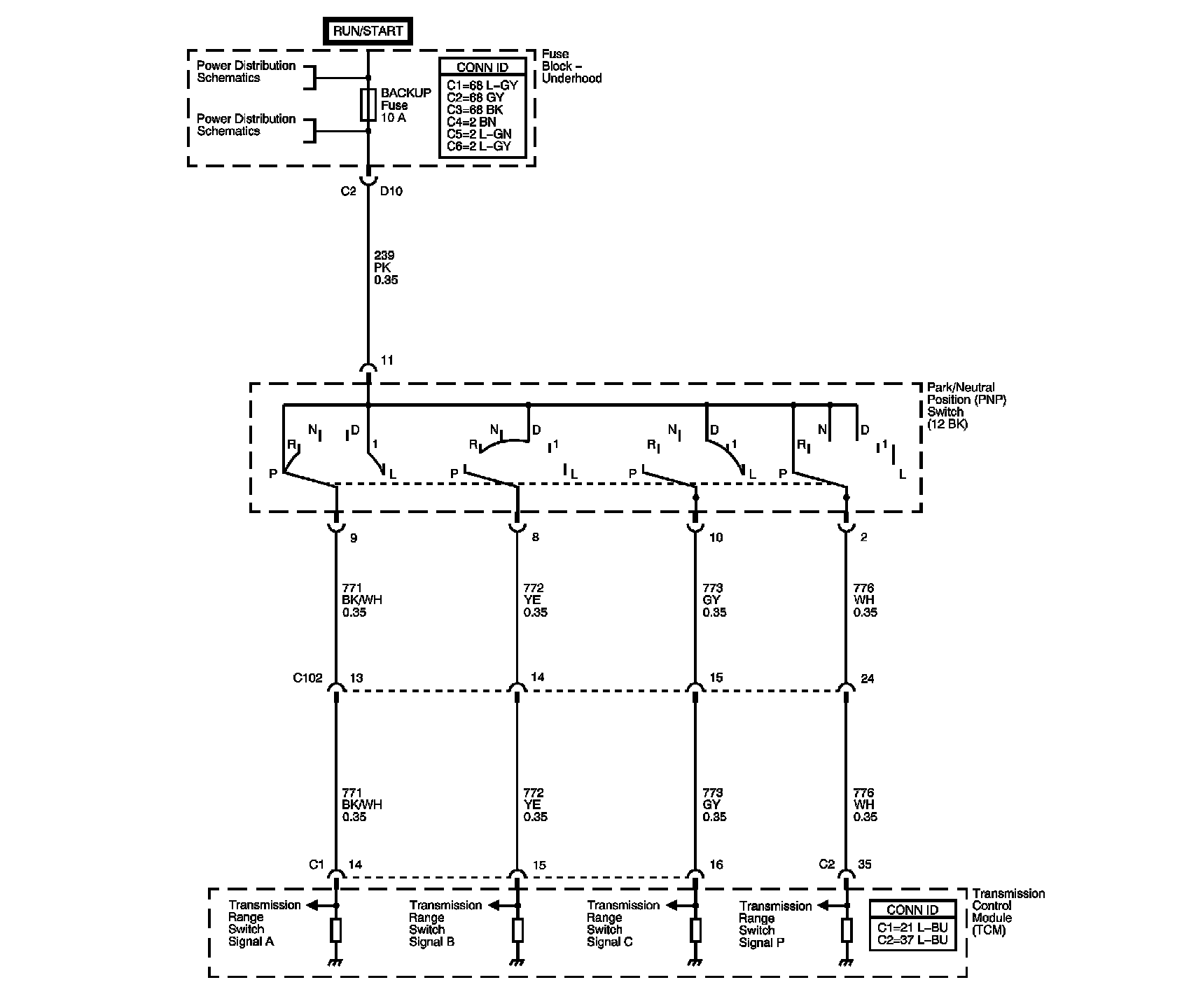

Automatic Transmission Controls Diagrams 2:

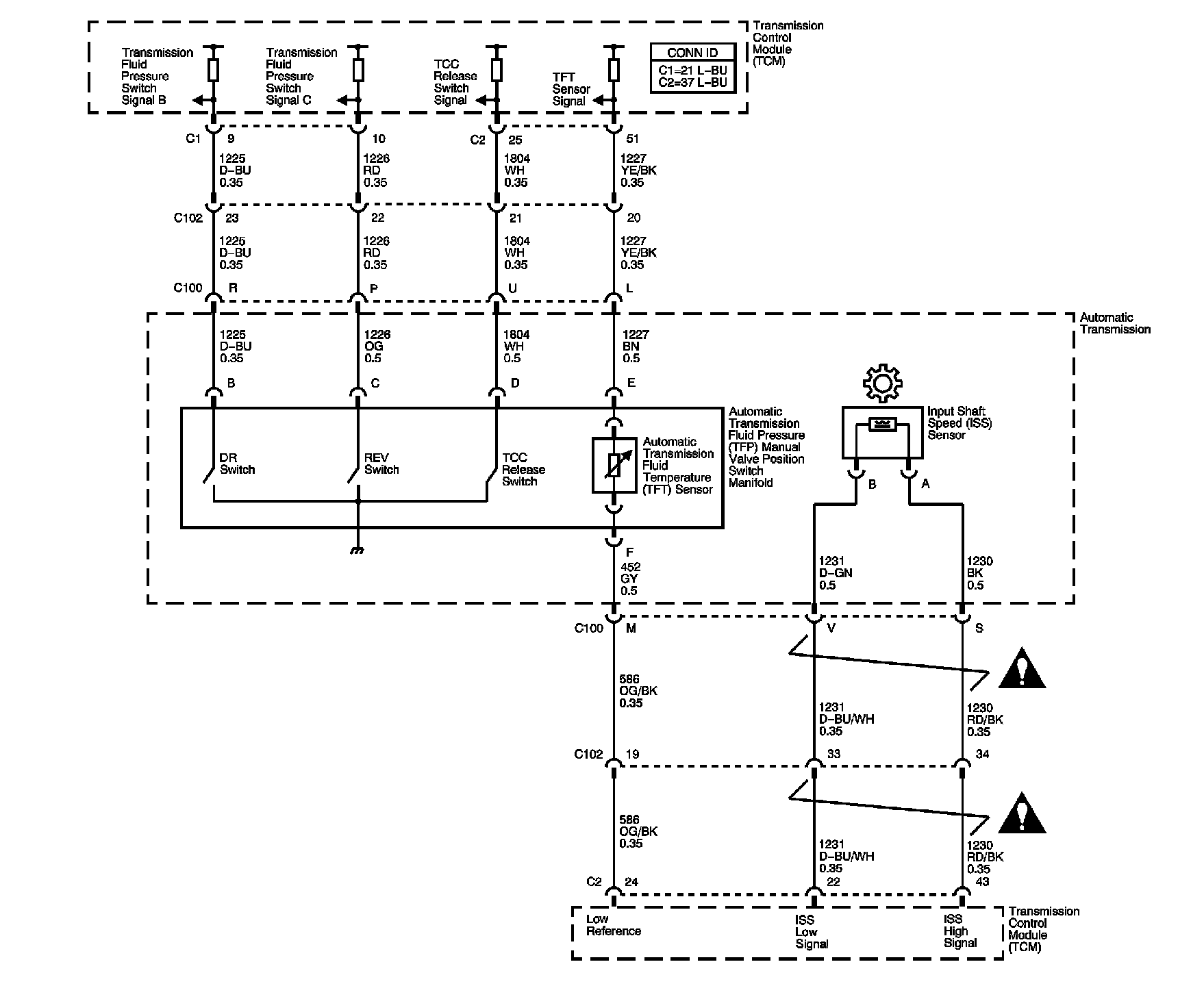

Automatic Transmission Controls Diagrams 3:
