Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Column

Steering Column

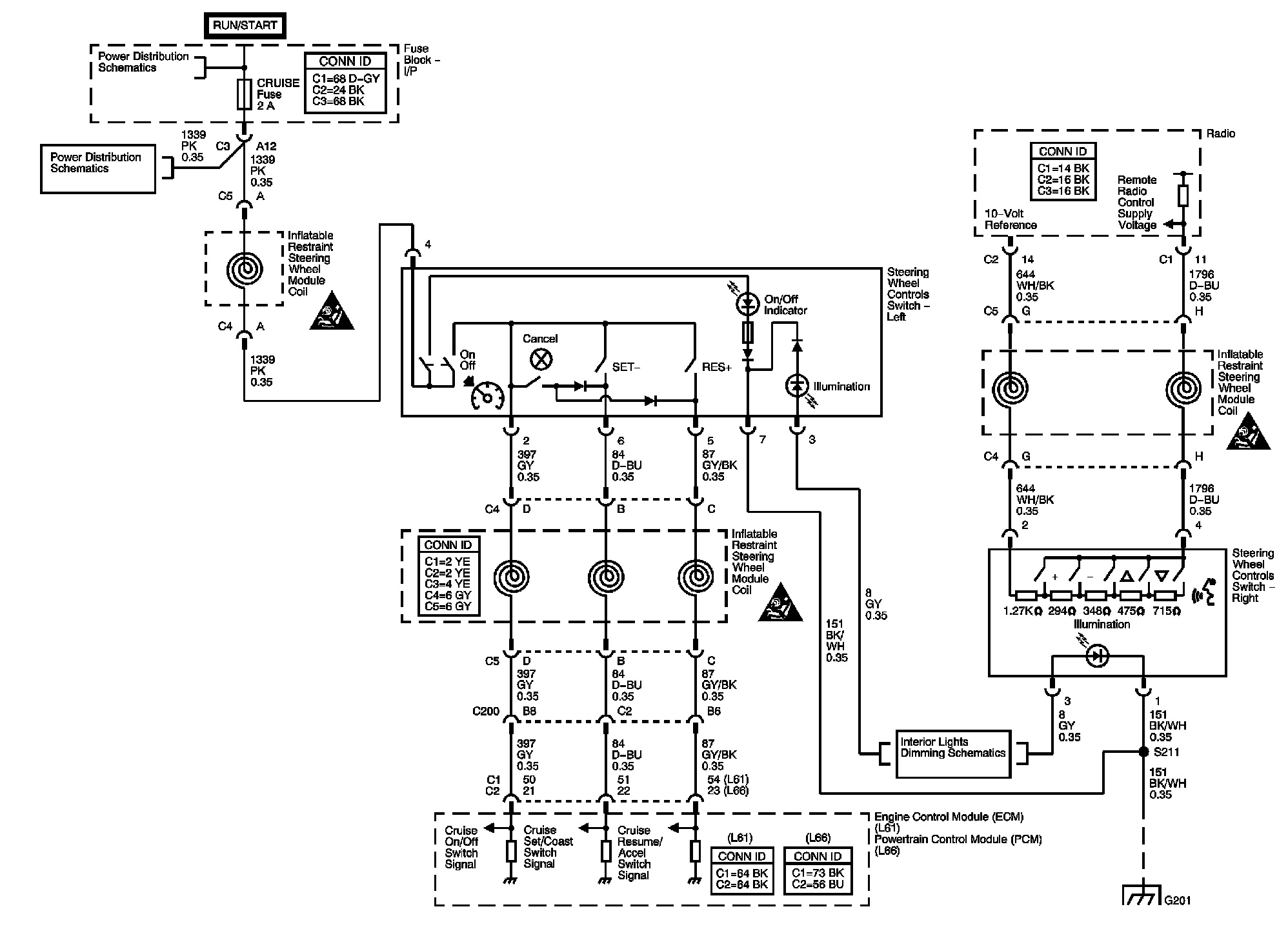

Steering Wheel Diagrams

Steering Wheel Diagrams:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
