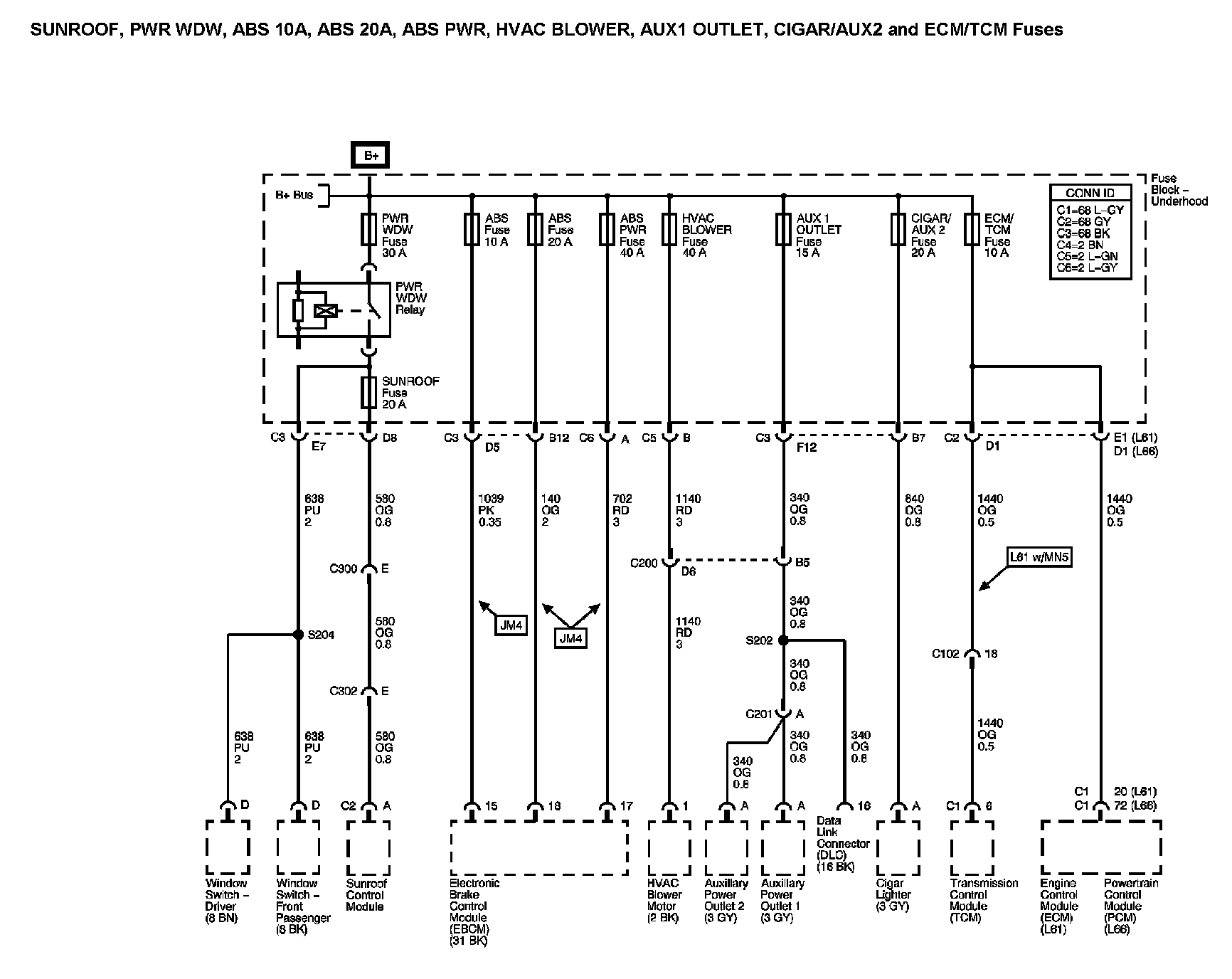

Power Distribution Diagram 2



Power Distribution Diagram 2:






Previous Diagram: Power Distribution Diagram 1

Next Diagram: Power Distribution Diagram 3

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
