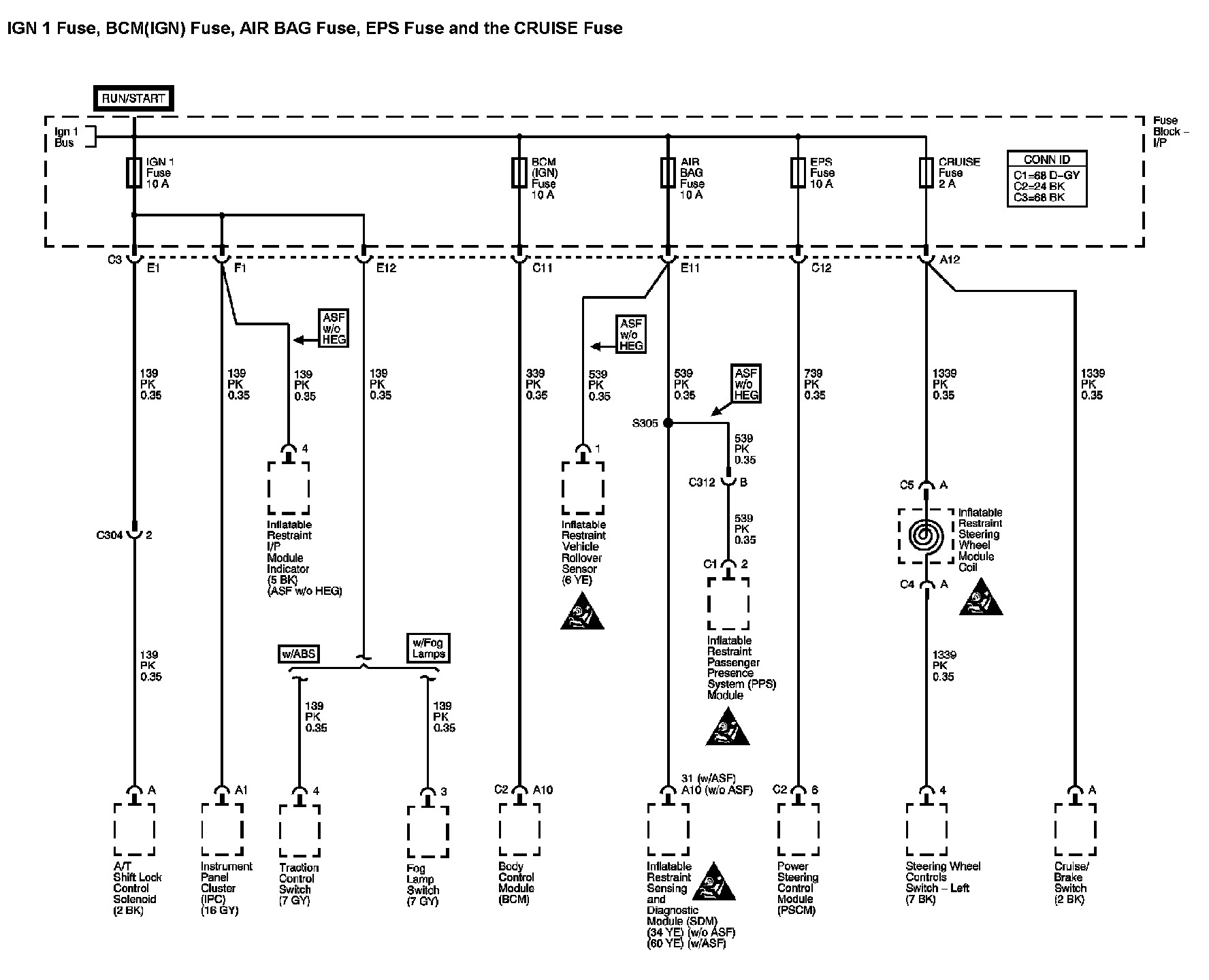

Power Distribution Diagram 11



Power Distribution Diagram 11:






Previous Diagram: Power Distribution Diagram 10

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
