G301



Ground Distribution Diagram 6 (1 Of 2):

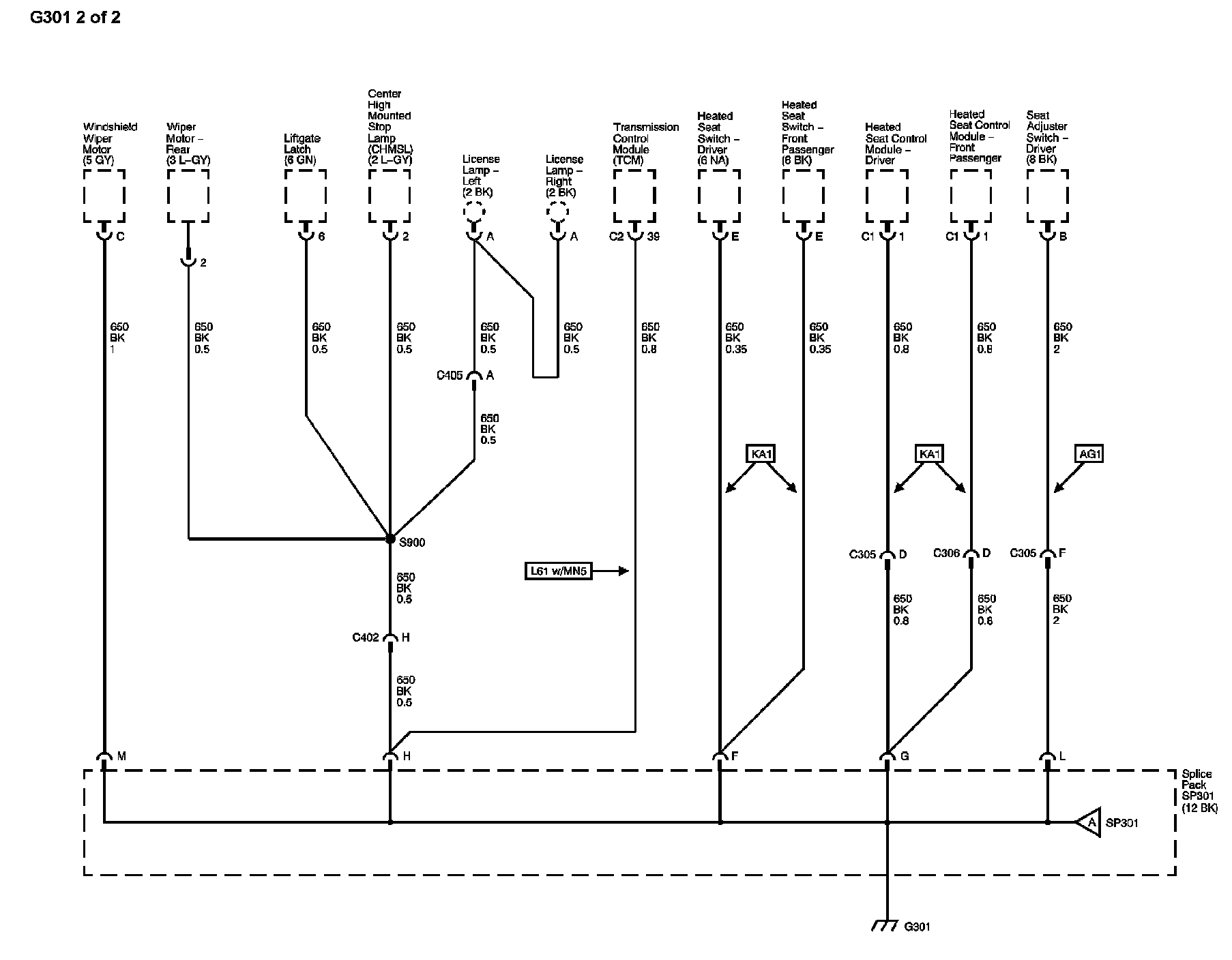

Ground Distribution Diagram 6 (2 Of 2):






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
