Driver Seat Diagrams

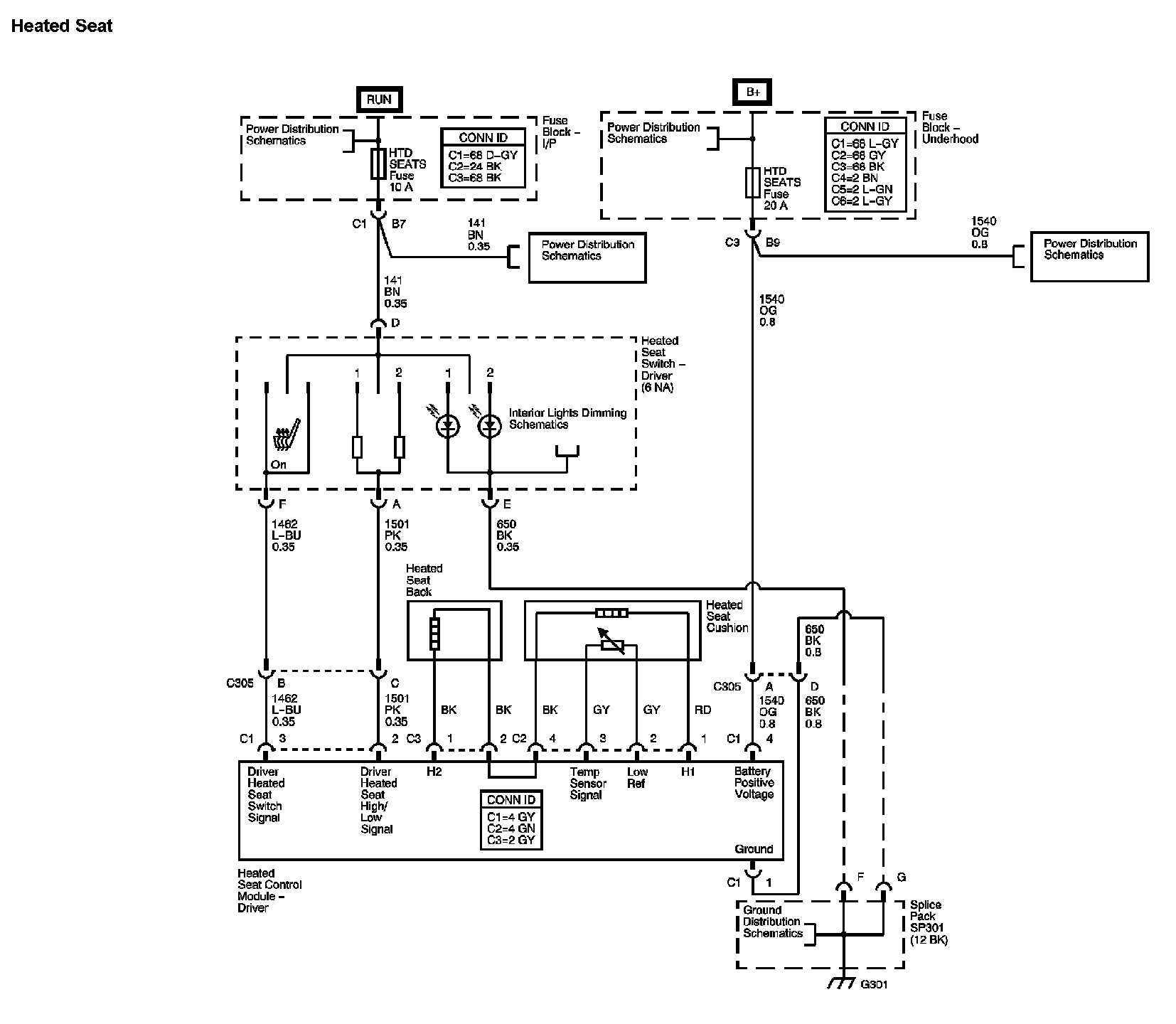

Driver Seat Diagram 1:




Driver Seat Diagram 2:






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
