Radio/Audio System Diagrams (With RPO Code U2K)

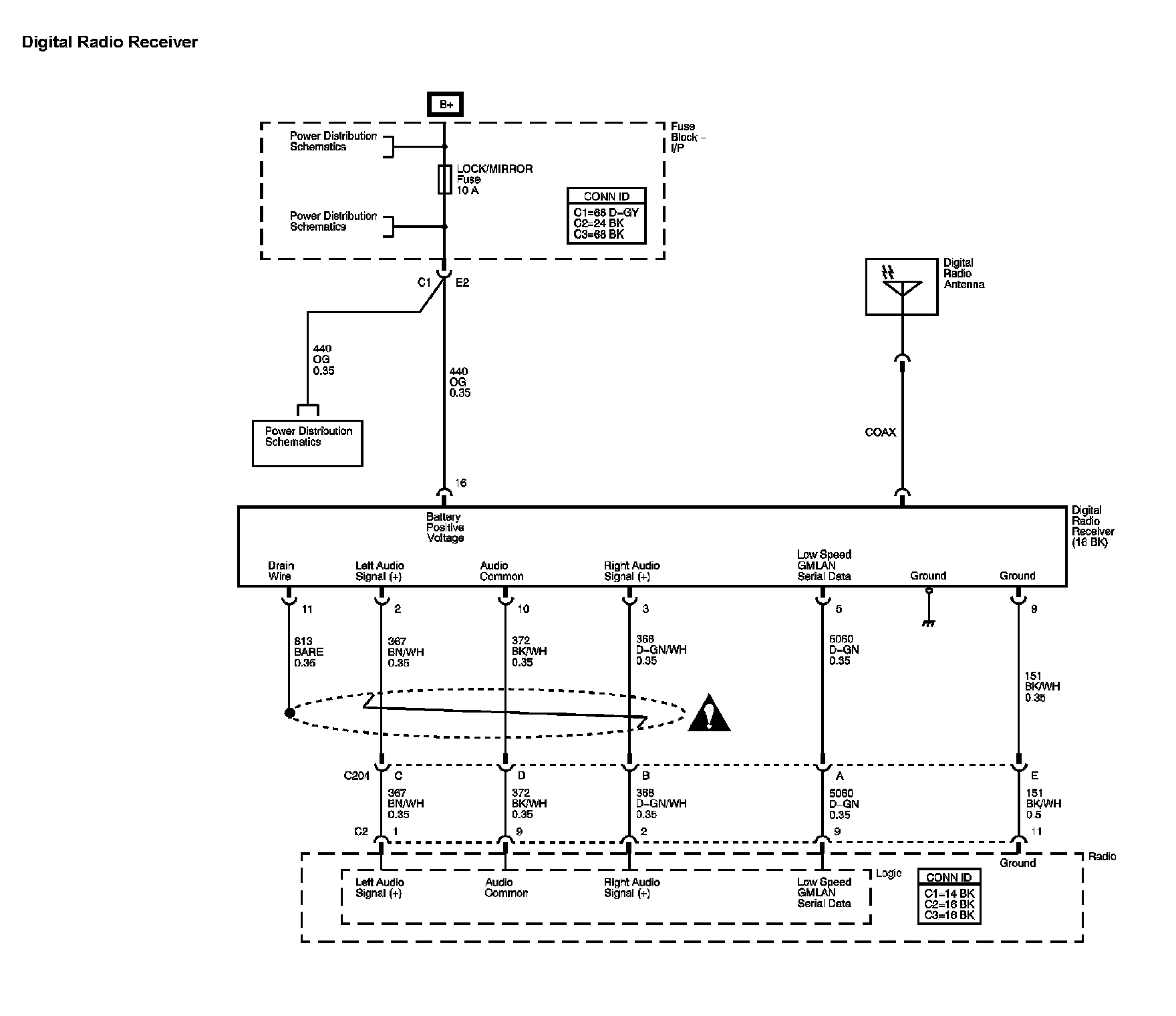

Radio/Audio System Diagram 1 (With RPO Code U2K):

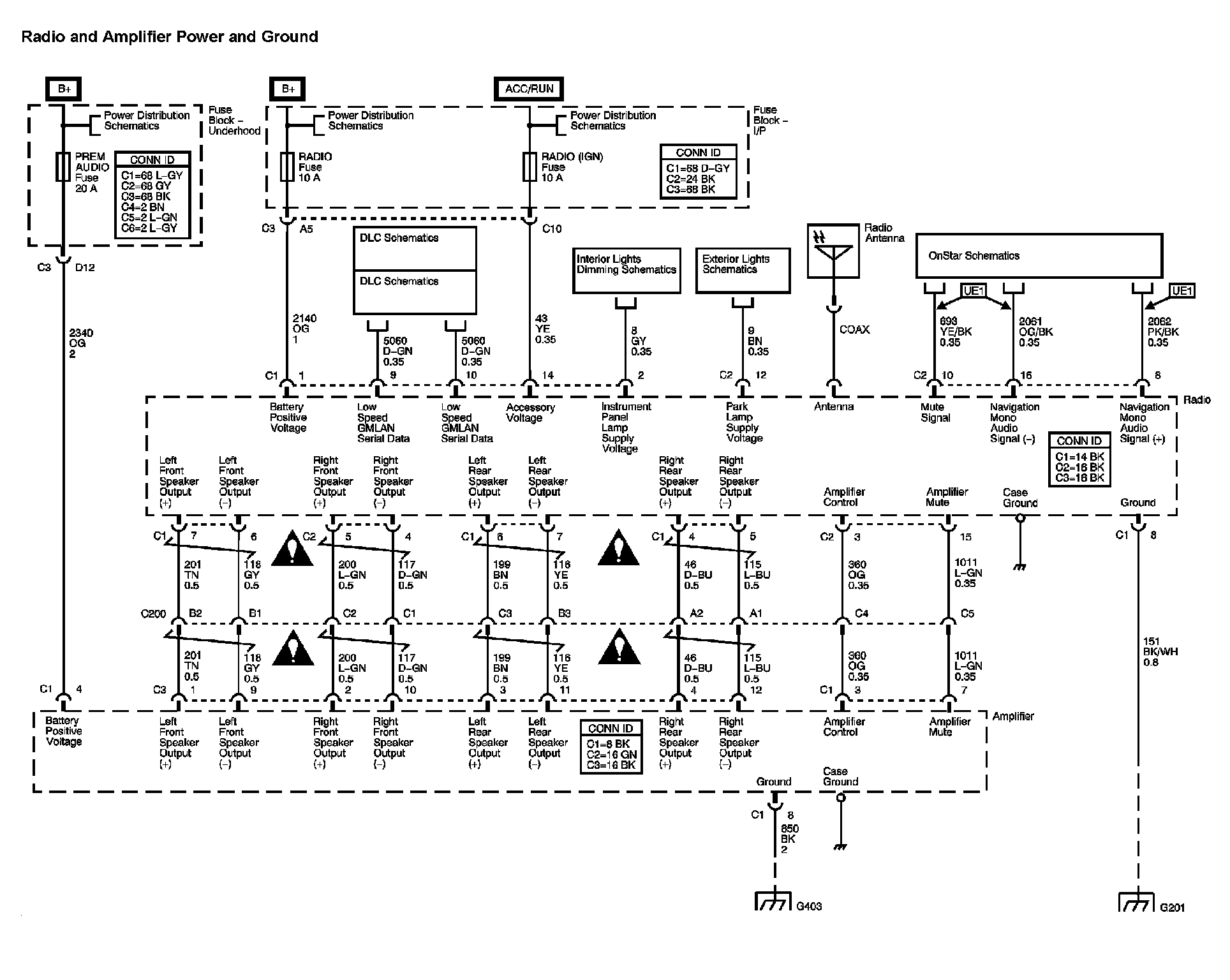

Radio/Audio System Diagram 2 (With RPO Code U2K):

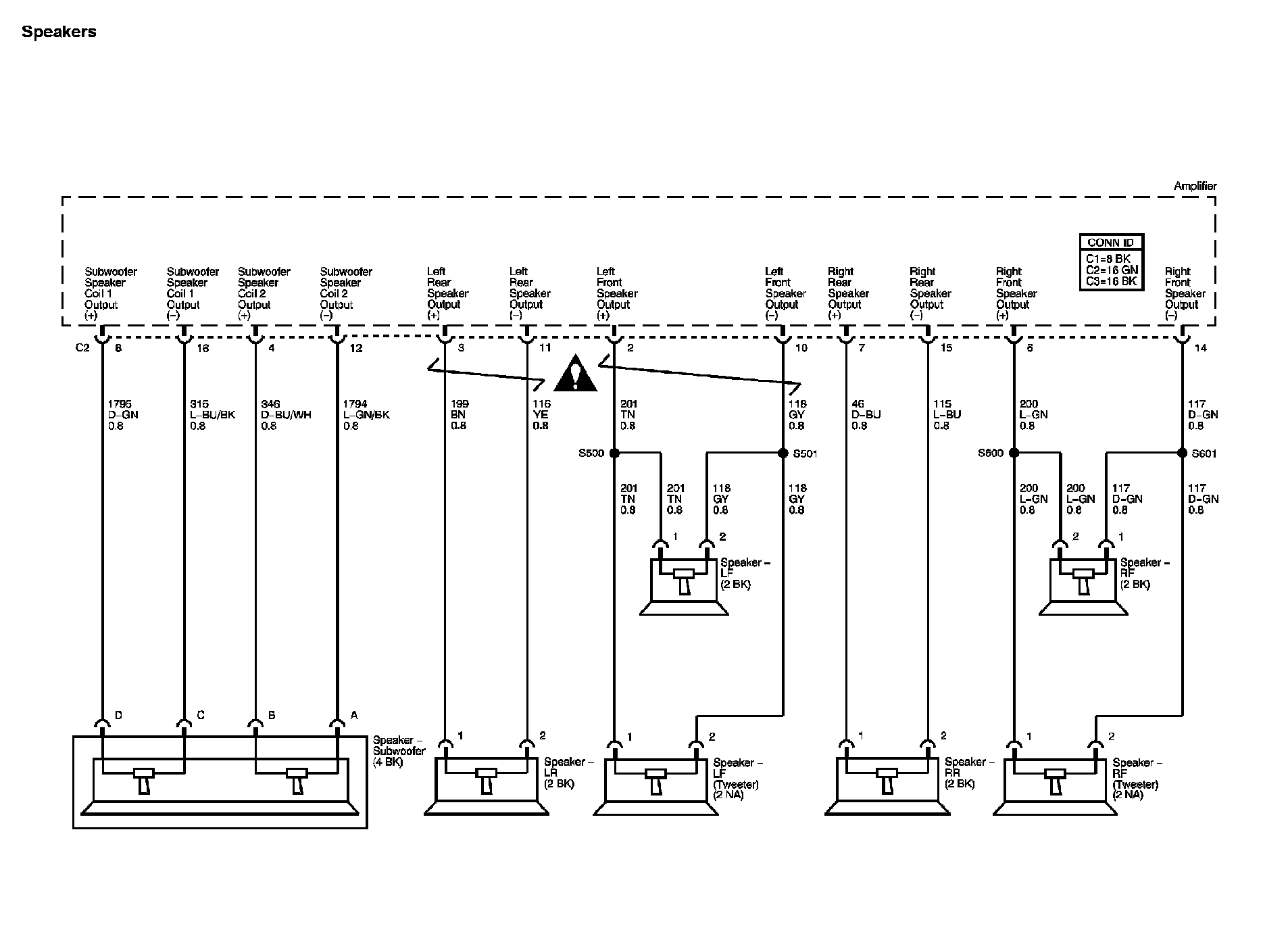

Radio/Audio System Diagram 3 (With RPO Code U2K):

Radio/Audio System Diagram 4 (With RPO Code U2K):

Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
