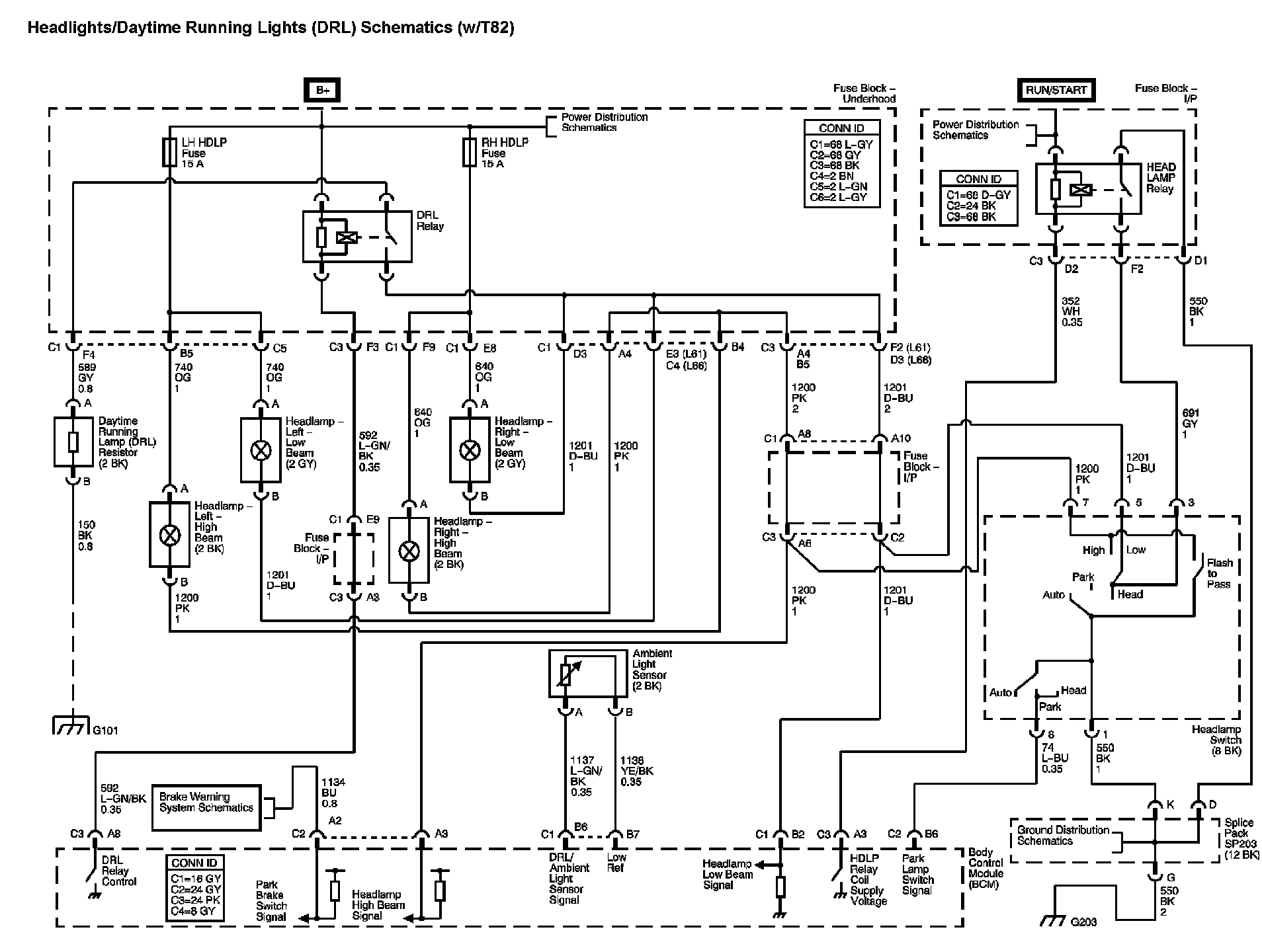

Headlights/Daytime Running Lights (DRL) Diagram (With RPO Code T82)



Headlights/Daytime Running Lights (DRL) Diagram (With RPO Code T82):






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
