System Diagram

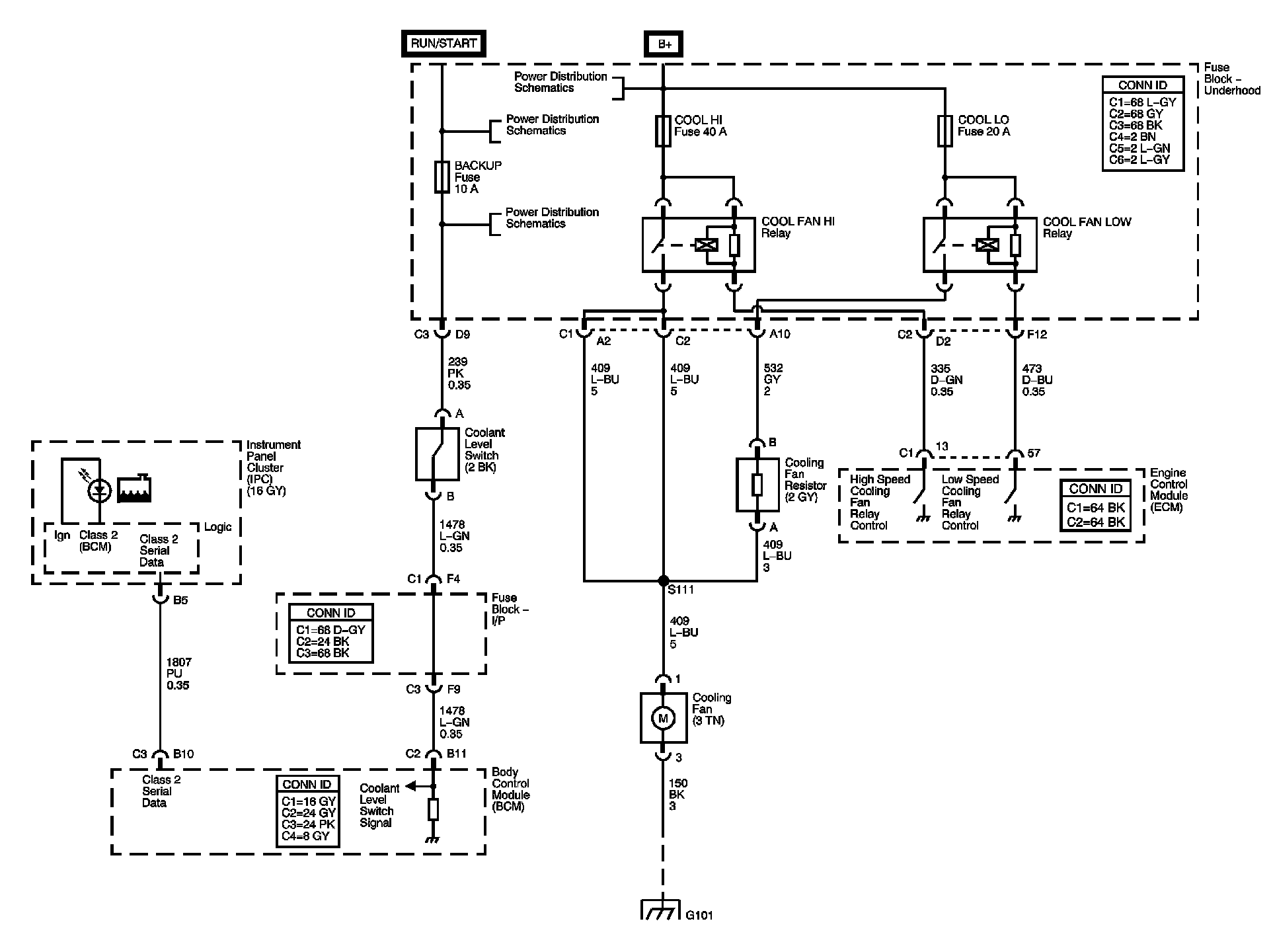

Engine Cooling Diagrams 1:

Location: The locations for the Connectors, Ground, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Anchors. Locations
