Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C400 - C499 >> C405

C405

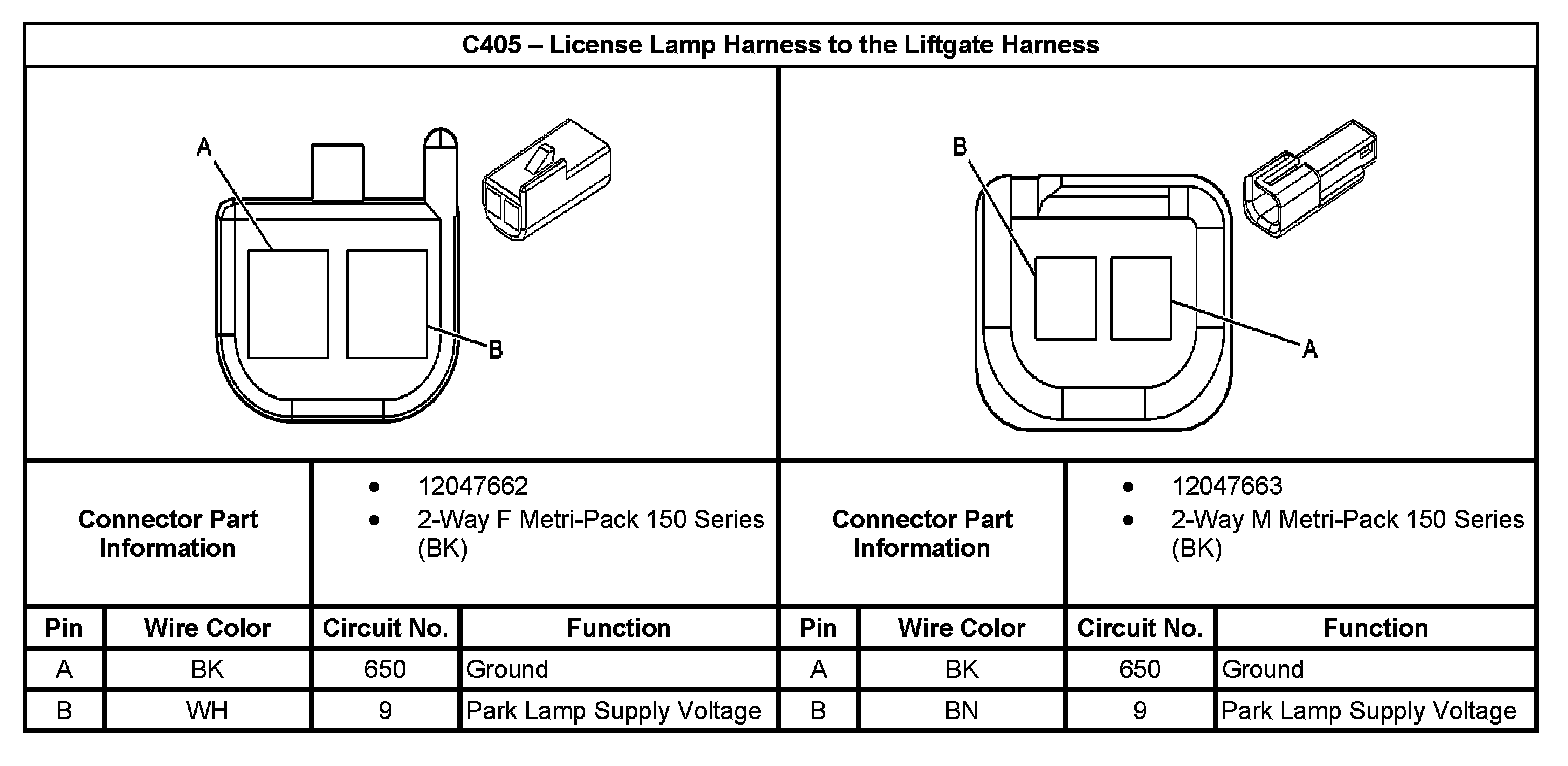

C405 - License Lamp Harness To The Liftgate Harness:
