Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C400 - C499 >> C400

C400

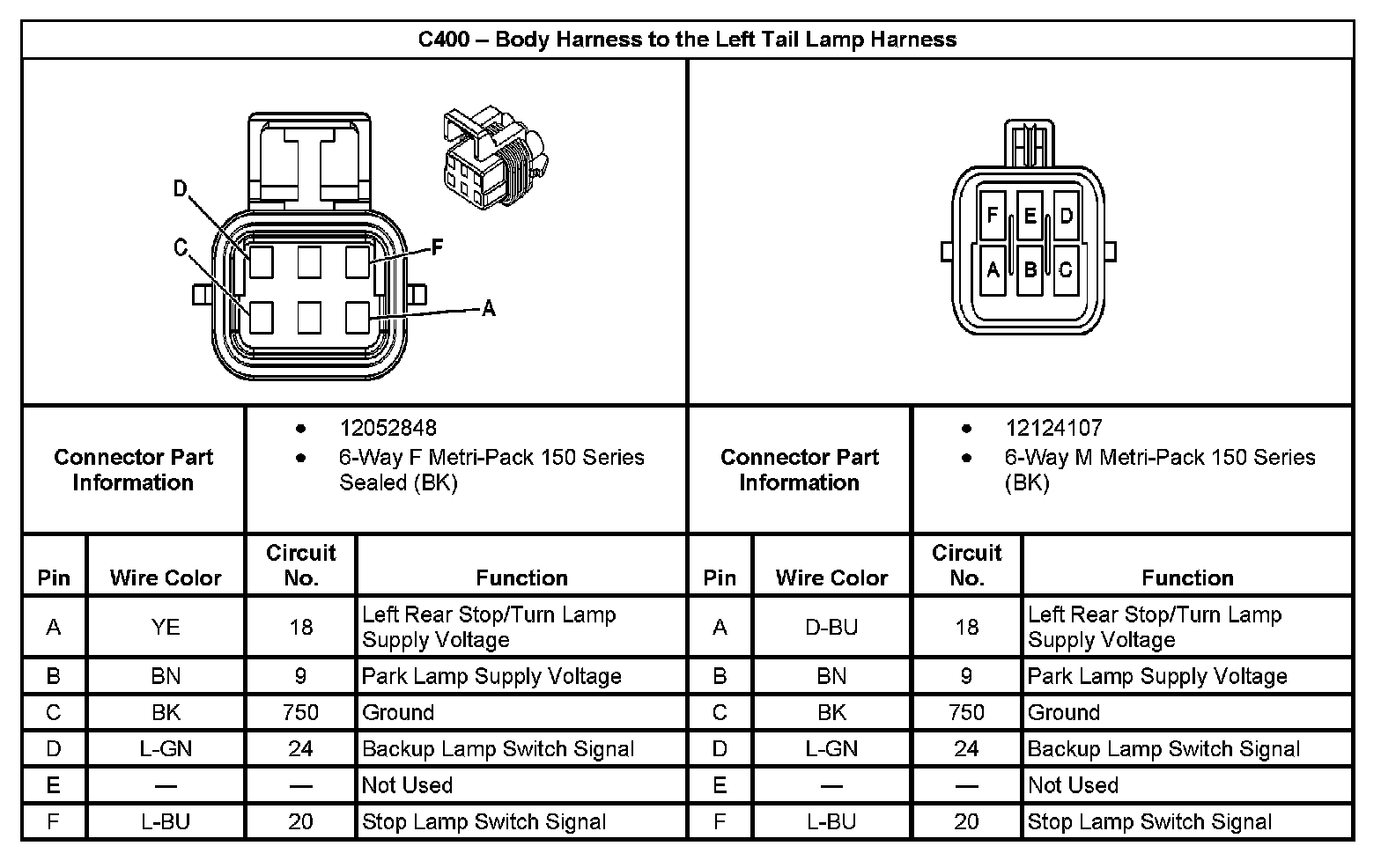

C400 - Body Harness To The Left Tail Lamp Harness:
