C312

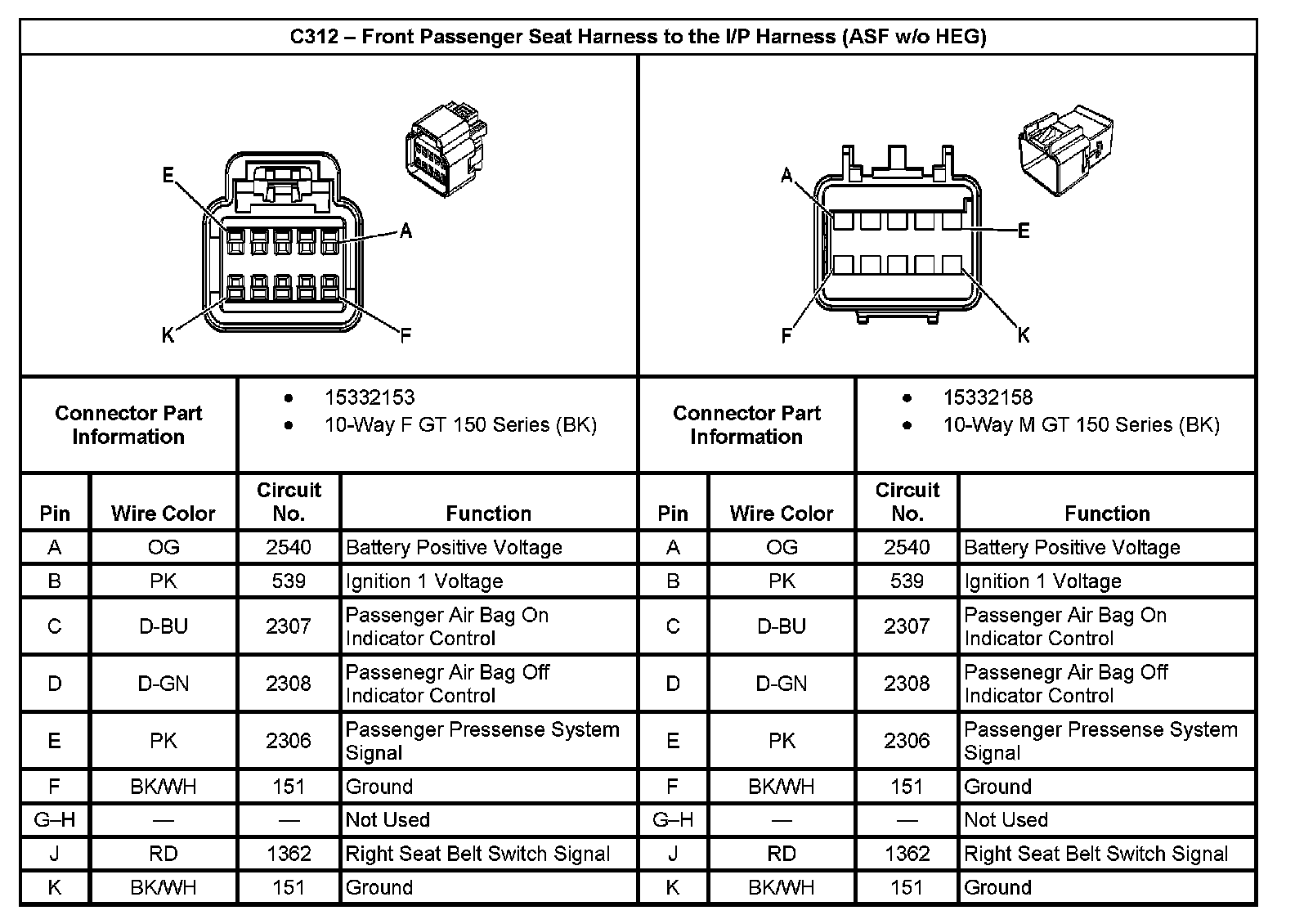

C312 - Front Passenger Seat Harness To The I/P Harness (With RPO Code ASF Without RPO Code HEG):
