Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C300 - C399 >> C310

C310

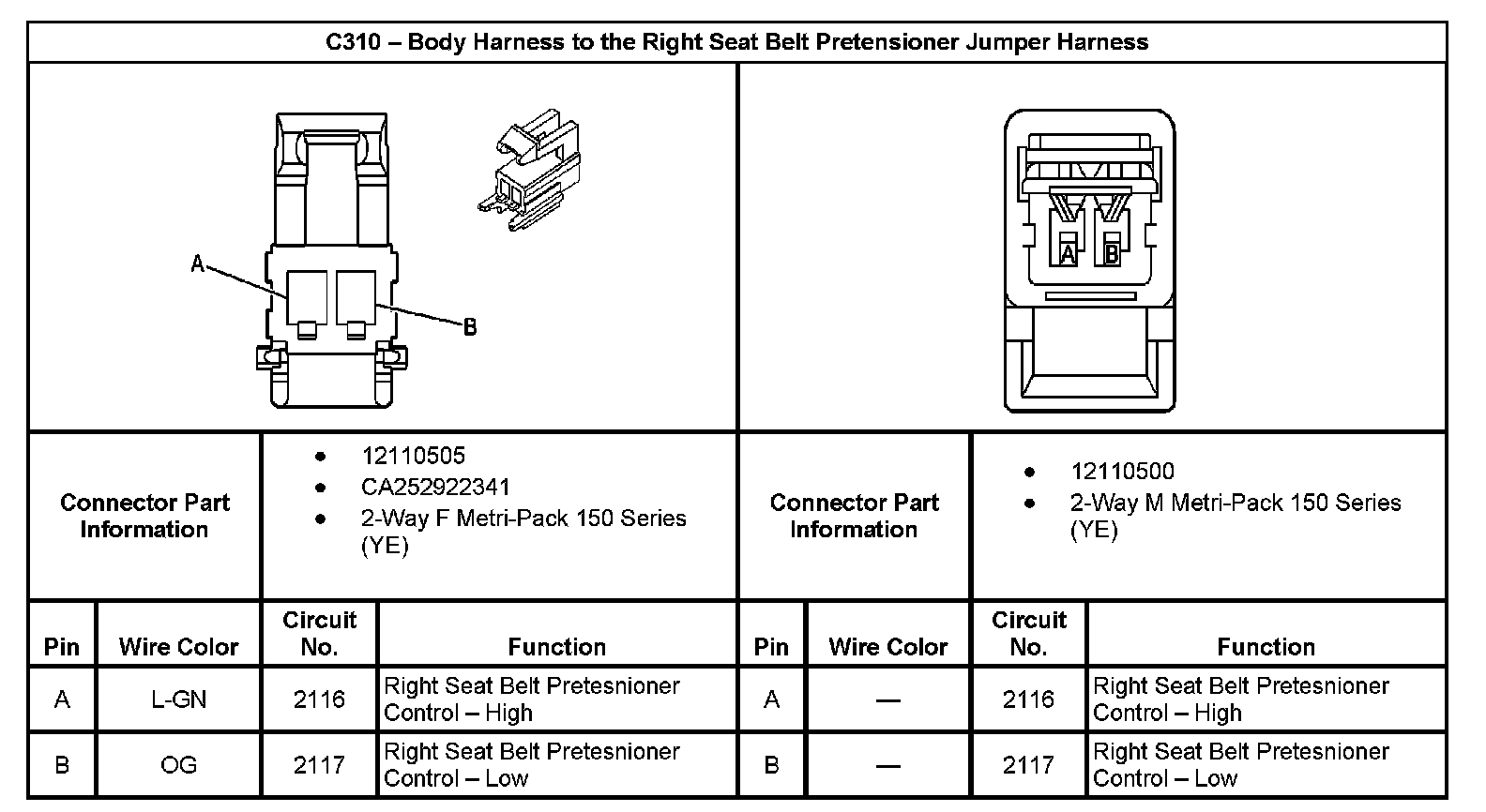

C310 - Body Harness To The Right Seat Belt Pretensioner Jumper Harness:
