Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C300 - C399 >> C303

C303

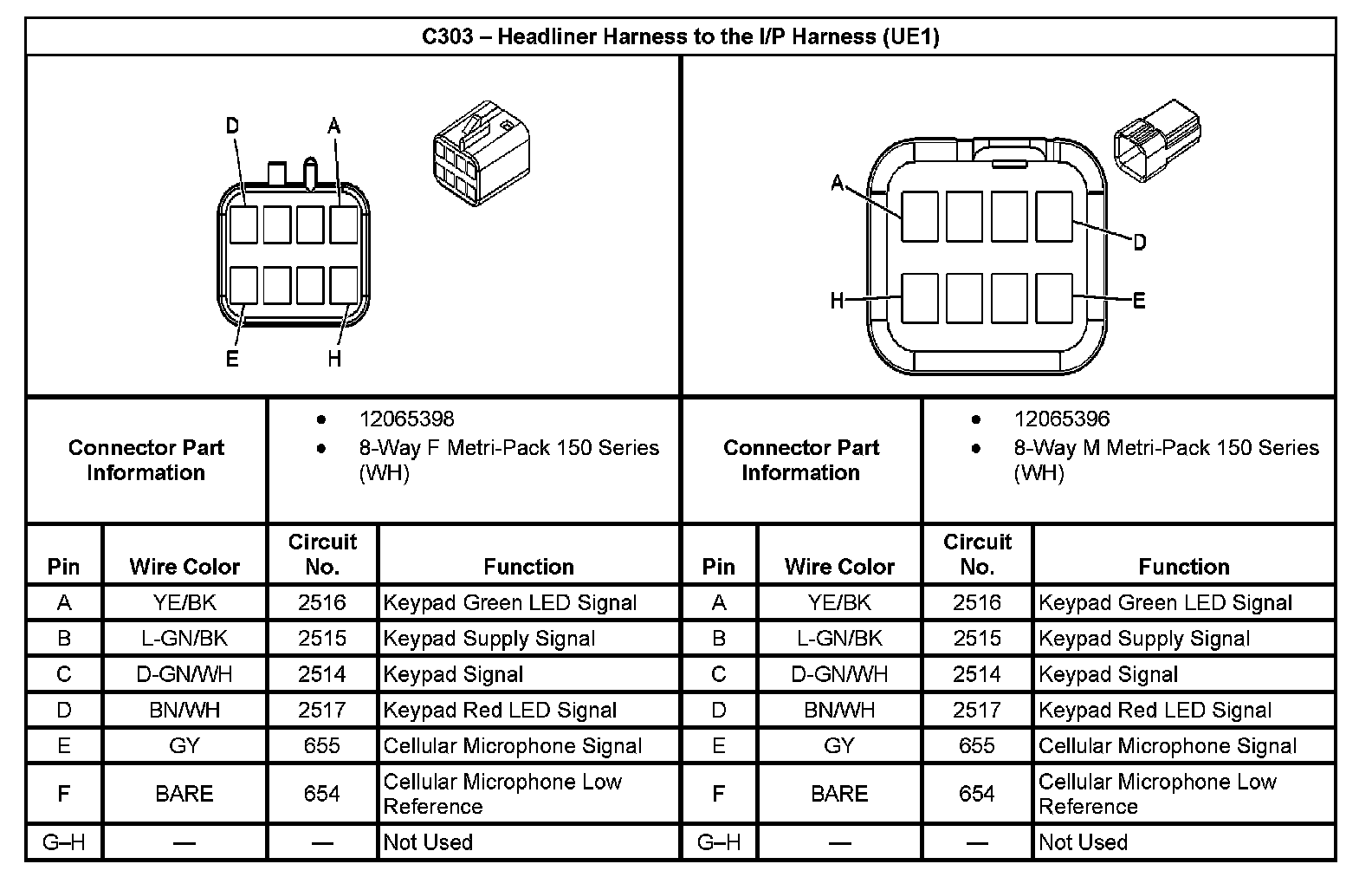

C303 - Headliner Harness To The I/P Harness (With RPO Code UE1):
