Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C300 - C399 >> C302

C302

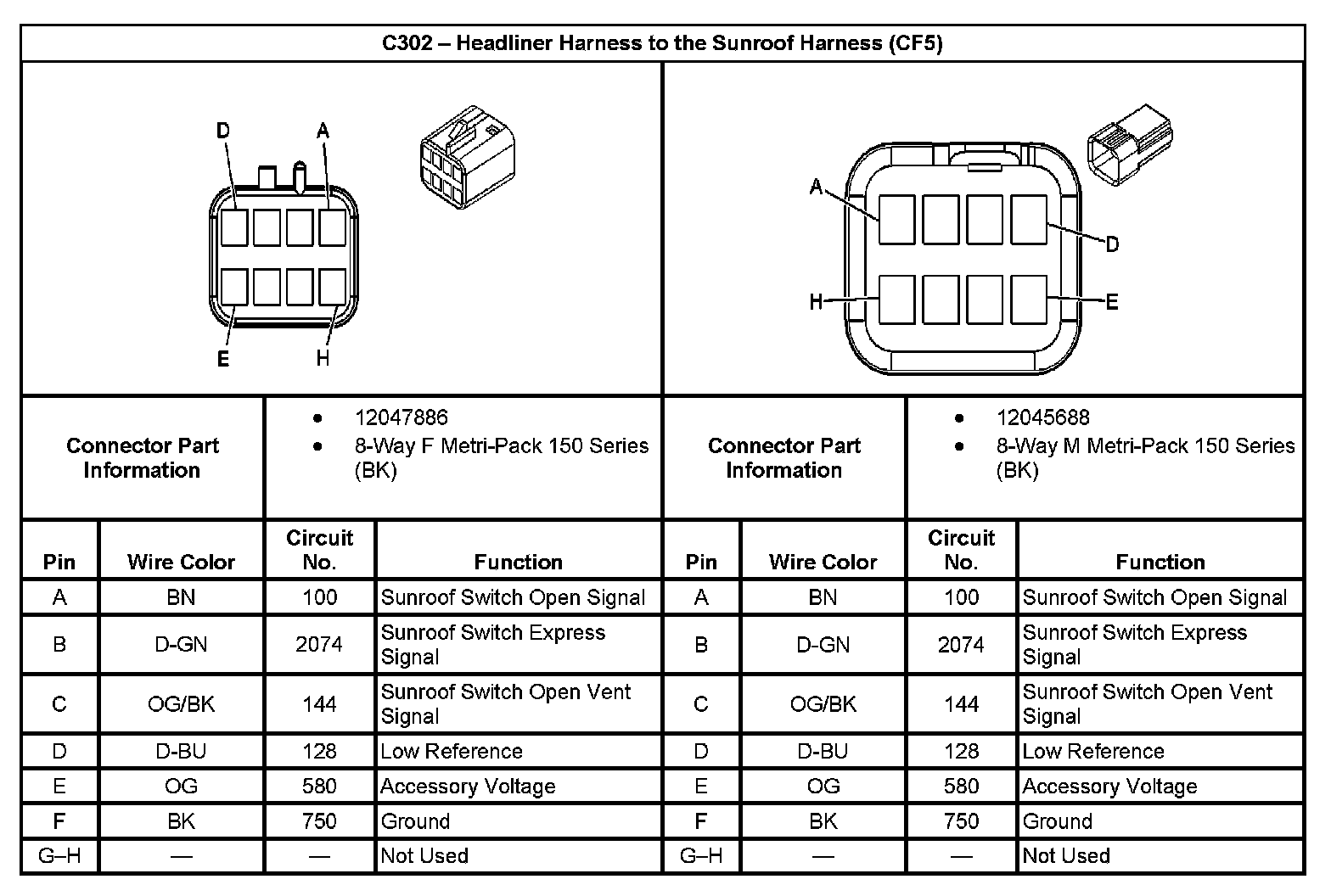

C302 - Headliner Harness To The Sunroof Harness (With RPO Code CF5):
