Home >> Saturn >> 2006 >> VUE 2WD L4-2.2L VIN D >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C200 - C299 >> C204

C204

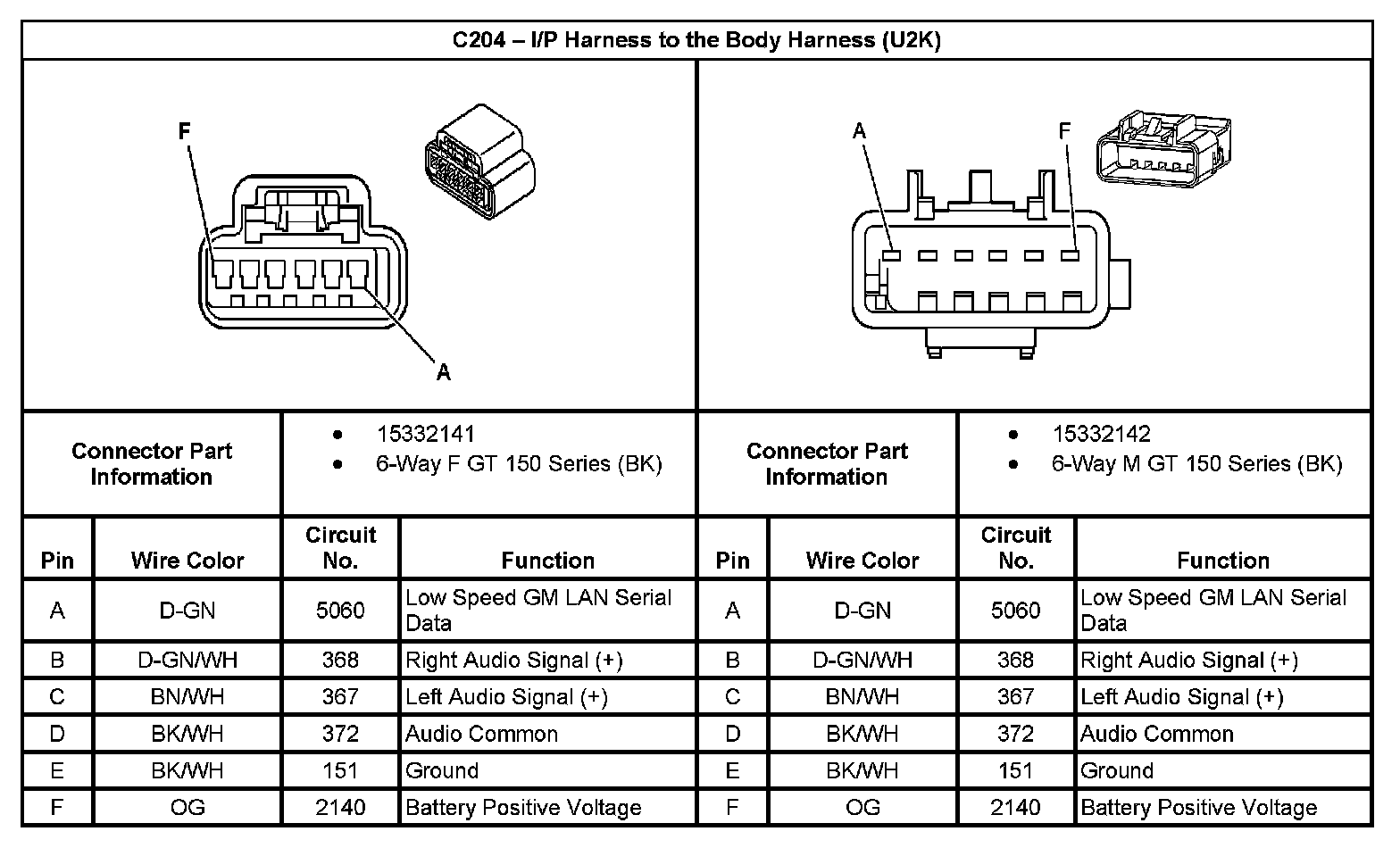

C204 - I/P Harness To The Body Harness (With RPO Code U2K):
